| Specifications | : | ASTM A387 / ASME SA387 |
| Thickness | : | 1mm-300mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, 4050mm etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, 12000mm, 15000mm etc |
| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR) |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| Alloy Steel Gr 5 | 0.15 max | 0.30-0.60 | 0.5 max | 0.035 max | 0.030 max | 4.0 – 6.0 | 0.45 – 0.65 | – | – |
| A387 / SA387 Grade 5 | Class 1 | Class 2 |
| Tensile Strength (ksi) | 60-85 | 75-100 |
| Tensile Strength (MPa) | 415-585 | 515-690 |
| Yield Strength (ksi) | 30 | 45 |
| Yield Strength (MPa) | 205 | 310 |
| Elongation in 50mm (%) | 18 | 18 |
| Reduction of area in % | 45 | 45 |
At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated in the USA, we hold an extensive inventory of more than 25,000 tons of top-grade materials kept ready in stock.
Reach out to us for a fast quote tailored to your requirement.
We supply these Alloy Steel Gr 5 Sheet and Plates conforming to DIN, ISO, JIS or ANSI Standard.

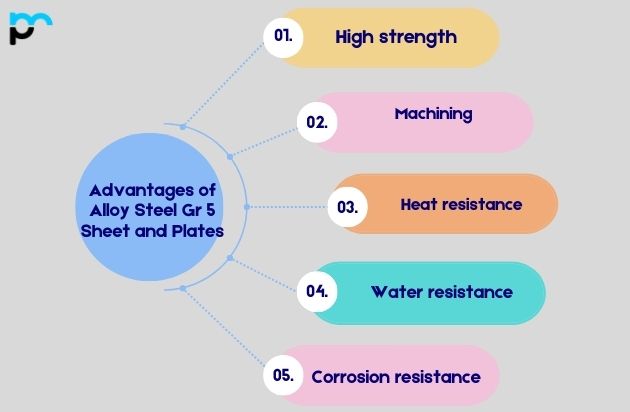

High strength: Grade 5 alloy steel demonstrates outstanding strength properties, which makes it well-suited for hard-material applications. It can endure heavy loads and high-stress conditions with ease of damage or failure.
Machining: Alloy Steel Grade 5 can be machined with relative ease when compared to certain other alloy steels, permitting greater efficiency and manufacturing flexibility
Heat resistance: Grade 5 alloy steel maintains its mechanical properties even under elevated temperatures, which makes it appropriate for high-temperature applications like boilers, turbines and heat exchangers
Water resistance: Alloy steel Grade 5 shows excellent corrosion resistance properties, which makes it appropriate for corrosion-resistant applications. This characteristic prolongs the life of products manufactured from these materials, lowering maintenance costs over the long run.
Corrosion resistance: These alloys include elements such as chromium and molybdenum, which improve their corrosion resistance. This renders Grade 5 sheets and plates suitable for use in hot environments, like pharmaceutical plants and marine applications.
Alloy Steel Gr 5 Sheet and Plates are extensively utilized in a range of industries thanks to their distinctive blend of superb corrosion resistance, considerable strength, and adaptability. Typical industrial applications include use within the oil and gas sector for offshore platforms, pipelines, and subsea equipment, where both corrosion resistance and strength are vital for enduring severe conditions.
Aerospace Industry: In aerospace applications, alloy steel grade 5 sheet plates are frequently chosen for essential parts like aircraft landing gear, engine components and housing pieces owing to their superior strength, longevity, and their ability to resist corrosion
Power generation: They also serve in power plants for turbine parts, boiler tubes and pressure vessels thanks to their high temperature and creep resistance characteristics
Oil and Gas Industry: Within the oil and gas sector, alloy steel grade 5 sheet plates are employed in producing pipelines, valves and drilling equipment because of their corrosion resistance to endure high pressure and heat transfer in demanding environments and the capacity to
Automotive Industry: These materials are seeing use in the automotive industry for producing parts such as gears, shafts and suspension components thanks to their corrosion resistance and high tensile strength, which help improve vehicle durability and efficiency
Understand your application requirements: Identify the application for which alloy steel sheets and plates are required. Take into account elements like temperature, pressure, corrosion resistance, and the mechanical demands of your intended use.
Corrosion Resistance: Based on the environment where it will be used, you might have to enhance its corrosion resistance. Assess the alloy’s ability to resist corrosion and, if corrosion resistance is needed, choose grades that contain suitable alloying elements like chromium or nickel.
Quality Assurance: Verify that the alloy steel sheets and plates meet the relevant ASTM (American Society for Testing and Materials) standards or other international benchmarks. Doing so guarantees the quality, reliability and efficiency of the material.
Size and Design: According to your application requirements, factor in the necessary dimensions and thickness of the sheets and plates. Confirm that the selected supplier is able to provide the sizes you require or can cut and shape the products to suit.
Material properties: Alloy steel grade 5 typically offers strength, toughness and wear resistance. Nonetheless, it is essential to confirm whether these attributes align with what your application demands. Consult the data sheets or technical specifications supplied by the manufacturers to gain a detailed understanding of the product’s features.
