Nickel Alloy 201 Pipes stand as stalwarts in the domain of specialized piping solutions, custom-built from nickel-based compositions celebrated for their Unchanging resistance to corrosion, high temperatures, and mechanical stresses. These pipes prove to be essential assets across a range of sectors including chemical processing, petrochemicals, and aerospace, where harsh operating conditions dominate. Crafted in a variety of grades fine-tuned for particular applications, Nickel Alloy 201 Pipes represent the pinnacle of quality, delivering Excellent performance where conventional materials fall short. Their signature qualities encompass Excellent durability, smooth weldability, and an unrivaled ability to withstand extreme conditions, rendering them Essential components within vital infrastructure and industrial operations.
| Grade | Nickel 201 |
| Standard | ASME SB-161, ASME SB-163, ASME SB-730, ASME SB-751 / BS 3072, BS 3073, BS 3074, BS 3075, BS 3076, NA11 DIN 17740, 17750, 17751, 17752, 17753, 17754 |
| Nickel 201 Seamless Pipes | 1/4″ NB To 6″ NB |
| Nickel 201 Welded / ERW Pipes | 1″ NB To 16″ NB |
| Form | Round, Square, Rectangular, Hydraulic Etc |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Length | Single Random, Double Random & Cut Length. |
| Type | Seamless / ERW / Welded / Fabricated / EFW |
| End | Plain End, Beveled End, Treaded |
| Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
|---|---|---|---|---|---|---|---|---|---|---|
| 201 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | Balanced | – | 0.40 max | – | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Nickel 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. Featuring cutting-edge manufacturing facilities strategically situated across the USA, we maintain an extensive stock of more than 25,000 tons of top-grade materials kept ready and available in inventory.
Reach out to us for a fast quote tailored to your requirement.
We provide these Nickel Alloy 201 Pipes in accordance with DIN, ISO, JIS or ANSI Standard.

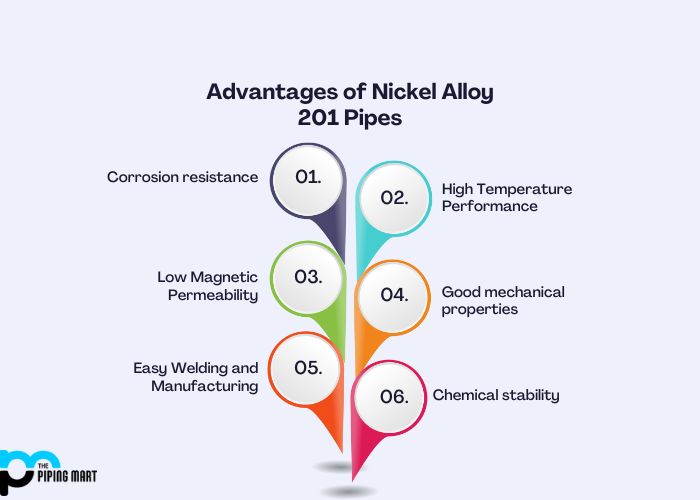

Corrosion resistance: Nickel alloy 201 offers outstanding resistance to corrosion, particularly in acidic conditions. This quality makes it well suited for uses where corrosion poses a challenge, for example within the pharmaceutical industry.
High Temperature Performance: These pipes are able to endure elevated temperatures while retaining their mechanical properties, which makes them appropriate for high-temperature uses such as furnace interiors and heat exchangers
Low Magnetic Permeability: Nickel alloy 201 possesses low magnetic permeability, which makes it valuable in settings that call for reduced magnetic interference, such as electronics or magnetic resonance imaging (MRI) equipment.
Good mechanical properties: The alloy delivers excellent mechanical strength together with flexibility, which makes it simple to fabricate in a range of shapes and sizes
Easy Welding and Manufacturing: Nickel Alloy 201 can be joined through conventional welding techniques and is straightforward to fabricate and machine, which streamlines manufacturing processes.
Chemical stability: It shows resistance to a broad variety of chemicals, including alkaline solutions, reducing agents and organic acids, which makes it appropriate for use in the pharmaceutical and petrochemical industries
Nickel Alloy 201 Pipes have applications as varied as the industries they cater to, propelled mainly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Chemical applications: Nickel alloy 201 pipe offers excellent resistance to corrosion and elevated temperatures, which makes it well suited for handling corrosive chemical processing in petrochemicals, pharmaceuticals and agrochemicals.
Oil and Gas Industry: This kind of pipe is employed in oil and gas exploration, production and refining thanks to its ability to withstand corrosion, high pressure and high temperature
Power generation: Nickel alloy pipe is applied in power plants to generate steam from fossil fuels and in nuclear power plants and to handle corrosive water
Aerospace: Nickel alloys 201 Pipe are utilized in aircraft engines and air filters because of their resistance to high temperatures and environmental corrosion
Automotive Industry: Nickel alloy pipe is applied in exhaust systems and turbochargers to withstand high temperatures and corrosion.
Marine Applications: Nickel alloy 201 pipe is used in marine applications where resistance to corrosion and durability are vital, such as marine cooling systems.
Food Processing: Nickel alloy 201 pipe is employed in food processing equipment where resistance to corrosion and high temperatures are needed.
Electronics: Nickel alloys are used in electronic components and connectors owing to their outstanding electrical conductivity and corrosion resistance
Water resistance: Nickel Alloy 201 is recognized for its resistance to a wide range of corrosive agents, such as alkalis, salts and acids. Take into account the corrosive substances your application’s pipes will encounter and evaluate whether Nickel Alloy 201 is appropriate for that scenario.
Temperature Resistance: Identify the temperature at which the pipes are going to function. Nickel Alloy 201 delivers outstanding mechanical properties at both room and elevated temperatures, but should your application require extremely high temperatures, you may need to look at other heat-resistant nickel alloys.
Mechanical properties: Identify the mechanical characteristics your application demands, including absorption strength, power output, and length. Nickel alloy 201 provides excellent mechanical strength, which makes it fitting for a range of applications, but confirm that it aligns with your particular requirements.
Construction and Weldability: Take into account how easily Nickel Alloy 201 pipe can be fabricated and welded, particularly when customization or welding is needed during installation. Nickel alloy 201 can be readily manufactured and welded using conventional techniques, which can aid corrosion and installation.
Cost: Compare the cost of nickel alloy 201 pipes against other options. While Nickel Alloy 201 delivers outstanding corrosion resistance and mechanical properties, you should make certain it stays within your budget limits.
Specific application requirements: Take into account any special needs of your application, including dimensional tolerances, surface finishes, or regulatory compliance. Confirm that the Nickel Alloy 201 pipe satisfies all the specifications and standards required for your projects.
Supplier Reputation: Select a trustworthy supplier with a track record of delivering high-quality nickel alloy products. Investigate suppliers, read customer reviews and request certification to make sure you are purchasing authentic Nickel Alloy 201 pipe.
