Home > Nickel Alloy > Nickel Alloy 201 Fasteners
| Grades | Nickel 201 (UNS 2201) |
|---|---|
| Standards | ASTM, BS, IS |
| Specifications | ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472 |
| Size | M02 to M30 |
| Length | 3 mm To 200 mm |

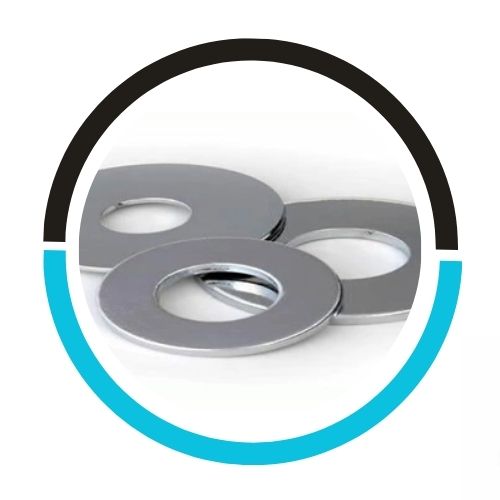

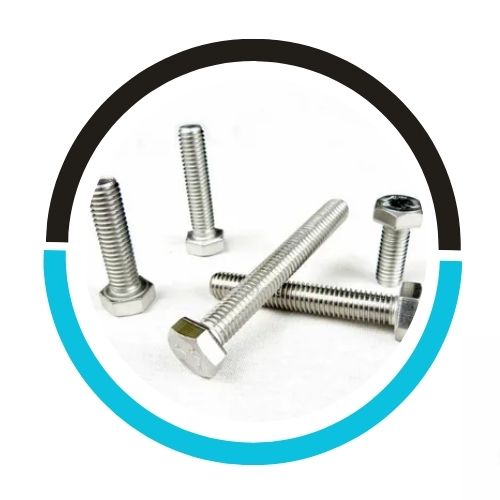

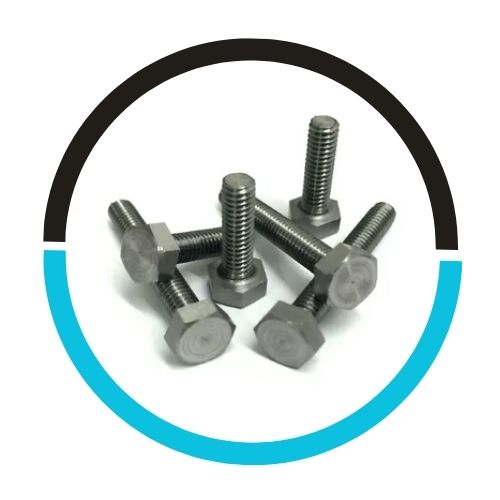

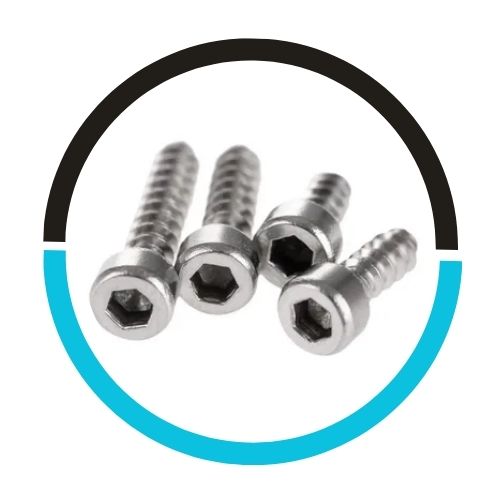

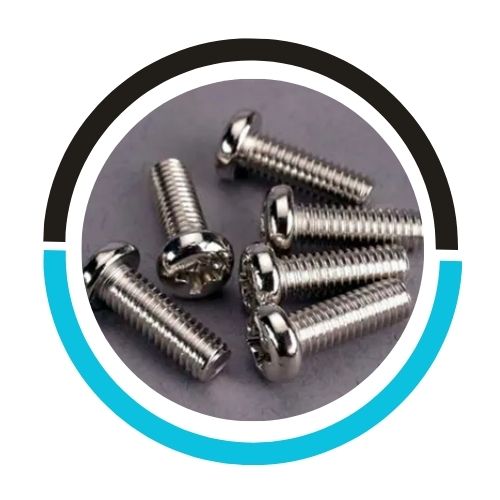

| Types | Nuts, Bolts, Screws, Sockets, Studs, Screw, Hex Set Screw, Socket Screw, Cap Screw, Pan Head Screw, Machine Screw, Socket Head Cap Screw, Allen Cap screw, Wing Screw, Washers, Spring Washers, Studs, Anchors, Marine Anchors, Nut, Hexagon Nut, Hex Nut, Hex Coupling Nut, Hex Domed Cap Nuts, Square Nut, Stud Bolts, Hex Head Bolts, Socket Hexagon Head Screw Anchor Bolt, U- Bolts, J Bolts, Mushroom Head Square Neck Bolts, T-Head Bolts, Wing Screw, Eye Bolt, Foundation Bolts, Structural Bolts. |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically positioned across the USA, we maintain an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.
Reach out to us for a fast quote tailored to your needs.
We supply these Nickel Alloy 201 Fasteners conforming to DIN, ISO, JIS or ANSI Standard.
Nickel Alloy 201 Fasteners are used extensively in industrial settings throughout numerous sectors thanks to their remarkable blend of corrosion resistance, strength, and durability. Frequently employed in fields like oil and gas, chemical processing, marine, and offshore, these flanges serve an essential function in piping systems exposed to corrosive conditions, elevated pressures, and extreme temperatures.
Chemical Process Industry: Because they resist chemical corrosion and weathering, fasteners made from Nickel Alloy 201 see extensive use in chemical processing equipment within reactors, vessels and piping systems.
Electronics industry: In the electronics industry, nickel alloy 201 fasteners are frequently applied to produce items like electronic components and assemblies. The high electrical conductivity and corrosion resistance of the material make it well suited for electronic uses.
Aerospace Applications: Aerospace uses frequently demand fasteners capable of enduring harsh environmental conditions and preserving indoor integrity over long spans of time. Thanks to their corrosion resistance and high-temperature capabilities, nickel alloy 201 fasteners are employed in aircraft standing materials such as aircraft engines, aircraft engines and fuel systems
Marine Application: Nickel alloy 201 fasteners serve marine environments that call for corrosion resistance. They are applied in marine equipment, offshore platforms and marine pipeline systems to guard against corrosion and preserve structural integrity.
Food Processing: Fasteners built from nickel alloy 201 are applied in food processing equipment where corrosion resistance and cleanliness are essential. They also serve applications like appliances for food handling and packaging machinery.
Understand your application requirements: Identify the precise environment in which the fasteners will operate. Take into account temperature, pressure, corrosion resistance, and mechanical stress.
Properties: Nickel Alloy 201 offers outstanding resistance to corrosive agents such as alkalis, neutral acid salts, dry fluorine, and hydrofluoric acid. It is important to confirm that these agents align with the demands of your application.
Corrosion Resistance: Assess how much corrosion resistance your application demands. Nickel alloy 201 is especially well-suited for settings that call for high corrosion resistance, such as chemical processing, food processing and marine applications.
Temperature Resistance: Establish the temperature at which the fasteners will function. Nickel alloy 201 displays outstanding mechanical properties at both high and low temperatures, making it appropriate for a wide range of temperature conditions.
Mechanical Power: Take into account the mechanical power needs of your application. Nickel alloy 201 fasteners deliver outstanding mechanical properties, including high tensile strength and flexibility.
| Nominal Size | Outside Diameter (OD) | Min. Thickness (T) | RF Dia. (R) | No. of Bolt Holes | Diameter of Holes | Bolt Circle (BC) | SO Bore ID (SB) | WN Bore ID (WB) | Dia. Hub Base (HB) | Dia. of Hub Top (HT) | SO LTH (SL) | WN LTH (WL) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1⁄2 | 3.50 | 0.38 | 1.38 | 4 | 0.62 | 2.38 | 0.88 | 0.62 | 1.19 | 0.84 | 0.56 | 1.81 |
| 3⁄4 | 3.88 | 0.44 | 1.69 | 4 | 0.62 | 2.75 | 1.09 | 0.82 | 1.50 | 1.05 | 0.56 | 2.00 |
| 1 | 4.25 | 0.50 | 2.00 | 4 | 0.62 | 3.12 | 1.36 | 1.05 | 1.94 | 1.32 | 0.62 | 2.12 |
| 11⁄4 | 4.62 | 0.56 | 2.50 | 4 | 0.62 | 3.50 | 1.70 | 1.38 | 2.31 | 1.66 | 0.75 | 2.19 |
| 11⁄2 | 5.00 | 0.62 | 2.88 | 4 | 0.62 | 3.88 | 1.95 | 1.61 | 2.56 | 1.90 | 0.81 | 2.38 |
| 2 | 6.00 | 0.69 | 3.62 | 4 | 0.75 | 4.75 | 2.44 | 2.07 | 3.06 | 2.38 | 0.94 | 2.44 |
| 21⁄2 | 7.00 | 0.81 | 4.12 | 4 | 0.75 | 5.50 | 2.94 | 2.47 | 3.56 | 2.88 | 1.06 | 2.69 |
| 3 | 7.50 | 0.88 | 5.00 | 4 | 0.75 | 6.00 | 3.57 | 3.07 | 4.25 | 3.50 | 1.12 | 2.69 |
| 31⁄2 | 8.50 | 0.88 | 5.50 | 8 | 0.75 | 7.00 | 4.07 | 3.55 | 4.81 | 4.00 | 1.19 | 2.75 |
| 4 | 9.00 | 0.88 | 6.19 | 8 | 0.75 | 7.50 | 4.57 | 4.03 | 5.31 | 4.50 | 1.25 | 2.94 |
| 5 | 10.00 | 0.88 | 7.31 | 8 | 0.88 | 8.50 | 5.66 | 5.05 | 6.44 | 5.56 | 1.38 | 3.44 |
| 6 | 11.00 | 0.94 | 8.50 | 8 | 0.88 | 9.50 | 6.72 | 6.07 | 7.56 | 6.63 | 1.50 | 3.44 |
| 8 | 13.50 | 1.06 | 10.62 | 8 | 0.88 | 11.75 | 8.72 | 7.98 | 9.69 | 8.63 | 1.69 | 3.94 |
| 10 | 16.00 | 1.12 | 12.75 | 12 | 1.00 | 14.25 | 10.88 | 10.02 | 12.00 | 10.75 | 1.88 | 3.94 |
| 12 | 19.00 | 1.19 | 15.00 | 12 | 1.00 | 17.00 | 12.88 | 12.00 | 14.38 | 12.75 | 2.12 | 4.44 |
| 14 | 21.00 | 1.31 | 16.25 | 12 | 1.12 | 18.75 | 14.14 | 13.25 | 15.75 | 14.00 | 2.19 | 4.94 |
| 16 | 23.50 | 1.38 | 18.50 | 16 | 1.12 | 21.25 | 16.16 | 15.25 | 18.00 | 16.00 | 2.44 | 4.94 |
| 18 | 25.00 | 1.50 | 21.00 | 16 | 1.25 | 22.75 | 18.18 | 17.25 | 19.88 | 18.00 | 2.62 | 5.44 |
| 20 | 27.50 | 1.62 | 23.00 | 20 | 1.25 | 25.00 | 20.20 | 19.25 | 22.00 | 20.00 | 2.81 | 5.62 |
| 22 | 29.50 | 1.75 | 25.25 | 20 | 1.38 | 27.25 | 22.22 | 21.25 | 24.25 | 22.00 | 3.07 | 5.82 |
| 24 | 32.00 | 1.81 | 27.25 | 20 | 1.38 | 29.50 | 24.25 | 23.25 | 26.12 | 24.00 | 3.19 | 5.94 |
