| Specifications | ASTM B 446 ASME SB 446 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Length | 3 mm to 200 mm |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Screw Type | Inconel 625 Threaded Screw, Hex Head Screw, Socket Head Screw, Socket Set Screw, Blind Rivet, Concrete Screw, Shoulder Screw, Anchor Screw, Panel Screw, Machine Screw etc. |
| Bolts Types | Inconel 625 Hex Head Bolts, Hex Bolts, Square Bolts, Eye Bolts, T Bolts, U Bolts, Lag Bolts, Counter sunk Bolts etc. |
| Washer Types | Inconel 625 Lock Washer, Machine Washers, Star Washers, Sealing Washer, Split Washer etc. |
| Studs Types | Inconel 625 Double Ended Studs, Threaded Tod, Tie Bars, Tie Rodsetc. |
| Nut Types | Inconel 625 Coupling Nut, Hex Head Nut, Wing Nut, Square Nut, Panel Nut, T Nut, Acorn Nuts, Dome Nut, Eye Nut, Lock Nut etc. |
| Density | 8.4 g/cm3 |
|---|---|
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 1,35,000 , MPa – 930 |
| Yield Strength (0.2%Offset) | Psi – 75,000 , MPa – 517 |
| Elongation | 42.5 % |
| Element | Content (%) |
| Nickel, Ni | 58.0 min |
| Silicon, Si | 0.50 max |
| Carbon, C | 0.10 max |
| Sulphur, S | 0.015 max |
| Copper, Cu | – |
| Iron, Fe | 5.0 max |
| Manganese, Mn | 0.50 max |
At Sumakhsteel, we are proud to be the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge production facilities strategically situated in the USA, we maintain an extensive stock of more than 25,000 tons of top-grade materials kept ready in inventory.
Reach out to us for a fast quote on your requirement.
We supply these Inconel 625 Bolts in accordance with DIN, ISO, JIS or ANSI Standard.

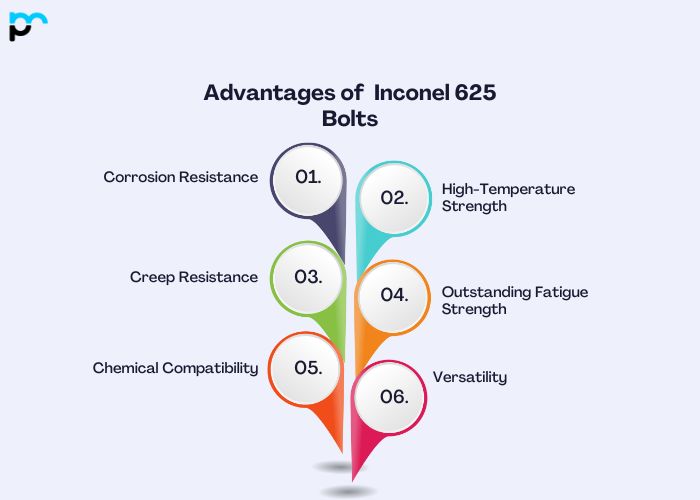

Corrosion Resistance: One of the primary advantages of Inconel 625 bolts is their exceptional resistance to corrosion. They perform effectively in both oxidising and reducing environments, including those containing sulfur compounds, alkaline solutions, and chloride ions.
High-Temperature Strength: Inconel 625 bolts are well-suited to applications where heat resistance is critical, as they retain their strength and integrity even at elevated temperatures. Their mechanical properties do not deteriorate substantially at temperatures reaching 1800°F (982°C), which is cryogenic levels.
Creep Resistance: These bolts withstand creep deformation, a gradual, ongoing distortion that occurs over time under sustained stress, particularly in hot environments. This property ensures the bolt remains reliable and durable in high-stress applications.
Outstanding Fatigue Strength: Inconel 625 bolts possess high fatigue strength, allowing them to endure numerous stress cycles before they fail. As a result, they are well-suited to applications involving cyclic loading or vibration.
Chemical Compatibility: They are suitable for chemical processing, maritime environments, and other corrosive settings because they offer excellent resistance to a broad range of chemicals, acids, and alkalis.
Versatility: Inconel 625 bolts serve a range of industries, including nuclear power, chemical processing, oil and gas, maritime, and aerospace. Their versatility makes them a preferred choice for critical fastening applications across various environments.
Inconel 625 Bolts have applications as varied as the industries they serve, driven mainly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Aerospace: Inconel 625 bolts see extensive use in aerospace applications thanks to their outstanding strength, resistance to corrosion, and capacity to endure elevated temperatures. They serve in aircraft engines, turbine blades, exhaust systems, and additional components.
Marine Applications: Inconel 625 bolts offer strong resistance to corrosion and erosion caused by marine materials, which makes them well suited for shipbuilding, offshore drilling rigs and underwater equipment
Chemical Applications: Inconel 625 bolts find frequent use in chemical plants where corrosive chemicals, high temperature and high-pressure conditions occur in reactors, valves, pumps and other equipment.
Oil and Gas Industry: Within the oil and gas industry, Inconel 625 bolts are applied to downhole drilling tools, wellhead components, high-pressure pipelines and other uses where corrosion resistance and strength matter
Power performance: Inconel 625 bolts are employed in power plants, such as nuclear power plants, gas turbines and steam turbines, where they can endure high temperatures and hot weather
Medical Applications: Inconel 625 bolts are utilized in medical devices and equipment owing to their biocompatibility, strength and corrosion resistance, which makes them well suited for surgical instruments and implants.
Understand the application requirements: Identify the environment where the bolts will serve. Take into account temperature, pressure, resistance to corrosion, and mechanical load.
Compatibility: Inconel 625 is a nickel-based superalloy recognized for its outstanding resistance to corrosion, high strength, and high performance. Verify that Inconel 625 fits the operating conditions of your application.
Size and Quantity: Using the design specifications and the materials that need protection, work out the bolt size, length, and the number of bolts needed.
Strength Requirements: Establish the mechanical strength the bolts must have to handle the loads and stresses they will face. Inconel 625 bolts deliver excellent tensile strength and fatigue resistance, which makes them well suited to harsh environments.
Corrosion Resistance: Inconel 625 offers very high resistance to corrosion, particularly in demanding settings like marine or chemical processes, ensuring that the bolt delivers the corrosion protection needed for specific conditions.
