| Material Specification | ASTM B 166 ASME SB 166, UNS 6600 Bolts |
|---|---|
| Inconel 600 Bolts, Studs Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| Alloy 600 Fasteners Standard: | ANSI – American National Standards Institute
DIN: DIN 931, DIN 933, DIN 934, DIN 970 UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards |
| Source of raw materials | Tata Steel, JSPL, RINL, Usha Martin, Dhamm Steel, Mukund Steel etc. |
| Scope Of Manufacture |
|
| Inconel 600 bolting materials Surface Coating: |
All surface finishes offered, including Galvanised, Zinc, Electroless Nickel, Sherardized,Geomet & PTFE, Dacromet |
| In Form of: | Hex, Square, Round, Threading as per Gauge Etc. |
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| Standard | DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards |
| / Bolts Size | M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160 |
| Length | 3 mm to 200 mm |
| Inconel 600 bolting Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
| Popular Types of Alloy 600 Bolts | Inconel 600 Hex Bolts, Flange Bolts, Hex Head Bolts, Lag Bolts, Square Bolts, Eye Bolts, U Bolts, T Bolts, Counter sunk Bolts etc. |
Density | 8.47 g/cm3 |
Melting Point | 1413 °C (2580 °F) |
Tensile Strength | Psi – 95,000 , MPa – 655 |
Yield Strength (0.2%Offset) | Psi – 45,000 , MPa – 310 |
Elongation | 40 % |
Element | Content (%) |
Nickel, Ni | 72.0 min |
Silicon, Si | .50 max |
Carbon, C | .15 max |
Sulphur, S | .015 max |
Copper, Cu | .50 max |
Iron, Fe | 6.0-10.0 |
Manganese, Mn | 1.00 max |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically positioned across the USA, we maintain an extensive stock of more than 25,000 tons of top-grade materials kept ready in inventory.
Reach out to us for a fast quote tailored to your requirement.

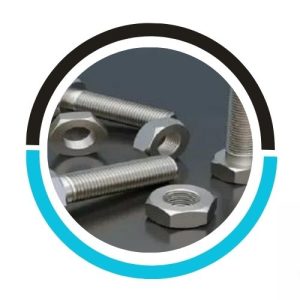

We supply these Inconel 617 Bolts in accordance with DIN, ISO, JIS or ANSI Standard.

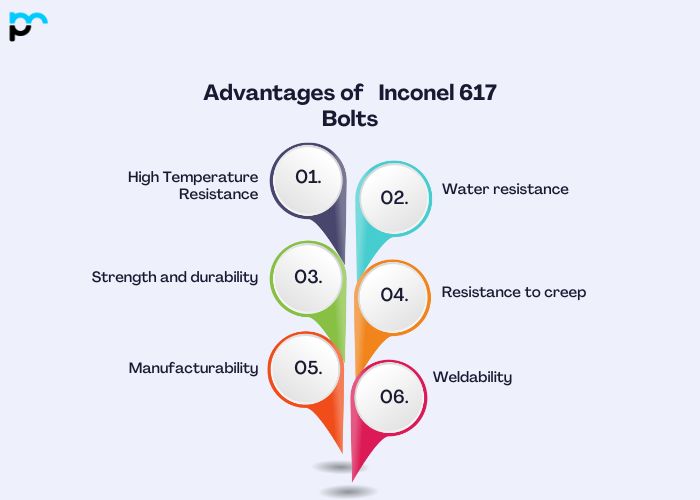

High Temperature Resistance: The Inconel 617 bolt can endure temperatures reaching 1800°F (982°C) while retaining its mechanical properties. This quality makes them well-suited for aerospace, gas turbines and nuclear reactors where extreme heat is present.
Water resistance: They demonstrate outstanding corrosion resistance in demanding conditions, including high-temperature protection against oxidation and carburization These characteristics matter for uses in the chemical, petrochemical, and marine sectors in which the typical corrosive elements.
Strength and durability: Inconel 617 bolts are highly robust and rigid, preserving their mechanical properties even under elevated temperatures. This delivers dependable and long-lasting performance in challenging applications, lowering the chance of early failure.
Resistance to creep: They offer solid resistance to creep deformation, materials that slowly distort under steady stress at high temperatures. This feature is essential for parts that endure at high temperatures, such as turbine blades and structural elements in gas turbines.
Manufacturability and Weldability: Even with its high resistance, Inconel 617 remains comparatively simple to fabricate and weld. This permits intricately shaped structures, making them appropriate for a range of applications.
Inconel 617 Bolts serve applications as varied as the industries that use them, driven mainly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Space: Inconel 617 bolts serve in aircraft engines mainly within high-temperature parts like combustion chambers, exhaust systems and turbine blades
Power Generation: Employed in gas turbines, steam turbines and nuclear reactors owing to their ability to withstand high temperatures and atmospheric corrosion
Chemical applications: Inconel 617 bolts work well in chemical applications, such as reactors, heat exchangers and piping systems, where they withstand corrosion from acids, alkalis and other chemicals it comes from decay
Petrochemical Industry: Uses can be seen in oil refineries, where they feature in equipment exposed to high temperatures and aggressive chemicals, like heat exchangers, reactor vessels and pipelines
Heat Kilns: Inconel 617 bolts are applied in heat kits and industrial furnaces capable of enduring high temperatures and resisting oxidation and carburization.
High-temperature fastening: Inconel 617 bolts are utilized across many industries to fasten parts operating under high-temperature conditions, guaranteeing structural integrity and reliability
Understanding application requirements: Begin by grasping the setting in which the bolts will operate. Take into account temperature, pressure, resistance to corrosion, and mechanical stress.
Compatibility: Confirm that Inconel 617 fits the intended setting. Inconel 617 is recognized for its outstanding resistance to oxidation and corrosion at high temperatures, which makes it appropriate for use in demanding environments, like gas turbines and high-temperature industrial components.
Size and Dimensions: Depending on the particular application, work out the size and dimensions of the bolts needed. Take into account aspects like thread thickness, length, thickness, and head type.
Strength Requirements: Establish the strength requirements of the bolts according to the mechanical load and stress conditions of the application. Inconel 617 bolts deliver high strength along with excellent creep resistance at elevated temperatures, which makes them appropriate for high-pressure applications.
Corrosion Resistance: Establish how much corrosion resistance the application calls for. Inconel 617 shows remarkable oxidation and corrosion resistance in high-temperature settings, making it ideal for applications that demand corrosion resistance.
