| Grade | Inconel 600 (UNS N06600) |
| Specifications | ASTM B166 |
| Dimension | DIN, ASTM, BS and all International Standards |
| Length | M02 to M33 |
| Size | 3 mm to 200 mm | Custom Sizes |
| Types | U- Bolts, J Bolts, Mushroom Head Square Neck Bolts, Bolts, Stud Bolts, Hex Head Bolts, Socket Hexagon Head Screw Anchor Bolt, T-Head Bolts, Eye Bolt, Foundation Bolts, Structural Bolts etc. |
| Density | 8.47 g/cm3 |
| Melting Point | 1413 °C (2580 °F) |
| Tensile Strength | Psi – 95,000 , MPa – 655 |
| Yield Strength (0.2%Offset) | Psi – 45,000 , MPa – 310 |
| Elongation | 40 % |
| Element | Content (%) |
| Nickel, Ni | 72.0 min |
| Silicon, Si | .50 max |
| Carbon, C | .15 max |
| Sulphur, S | .015 max |
| Copper, Cu | .50 max |
| Iron, Fe | 6.0-10.0 |
| Manganese, Mn | 1.00 max |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated across the USA, we maintain an extensive stock of more than 25,000 tons of top-quality materials kept ready in inventory.
Reach out to us for a fast quote tailored to your needs.
We supply these Inconel 600 Bolts in compliance with DIN, ISO, JIS or ANSI Standard.

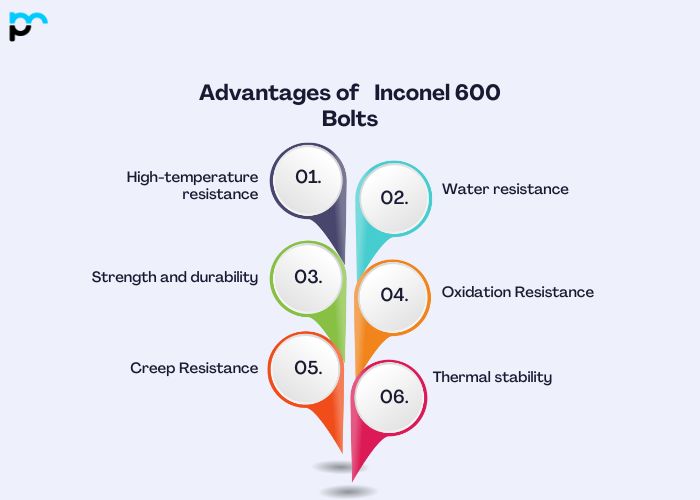

High-temperature resistance: Inconel 600 bolts are able to endure elevated temperatures while retaining their strength and resisting brittleness. This quality makes them well-suited for high-temperature settings such as space, gas turbines and nuclear reactors.
Water resistance: Outstanding resistance to corrosion, particularly in aggressive conditions like acidic and alkaline solutions, making it perfectly suited for chemical processing and marine uses
Strength and durability: Inconel 600 bolts demonstrate excellent tensile strength and toughness, delivering dependability and longevity even in demanding conditions. This guarantees that those fastened connections are genuine.
Oxidation Resistance: These bolts withstand oxidation under high temperatures, preserving their design integrity over extended durations in oxidizing settings
Creep Resistance: Inconel 600 bolts offer outstanding resistance to creep deformation under heavy stresses and temperatures, making them appropriate for uses where sustained loading is anticipated
Inconel 600 Bolts serve applications as varied as the industries they support, led mainly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
High-temperature applications: Inconel 600 bolts withstand elevated temperatures and oxidation, which makes them well suited for high-temperature settings like gas turbines, exhaust systems and heating systems
Chemical applications: Frequently employed in chemical uses that demand corrosion resistance. Inconel 600 bolts hold up against corrosive chemicals, acids and alkalis, making them a great choice for chemical products, process vessels and pipelines.
Aerospace Industry: Inconel 600 bolts are applied in the aerospace sector thanks to their high strength and weight, resistance to thermal cycling, and their ability to endure high stress and strain. They serve in aircraft engines, exhaust systems, and other critical areas.
Nuclear Industries: Inconel 600 bolts are employed in nuclear power plants for their corrosion and radiation resistance. They appear in reactor cores, steam generators and other parts where reliability and durability are essential.
Heat Exchangers: Inconel 600 bolts are used in heat exchangers capable of handling high temperatures and hot conditions, delivering a long service life and strong efficiency
Understand your project: Understand the setting where the bolts will serve. Take into account temperature, pressure, possible damage, vibration, and load demands.
Compatibility: Inconel 600 is a nickel-chromium alloy that offers outstanding resistance to corrosion in high-heat conditions. Verify that it suits the particular chemicals, temperatures, and pressures involved in your application.
Bolt grades and strengths: Inconel 600 bolts are available in a range of grades and strength levels. Figure out the strength you need according to the load and stress your application will face. Substantial loads or elevated pressure might call for high-strength bolts.
Size and Thread Type: Choose the right bolt size and thread type so it fits securely on the mating components. Factor in thread pitch, thickness, and length to guarantee adequate overlap and alignment.
Surface materials: Think about the bolt finish, particularly when they sit in high-heat areas. Use finishes that deliver extra corrosion protection, like passivation or coatings.
