Inconel Tube Manufacturer, Supplier and Exporter in California, USA.

Inconel 2.4816 Seamless Tube, ASTM B163 Inconel 600 Seamless Tube Manufacturers and Suppliers in California, ASME SB 163 Inconel 600 Seamless Tube, Inconel UNS N06600 Seamless Tube Suppliers in USA.

Inconel Tube are premium nickel-chromium alloys renowned for their exceptional resistance to high temperatures, corrosion, and oxidation. They are widely used throughout demanding industries such as chemical processing, aerospace, marine engineering, and nuclear sectors. Valued for their strength, durability, and ability to withstand harsh environments, Inconel tubes stand out as the go-to choice for critical applications where reliability and top performance matter most.

Inconel Tube Specifications

Dimensions	:	ASTM, ASME and API
Standard	:	ASTM B167/ ASME SB167
Size	:	1/8″NB TO 30″NB IN
Specialized in	:	Large Diameter Size
Schedule	:	SCH20, CH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Form	:	Round, Hydraulic Etc
Type	:	Seamless / Fabricated
Length	:	Single Random, Double Random & Cut Length.
End	:	Plain End, Beveled End, Threaded

Inconel Tube Chemical Composition

Cu	Ni	Fe	Mn	C	S	Si	Cr
0.5 max	72.0 min	6.0 – 10.0	1.0 max	0.15 max	0.015 max	0.5 max	14.0 – 17.0

Inconel Alloy 600 Seamless Round Tube Stockists in California, ASTM B163 Alloy 600 Seamless Tube Dealers in USA, Inconel Alloy 600 Seamless Tube Suppliers in Texas.

Inconel Tube Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.47 g/cm3	1413 °C (2580 °F)	Psi – 95,000 , MPa – 655	Psi – 45,000 , MPa – 310	40 %

Top Inconel Tube Manufacturing Company in California

At Sumakhsteel, we’re proud to be the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated across the USA, we maintain an extensive stock of more than 25,000 tons of top-grade materials kept on hand and ready to ship.

Reach out to us for a fast quote on your requirement.

We supply these Inconel Tube conforming to DIN, ISO, JIS or ANSI Standard.

Inconel 600 Round Tube, Alloy 600 Tube Exporter in Arab Emirates, Inconel Alloy 600 Tube, Inconel 600 Seamless Tube, Alloy 600 Seamless Tube

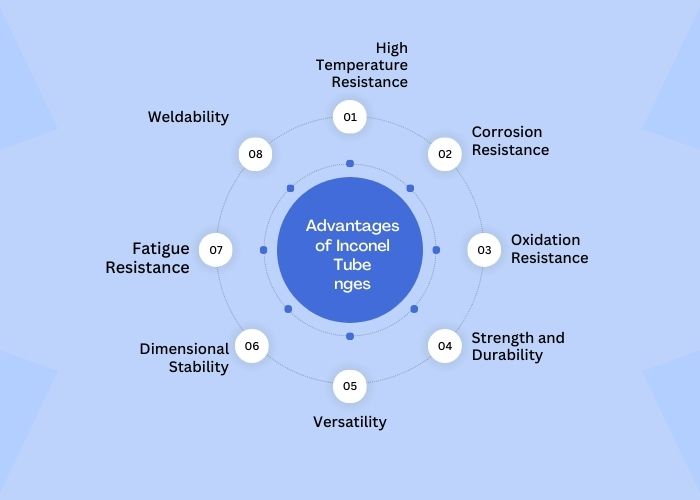

Advantages of Inconel Tube

High Temperature Resistance: Inconel tubes perform outstandingly in high-temperature settings, preserving their mechanical properties and structural integrity even when temperatures rise significantly.
Corrosion Resistance: These tubes provide remarkable resistance to corrosion from a broad variety of corrosive agents, which makes them well-suited for deployment in harsh chemical environments.
Oxidation Resistance: Inconel tubes withstand oxidation effectively, guaranteeing an extended service life and dependability in applications subjected to oxygen-rich conditions.
Strength and Durability: Inconel tubes are recognized for their considerable strength and durability, delivering dependable performance even under challenging circumstances.
Versatility: These tubes are adaptable and find application across numerous industries, such as aerospace, chemical processing, marine engineering, and nuclear sectors.
Dimensional Stability: Inconel tubes retain their dimensional stability across a broad temperature span, ensuring reliable performance and proper fit in critical applications.
Fatigue Resistance: Inconel tubes display outstanding fatigue resistance, which makes them appropriate for cyclic loading and high-stress applications.
Weldability: Inconel tubes can be joined using conventional welding methods, offering flexibility during fabrication and installation processes.

Types of Inconel Tube

Inconel 601 Tube, Inconel UNS N06600 Seamless Tube, ASTM B163 Alloy 600 Seamless Tube, Inconel Alloy 600 Tube, Inconel 600 Seamless Tube Suppliers in New York

Inconel Tube Applications

Application Industry

Inconel Tube uses are as varied as the sectors they support, led mainly by the aerospace, railway, construction and automotive sectors along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Aerospace Industry

Petrochemical Industry

Chemical Processing

Power Generation

Aerospace Industry: Inconel tubes serve in aircraft engines, exhaust systems, and structural parts thanks to their resistance to elevated temperatures and corrosion.
Chemical Processing: Inconel tubes are used within chemical processing facilities to manage corrosive chemicals, acids, and solvents.
Petrochemical Industry: Inconel tubes are applied in oil refineries and petrochemical plants to move aggressive fluids and gases under high temperatures and pressures.
Power Generation: Inconel tubes are used across power plants, spanning fossil fuel, nuclear, and renewable energy facilities, for heat exchangers, boiler tubes, and steam generator parts.
Marine Engineering: Inconel tubes serve in marine applications like shipbuilding, offshore platforms, and seawater desalination plants because of their resistance to corrosion in marine settings.
Nuclear Industry: Inconel tubes are used in nuclear reactors and fuel processing facilities to handle radioactive materials and to function in high-temperature conditions.
Heat Exchangers: Inconel tubes are applied in heat exchangers to move heat between fluids across various industrial processes, including chemical processing and power generation.

How to Choose the Right Inconel Tube

Identify Application Requirements: Identify parameters such as temperature, pressure, corrosion resistance, and mechanical properties required for your specific use.
Select Appropriate Alloy: Select from widely used alloys such as Inconel 600, 625, 718, and X-750 according to their corrosion resistance, strength, and temperature capabilities.
Evaluate Tube Dimensions: Take into account diameter, wall thickness, and length in relation to flow rate, pressure, and available space.
Assess Corrosion Resistance: Pick an alloy that offers suitable resistance to corrosive settings, including acids, chemicals, or seawater.
Consider Temperature Requirements: Verify that the alloy can handle the necessary temperature range without breaking down.
Evaluate Mechanical Properties: Opt for an alloy whose mechanical properties meet or surpass the demands of the application.
Verify Regulatory Compliance: Confirm whether the tube conforms to applicable industry standards such as ASTM and ASME.

Are Inconel Tube Weldable?

Yes Inconel tubes are weldable with conventional welding methods, though care should be taken to prevent problems like sensitization and intergranular corrosion.

Inconel Tube Size Chart

Inconel pipe OD (millimeter)	Sch	kilogram-meter	inches	Pipe WT(millimeter)
26.67	80S	2.23	3/4	3.91
33.40	10S	2.13	1	2.77
114.30	40S	16.32	4	6.02
33.40	160	4.30	1	6.352
42.16	10S	2.73	1¼	2.77
42.16	40S	3.44	1¼	3.56
114.30	10S	8.50	4	3.05
42.16	80S	4.53	1¼	4.85
42.16	160	5.69	1¼	6.352
48.26	80S	5.49	1½	5.08
60.33	10S	3.99	2	2.77
48.26	40S	4.11	1½	3.68
60.33	80S	7.60	2	5.54
21.34	10S	1.02	1/2	2.11
60.33	160	11.29	2	8.742
73.03	80S	11.59	2½	7.01
88.90	10S	6.56	3	3.05
13.72	80S	0.81	1/4	3.02
17.15	40S	0.86	3/8	2.31
88.90	40S	11.47	3	5.49
219.08	40S	43.20	8	8.18
88.90	80S	15.51	3	7.62
60.33	40S	5.52	2	3.91
48.26	10S	3.16	1½	2.77
88.90	160	21.67	3	11.132
101.60	10S	7.53	3½	3.05
168.28	120	54.75	6	14.27
114.30	80S	22.67	4	8.56
33.40	80S	3.29	1	4.55
168.28	160	68.59	6	18.262
219.08	120	91.30	8	18.23
141.30	40S	22.10	5	6.55
17.15	10S	0.64	3/8	1.65
101.60	40S	13.78	3½	5.74
26.67	10S	1.30	3/4	2.11
26.67	40S	1.71	3/4	2.87
101.60	80S	18.92	3½	8.08
73.03	10S	5.35	2½	3.05
73.03	40S	8.77	2½	5.16
114.30	160	34.05	4	13.492
13.72	10S	0.50	1/4	1.65
13.72	40S	0.64	1/4	2.24
168.28	10S	14.04	6	3.4
219.08	80S	65.63	8	12.7
168.28	40S	28.69	6	7.11
17.15	80S	1.12	3/8	3.20
21.34	40S	1.29	1/2	2.77
141.30	160	49.87	5	15.882
21.34	80S	1.65	1/2	3.73
168.28	80S	43.21	6	10.97
33.40	40S	2.54	1	3.38
141.30	80S	31.44	5	9.53
219.08	160	112.97	8	23.012

Inconel Alloy 600 Seamless Tube Exporter in Texas, Alloy 600 Seamless Tube manufacturer & exporter in Saudi Arabia.

FAQ (Frequently Asked Questions)

How are Inconel Tube Sized?

Inconel tubes are available in standardized dimensions, primarily defined by their outer diameter (OD) and wall thickness. These measurements are typically given in inches or millimeters. Featuring a wide selection of sizes, Inconel tubes serve numerous requirements, providing adaptability in both diameter and thickness to match particular applications. Standardized sizing guarantees that these tubes fit smoothly and dependably across a variety of industrial applications.

Can Inconel Tube attract Magnet?

No Inconel Tubes generally are not drawn to magnets, since they consist mainly of non-magnetic materials like nickel and chromium. That said, certain Inconel alloys can include minor quantities of ferromagnetic elements, which may produce weak magnetic behavior. In general, how Inconel tubes react magnetically comes down to the particular alloy makeup and the conditions under which they are processed.

Can Inconel Tube be Used for Underground Applications?

Yes, Inconel tubes are suitable for underground applications, as long as they receive adequate protection from corrosion and environmental factors. Installations below ground may call for extra steps like protective coatings, cathodic protection systems, or corrosion-resistant casing to shield the Inconel tubes from soil moisture, chemical exposure, and other possible hazards. When suitable corrosion protection measures are implemented, Inconel tubes can successfully endure the demands of underground environments and preserve their structural integrity over time.
