| Grade | Inconel 601 (UNS N06601) |
| Specifications | ASTM B166 |
| Dimension | DIN, ASTM, BS and all International Standards |
| Length | M02 to M33 |
| Size | 3 mm to 200 mm | Custom Sizes |

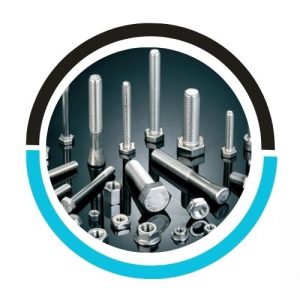

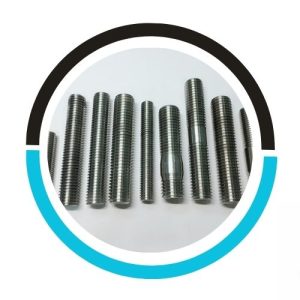

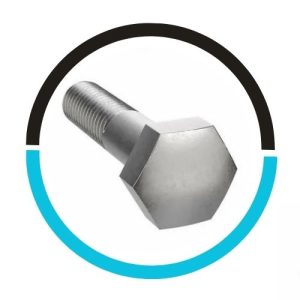

| Types | U- Bolts, J Bolts, Mushroom Head Square Neck Bolts, Bolts, Stud Bolts, Hex Head Bolts, Socket Hexagon Head Screw Anchor Bolt, T-Head Bolts, Eye Bolt, Foundation Bolts, Structural Bolts etc. |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness (Brinell) |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % | – |
| Element | Ni | C | Mn | Cu | S | Si | Cr | Fe |
| Inconel 601 | 58.0 – 63.0 | 0.10 max | 1.0 max | 1.0 max | 0.015 max | 0.5 max | 21.0 – 25.0 | Balance |
At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, providing advanced solutions for all your piping requirements. With cutting-edge production facilities strategically situated in the USA, we maintain an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.
Reach out to us for a fast quote on your requirement.
We supply these Inconel 601 Bolts in accordance with DIN, ISO, JIS or ANSI Standard.

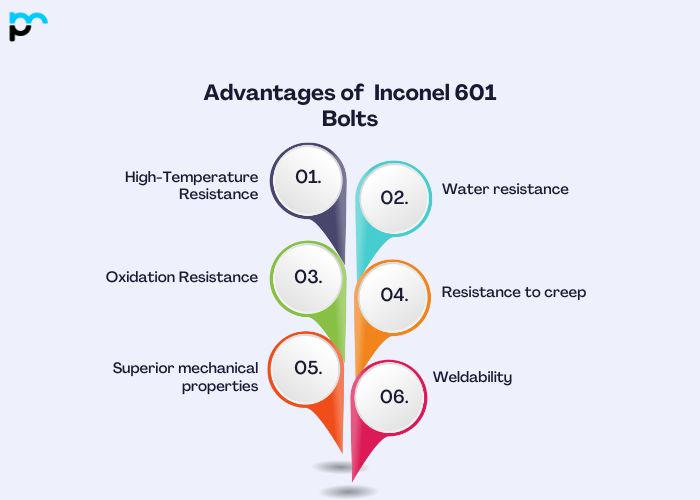

High-Temperature Resistance: Inconel 601 is designed to endure elevated temperatures, which makes it perfect for use in demanding settings like gas turbine parts, furnace setups, and appliances is a temperature.
Water resistance: This bolt shows outstanding corrosion resistance in demanding settings, including resistance to high-temperature oxidation and carburization. This property makes it well-suited for uses where corrosive substances are a concern, such as the pharmaceutical industry and the marine environment
Oxidation Resistance: Inconel 601 bolts withstand oxidation at elevated temperatures, preserving their mechanical properties even in oxidizing conditions
Resistance to creep: Another benefit is resistance to creep deformation under elevated temperatures and stresses, guaranteeing the integrity and dependability of connections over time in power generation, aerospace and other applications
Superior mechanical properties: Beyond its high-temperature capability, Inconel 601 offers superior mechanical properties at both ambient and elevated temperatures, delivering strength and rigidity under challenging operating conditions
Inconel 601 Bolts applications are as varied as the industries they serve, driven mainly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Aerospace Applications: Aircraft engines rely on Inconel 601 bolts, which are capable of enduring the extreme temperatures and pressures experienced during flight
Petrochemical Industry: Employed in machinery like heat exchangers, furnace components, catalytic crackers, and so on, in petrochemical plants where elevated temperatures and corrosive environments frequently occur
Power generation: Because they resist high-temperature oxidation and thermal cycling, Inconel 601 bolts are suited to gas turbine components, exhaust systems, and boiler fixtures in power generation facilities
Chemical Uses: Inconel 601 bolts serve in reactors, piping systems, and other equipment within chemical plants where corrosive chemicals and high temperatures are frequently present.
Heat Treatment: Inconel 601 bolts are applied in heat treatment ovens and fixed locations where they must retain mechanical strength and withstand deformation under high temperatures
Understand your needs: Identify the exact application in which the bolt will be used. Take into account the requirements for temperature, pressure, corrosion resistance, and mechanical strength.
Compatibility: Inconel 601 is a nickel-chromium alloy recognized for its outstanding resistance to corrosion and oxidation at high temperatures. Confirm that this material is appropriate for the location where the bolts will be applied.
Size and Quantity: Note the size and dimensions of the bolts needed for your application, such as thread size, length, diameter, and headway. Where required, take technical standards or specifications into account.
Corrosion Resistance: A primary reason to select Inconel 601 bolts is their remarkable corrosion resistance, particularly in high-heat conditions. Verify that the bolts can endure the specific corrosive factors present in your application.
Temperature and Pressure Analysis: Take into account the contact temperature and stress conditions of the bolts. Confirm that the chosen bolt is rated for the proper temperature and pressure levels for your application to guarantee long-term reliability and safety.
