Home > Incoloy 800,800H,800HT Forgings

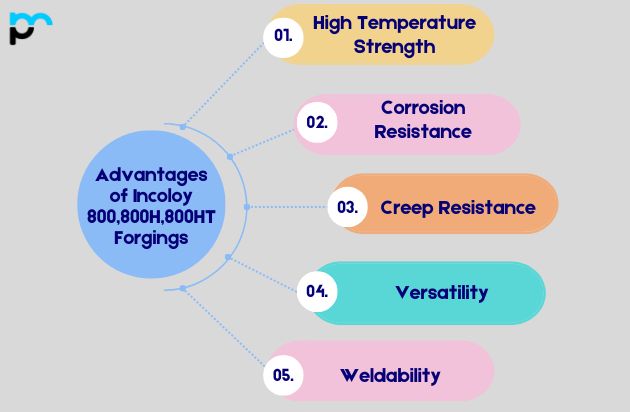

Incoloy 800, 800H and 800HT forgings are recognized for outstanding strength and resistance to corrosion in high-temperature settings. Composed mainly of nickel, steel, and chromium, this alloy delivers dependable performance in vital applications like furnace parts and heat exchangers, along with superb creep resistance and weldability. Incoloy 800 Series forgings guarantee durability and efficiency across numerous industries, reinforced by thermal stability and mechanical strength -to satisfy requirements.
| Specifications | ASTM B564, ASME SB564, AMS 5766 |
|---|---|
| Standard | ISO 9725, DIN 17460, DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
At Sumakhsteel, we’re proud to be the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. Featuring modern production facilities strategically situated in the USA, we maintain an extensive stock of more than 25,000 tons of top-grade materials kept ready in inventory.
Reach out to us for a fast quote on your requirement.
We supply These Incoloy 800,800H,800HT Forgings in accordance with DIN, ISO, JIS or ANSI Standard.
Incoloy 800, 800H, 800HT Forgings serve applications as varied as the industries that use them, led mainly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Yes, Incoloy 800, 800H, and 800HT forgings can be recycled. These alloys are made up of nickel, iron, and chromium, all valuable metals that can be recovered and reused across many industries. Recycling Incoloy forgings helps preserve resources, cut down on waste, and lessen environmental impact. Sound recycling methods make sure these materials are effectively repurposed, backing sustainable practices in the manufacturing and engineering sectors.
