Specifications : ASTM B564 & ASME SB564
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

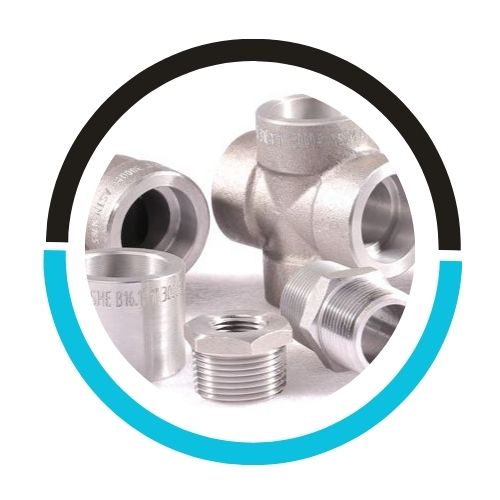

Type : Socketweld Fittings, Screwed-Threaded Fittings
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for all your piping requirements. With cutting-edge manufacturing facilities strategically positioned across the USA, we maintain an extensive stock of more than 25,000 tons of top-grade materials kept ready in inventory.
Reach out to us for a fast quote tailored to your requirement.
Ces raccords forgés en Incoloy 800/800H/800HT, nous les proposons conformes à la norme DIN, ISO, JIS ou ANSI.
Incoloy 800/800H/800HT Forged Fittings find uses as varied as the industries in which they operate, led chiefly by the aerospace, railway, construction and automotive sectors, along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Temperature Requirements: Identify the highest and lowest temperatures the fittings will encounter in your application. Incoloy 800, 800H, and 800HT provide different degrees of high-temperature resistance, so select the alloy that best matches your temperature needs.
Corrosion Resistance: Evaluate the corrosive conditions the fittings will face, taking into account elements like chemicals, gases, and moisture. Incoloy 800 series alloys are recognized for their outstanding corrosion resistance, but the right alloy selection may hinge on how severe the corrosive environment is.
Pressure Rating: Take into account the pressure ratings your application demands to confirm that the chosen fittings can handle the operating pressure without failing. Refer to manufacturers or industry standards to identify the suitable pressure ratings for your particular application.
