Hastelloy Forged Fittings

Q: Are Hastelloy Forged fittings compatible with other piping materials?

Yes, Hastelloy Forged Fittings are compatible with a wide range of piping materials commonly used in industrial applications, including stainless steel, carbon steel, alloy steel, and various types of plastic pipes.

Q: What are the considerations for installing Hastelloy Forged Fittings?

Considerations for installing Hastelloy Forged Fittings include ensuring compatibility with the specific grade of Hastelloy, proper sizing and threading for secure connections, attention to operating conditions such as temperature and pressure, adherence to industry standards for installation procedures, and regular inspection and maintenance for long-term integrity and reliability.

Q: Can Hastelloy Forged Fittings be used for potable water applications?

Yes, Hastelloy Forged Fittings can be used for potable water applications, provided they meet relevant regulatory standards and are certified for such use.

Home > Hastelloy > Hastelloy Forged Fittings

Hastelloy Forged Fittings Manufacturer and Supplier in California, USA

Hastelloy Forged Fittings Manufacturer In USA, Hastelloy Forged Fittings Supplier In California, Hastelloy Buttweld Forged Fittings Price In USA, Hastelloy Fittings Supplier in Texas, USA

Hastelloy Forged Fittings are components manufactured from Hastelloy, a corrosion-resistant alloy recognized for its outstanding performance in high-temperature and corrosive settings. These fittings find frequent use across industries like chemical processing, aerospace, and marine applications where withstanding a broad spectrum of corrosive substances is critical. Hastelloy Forged Fittings deliver exceptional strength, durability, and reliability, rendering them well-suited for critical applications where preserving system integrity is essential. They come in a range of grades and configurations to satisfy particular project needs, delivering flexibility and versatility in both design and installation.

Hastelloy Forged Fittings Specifications

Specifications	ASTM B366/ ASME SB366
Size	Seamless Butt Weld Fittings : 1/2″ – 10″ Welded Butt Weld Fittings : 1/2″ – 48″
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Connection	Welding
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Manufacturing process	Push, Press, Forge, Cast, etc.
Specialized manufacturer of	90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend

Hastelloy Forged Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Hastelloy C276	8.89 g/cm3	1370 °C (2500 °F)	Psi – 1,15,000 , MPa – 790	Psi – 52,000 , MPa – 355	40 %
Hastelloy C22	8.69 g/cm3	1399 °C (2550 °F)	Psi – 1,00,000 , MPa – 690	Psi – 45000 , MPa – 310	45 %

Hastelloy Forged Fittings Chemical Composition

Grade	C	Mn	Si	S	Co	Ni	Cr	Fe	Mo	P
C276	0.010 max	1.00 max	0.08 max	0.03 max	2.50 max	50.99 min*	14.50 – 16.50	4.00 – 7.00	15.00 – 17.00	0.04 max
C22	0.010 max	0.50 max	0.08 max	0.02 max	2.50 max	50.015 min*	20.00 – 22.50	2.00 – 6.00	12.50 – 14.50	0.02 max

Top Hastelloy Forged Fittings Manufacturing Company in California

At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge production facilities strategically situated in the USA, we maintain an extensive stockpile of more than 25,000 tons of top-grade materials kept ready in stock.

Available Hastelloy Forged Fittings Grades

Reach out to us for a fast quote tailored to your requirement.

We supply these Hastelloy Forged Fittings conforming to DIN, ISO, JIS or ANSI Standard.

Hastelloy Forged Fittings Price In USA, ASTM B366 Butt weld Fittings Manufacturer And Supplier in California, Hastelloy Forged Fittings Exporter in California, USA

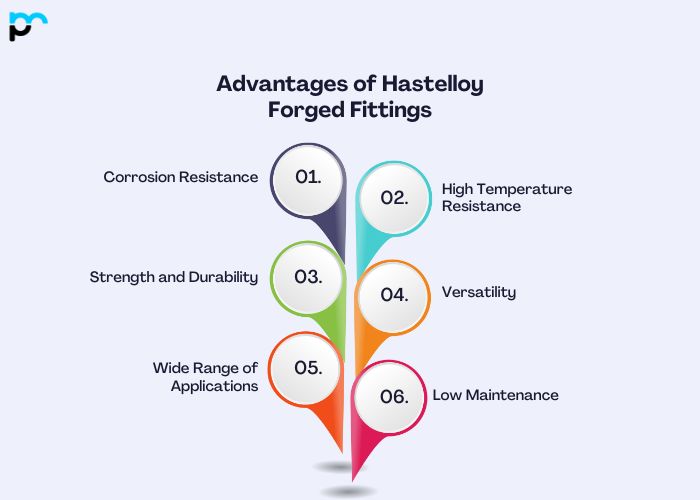

Advantages of Hastelloy Forged Fittings

Corrosion Resistance: Hastelloy forged fittings deliver outstanding resistance against a broad spectrum of corrosive materials such as acids, chlorides, and sulfides, which makes them well-suited for severe and corrosive settings.
High Temperature Resistance: Even under high temperatures, these fittings preserve their mechanical characteristics and resistance to corrosion, rendering them appropriate for high-temperature uses like chemical processing and aerospace.
Strength and Durability: Hastelloy forged fittings demonstrate remarkable strength and toughness, ensuring dependable performance and an extended service life within challenging industrial settings.
Versatility: Offered in a range of grades and configurations, Hastelloy forged fittings provide the flexibility to satisfy particular project needs and can be tailored to fit various applications.
Wide Range of Applications: Hastelloy forged fittings are utilized across numerous industries such as chemical processing, oil and gas, aerospace, marine, and pharmaceuticals, where dependability and corrosion resistance are essential.
Low Maintenance: Thanks to their durability and resistance to corrosion, Hastelloy forged fittings need little maintenance, which leads to lower downtime and operating expenses over the long run.

Types of Hastelloy Forged Fittings

Hastelloy Buttweld Fittings Manufacturer in Texas, Hastelloy Alloy Forged Fittings Exporter in California, Hastelloy Forged Fittings in Price list in Texas, USA

Hastelloy Forged Fittings Uses

Application Industry

Hastelloy Forged Fittings serve applications as varied as the industries they support, led chiefly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Oil & Gas Industry

Aviation Industry

Petro Chemical Industry

Power Generation Industry

Chemical Processing Industry: Hastelloy fittings see widespread application in the chemical processing industry because of their capacity to endure highly corrosive settings. They work perfectly for dealing with acids, chlorides, solvents, and other aggressive chemicals.
Oil and Gas Industry: Within the oil and gas sector, Hastelloy forged fittings serve in pipelines, refineries, and offshore drilling platforms. They feature in systems exposed to sour gas, seawater, and other severe conditions, guaranteeing lasting reliability and safety.
Power Generation : In both nuclear and fossil fuel power plants, Hastelloy fittings are put to use. They can cope with high-temperature steam and corrosive settings within heat exchangers, boilers, and other essential components.
Aerospace and Defense: Because of their high strength and resistance to oxidation and heat, the aerospace industry relies on Hastelloy fittings in aircraft and spacecraft. They also find use in missile and defense systems.
Pharmaceutical Industry : In the pharmaceutical sector, Hastelloy forged fittings are applied in manufacturing processes that involve harsh chemicals and solvents. They assist in preserving product purity by preventing contamination caused by corrosion.

How to Choose the Right Hastelloy Forged Fittings

Corrosion Resistance: Take into account the particular corrosive materials found in the operating environment and select Hastelloy forged fittings with suitable corrosion resistance characteristics to endure these materials.
Temperature Compatibility: Assess the temperature range of the application and pick Hastelloy forged fittings capable of retaining their mechanical properties and corrosion resistance at the operating temperatures.
Pressure Rating: Identify the pressure demands of the piping system and select Hastelloy forged fittings with a suitable pressure rating to guarantee safe and dependable operation.
Size and Configuration: Pick Hastelloy forged fittings with the proper size, configuration, and end connections (threaded, socket weld, or butt weld) to align with the needs of the piping system.
Application Compatibility: Take into account the particular needs and limitations of the application, including fluid type, flow rate, and system design, and select Hastelloy forged fittings that work well with these factors.
Grade Selection: Pick the suitable grade of Hastelloy according to the harshness of the operating conditions, with choices like Hastelloy C276, Hastelloy C22, and Hastelloy B2 providing different levels of corrosion resistance and mechanical properties.
Standards Compliance: Confirm that the Hastelloy forged fittings meet applicable industry standards and specifications such as ASTM, ASME, and ANSI to guarantee quality, performance, and safety.
Quality Assurance: Choose Hastelloy forged fittings from trusted manufacturers with a proven history of making high-quality products and make sure the fittings go through thorough testing for quality assurance.

Are Hastelloy Forged Fittings Recyclable?

Yes Hastelloy Forged Fittings can be recycled. They are able to be melted down and repurposed to make new products without sacrificing their mechanical properties or quality. Recycling Hastelloy fittings contributes to preserving natural resources and lessens environmental impact.

FAQ (Frequently Asked Questions)

Are Hastelloy Forged fittings compatible with other piping materials?

Yes Hastelloy Forged Fittings work well with a broad selection of piping materials frequently found in industrial applications, such as stainless steel, carbon steel, alloy steel, and multiple varieties of plastic pipes.

What are the considerations for installing Hastelloy Forged Fittings?

Considerations when installing Hastelloy Forged Fittings involve verifying that they suit the particular grade of Hastelloy being used, achieving correct sizing and threading for reliable connections, paying attention to operating factors like temperature and pressure, following industry standards for the installation process, and carrying out routine inspection and maintenance to preserve long-term integrity and reliability.

Can Hastelloy Forged Fittings be used for potable water applications?

Yes, Hastelloy Forged Fittings are suitable for potable water applications, as long as they comply with applicable regulatory standards and carry certification for such use.
