| Specifications | ASTM B 574 ASME SB 574 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Length | 3 to 200 milimeter |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Type | Hex Head Bolts, Square Bolts, U bolts, Eye bolts, T bolt, Hex Bolt, Lag Bolts, Counter sunk Bolts, Hex Head nuts, Square nuts, Lock nuts, Eye nuts, wing nuts, T nuts, Panel Nuts, Coupling Nuts, Dome nuts, Acorn Nuts. |
| Screw Type | Hastelloy c276 Threaded Screw, Hex Head Screw, Socket Head Screw, Socket Set Screw, Blind Rivet, Concrete Screw, Shoulder Screw, Anchor Screw, Panel Screw, Machine Screw etc. |
| Bolts Types | Hastelloy c276 Hex Head Bolts, Hex Bolts, Square Bolts, Eye Bolt, T Bolt, U Bolt, Lag Bolts, Counter sunk Bolt etc. |
| Washer Types | Hastelloy c276 Lock Washer, Machine Washers, Star Washers, Sealing Washer, Split Washer etc. |
| Studs Types | Hastelloy c276 Double Ended Studs, Threaded Tod, Tie Bars, Tie Rodsetc. |
| Nut Types | Hastelloy c276 Coupling Nut, Hex Head Nut, Wing Nut, Square Nut, Panel Nut, T Nut, Acorn Nuts, Dome Nut, Eye Nut, Lock Nut etc. |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
|---|---|---|---|---|
| 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 52,000 , MPa – 355 | Psi – 1,15,000 , MPa – 790 | 40 % |
| Hastelloy | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr |
|---|---|---|---|---|---|---|---|---|---|---|
| Balance | 0.01 max | 15 – 17 | 1.0 max | 0.08 max | 4 – 7 | 0.04 max | 0.03 max | 2.5 max | 14.5 – 16.5 |
At Sumakhsteel, we are proud to be the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. Backed by cutting-edge manufacturing facilities strategically situated in the USA, we maintain an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.
Reach out to us for a fast quote tailored to your needs.
We supply these Hastelloy Stud Bolts in accordance with DIN, ISO, JIS or ANSI Standard.

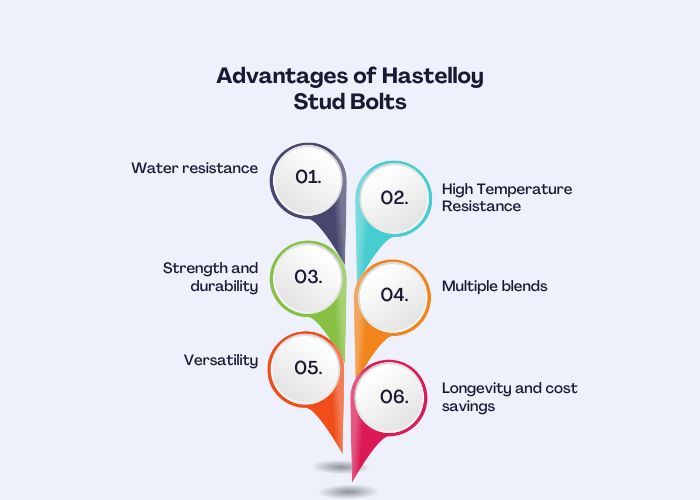

Water resistance: Quick mix is recognized for its outstanding resistance to corrosion, particularly in aggressive environments that contain acids, chlorides and sulphides. This is why Hastelloy stud bolts are perfect for use in the chemical, oil and gas industry and marine applications where corrosion poses a serious concern.
High Temperature Resistance: Fast alloys are able to endure elevated temperatures without sacrificing their mechanical properties. This is what makes Hastelloy stud bolts well suited for high-temperature applications, such as heat exchangers and heating systems.
Strength and durability: Instant alloy demonstrates high strength and superb mechanical properties, delivering strength and reliability in demanding applications. Hastelloy stud bolts can endure high stresses, preserve their integrity over long periods, and lower the risk of bolt failure.
Multiple blends: Rapid blends are available in a range of styles to fit specific applications. Each alloy provides distinctive characteristics, enabling customization to satisfy the application’s requirements. Whether it’s resistance to particular chemicals or high-temperature environments, Hastelloy may be the ideal product for the task.
Versatility: Hastelloy stud bolts can serve a wide range of industries and applications, including chemical processing, aerospace, power generation, and more. Their versatility stems from their capacity to withstand the environment’s resistance to warm surroundings, high temperatures and extreme conditions, making them sought after in a variety of situations.
Longevity and cost savings: Owing to the corrosion resistance and durability of Hastelloy stud bolts, Hastelloy stud bolts typically have a longer lifespan than bolts produced from other materials. This longevity can reduce costs over time, lessening the need for frequent replacement and maintenance.
Hastelloy Stud Bolts serve applications as varied as the industries they support, led mainly by the aerospace, railway, construction and automotive sectors along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Chemical Applications: Hastelloy studs and bolts see frequent use in chemical plants that are regularly subjected to volatile chemicals, such as reactors, vessels, pumps, and valves. They deliver dependable connections in zones that hold chlorides and other corrosive materials.
Oil and Gas Industry: Use in Offshore and Offshore Oil and Gas Storage Offshore and onshore oil and gas facilities for essential connections to pipelines, wells, and equipment subjected to highly corrosive water temperatures and severe environmental conditions
Power applications: Hastelloy stud bolts serve in boilers, turbines, heat exchangers, and other high-temperature, steam and hot weather equipment within power plants, including nuclear, fossil fuel and renewable energy.
Aerospace and Safety: Hastelloy stud bolts are applied in aircraft engines, aerospace products and military equipment where withstanding corrosion, high temperature and pressure is essential for safety and reliability.
Marine and Shipbuilding: In marine applications, such as shipbuilding, offshore platforms and cruise ships, Hastelloy stud bolts are selected for their resistance to salt water, corrosion and marine elements owing to the edge of a complex environment.
Chemical and biotechnology: Hastelloy stud bolts find use in the chemical and biotechnology industries where cleanliness and corrosion resistance are of the highest importance in the manufacture of chemical equipment, chemical processing and the handling of perishables in the field.
Understand the application requirements: Determine the environmental conditions, including temperature, pressure, and wear, to which the stud bolts will be subjected. Quick compounds are recognized for their outstanding corrosion resistance, which makes them a good fit for demanding environments.
Material grade selection: Hastelloy alloys come in several grades, with each providing distinct properties. Common grades include Hastelloy C276, C22, B2, and X
Consider Size and Design: Select the appropriate size and thickness of stud bolts according to your application needs, covering thickness, length, and thread thickness. Make sure the dimensions comply with industry standards and specifications.
Thread Type: Indicates the kind of thread needed for your application, whether it is a coarse thread, a fine thread, or a special thread configuration. Thread type along with mating nuts and other fasteners must correspond for harmony.
Consult with experts: If you are still working out which Hastelloy grade or specification to select, think about consulting an engineer, manufacturer, or supplier that specialises in corrosion-resistant alloys. They can offer valuable insights and recommendations tailored to your particular needs.
Budget and Cost Considerations: Assess the cost of Hastelloy grades and specifications. Although high-quality compounds can deliver better performance, they may also carry a higher price. Weigh your budget constraints against the performance and longevity requirements of stud bolts.
