| Specifications | ASTM B 574 ASME SB 574 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Length | 3 to 200 milimeter |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Type | Hex Head Bolts, Square Bolts, U bolts, Eye bolts, T bolt, Hex Bolt, Lag Bolts, Counter sunk Bolts, Hex Head nuts, Square nuts, Lock nuts, Eye nuts, wing nuts, T nuts, Panel Nuts, Coupling Nuts, Dome nuts, Acorn Nuts. |
| Screw Type | Hastelloy c276 Threaded Screw, Hex Head Screw, Socket Head Screw, Socket Set Screw, Blind Rivet, Concrete Screw, Shoulder Screw, Anchor Screw, Panel Screw, Machine Screw etc. |
| Bolts Types | Hastelloy c276 Hex Head Bolts, Hex Bolts, Square Bolts, Eye Bolt, T Bolt, U Bolt, Lag Bolts, Counter sunk Bolt etc. |
| Washer Types | Hastelloy c276 Lock Washer, Machine Washers, Star Washers, Sealing Washer, Split Washer etc. |
| Studs Types | Hastelloy c276 Double Ended Studs, Threaded Tod, Tie Bars, Tie Rodsetc. |
| Nut Types | Hastelloy c276 Coupling Nut, Hex Head Nut, Wing Nut, Square Nut, Panel Nut, T Nut, Acorn Nuts, Dome Nut, Eye Nut, Lock Nut etc. |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
|---|---|---|---|---|
| 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 52,000 , MPa – 355 | Psi – 1,15,000 , MPa – 790 | 40 % |
| Hastelloy C276 | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr |
|---|---|---|---|---|---|---|---|---|---|---|
| Balance | 0.01 max | 15 – 17 | 1.0 max | 0.08 max | 4 – 7 | 0.04 max | 0.03 max | 2.5 max | 14.5 – 16.5 |
At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically positioned across the USA, we maintain an extensive inventory of more than 25,000 tons of top-grade materials kept ready in stock.
Reach out to us for a fast quote tailored to your needs.
We supply these Hastelloy C276 Stud Bolts in accordance with DIN, ISO, JIS or ANSI Standard.

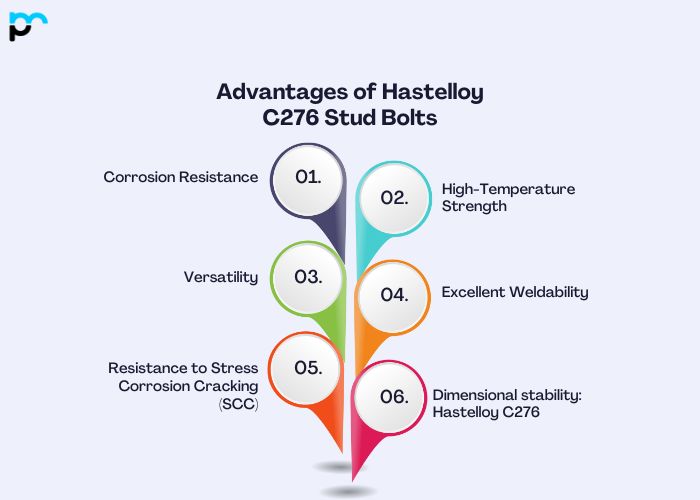

Corrosion Resistance: One of the most significant benefits of Hastelloy C276 is its outstanding resistance to corrosion. It provides strong protection against a wide range of corrosive substances, such as acids, chlorides, sulfuric acid, hydrochloric acid, and other aggressive chemicals. This quality makes it well-suited for demanding environments where corrosion poses a risk.
High-Temperature Strength: Hastelloy C276 offers strong mechanical performance at elevated temperatures, making it appropriate for high-temperature uses. It can endure temperatures as high as 1,900°F (1,038°C) while retaining its strength.
Versatility: Hastelloy C276 is a flexible alloy applied across many sectors, including chemical processing, petrochemicals, pharmaceuticals, pulp and paper, waste processing, and others. This adaptability makes it appealing for a broad array of applications.
Excellent Weldability: Hastelloy C276 can be readily handled through several welding methods, including Gas Tungsten Arc Welding (GTAW), Gas Metal Arc Welding (GMAW), Shielded Metal Arc Welding (SMAW), and Submerged Arc Welding (SAW), along with this complex structure and materials.
Resistance to Stress Corrosion Cracking (SCC): Hastelloy C276 shows strong resistance to stress corrosion cracking, making it appropriate for uses where contact with aggressive environments could lead to cracking under stress
Dimensional stability: Hastelloy C276 retains its dimensional stability even in harsh conditions, ensuring the integrity and dependability of bolted connections over time
Hastelloy C276 Stud Bolts serve applications as varied as the industries they support, led mainly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Oil and gas: Hastelloy C276 stud bolts are the material of choice in oil and gas extraction, refining, and processing plants where harsh conditions like high pressure, high temperature, contact with corrosive liquids, and so on are involved. They also serve in vital applications such as pipelines, valves, and pumps.
Petrochemical Industry: Much like the oil and gas sector, the petrochemical sector handles corrosive chemicals and elevated temperatures. Hastelloy C276 stud bolts find use in reactors, heat exchangers, distillation columns, and other equipment that demands corrosion resistance.
Power generation: Hastelloy C276 stud bolts are employed in power plants, particularly fossil fuel or nuclear power stations, where contact with high temperatures, steam and assorted chemicals is routine in turbines, boilers, and heat exchangers. etc., the essentials of the
Aerospace and Safety: In aerospace and safety applications, where parts face harsh environments involving high temperatures, pressure differentials and corrosion, Hastelloy C276 stud bolts are used to guarantee that the construction is accurate and dependable.
Food and Pharmaceutical: In sectors that call for high standards of hygiene and corrosion resistance, such as food processing and pharmaceutical manufacturing, Hastelloy C276 stud bolts are applied in equipment and machinery where contact with acidic or corrosive substances may occur.
Understand operating requirements: Identify operating parameters including temperature, pressure, corrosion inhibitors, and environmental factors (e.g., the presence of chemicals, acids, or brines).
Compatibility: Hastelloy C276 is recognized for its outstanding resistance to corrosion, which makes it well-suited for severe environments. Nevertheless, confirm that it is compatible with your practice’s chemicals and conditions.
Size and Dimensions: Establish the necessary stud bolt size, length, and thread specifications according to design needs, load-carrying capacity, and assembly constraints
Thread Type and Pitch: According to the mating nut application requirements, choose the suitable thread type (e.g., UNC, UNF) and pitch to guarantee consistency and correct engagement.
Strength and Weight Requirements: According to the mechanical requirements and safety features of the application, take into account the necessary tensile strength, yield strength, and load-carrying capacity of the stud bolt.
Corrosion Resistance: Confirm that Hastelloy C276 is the correct selection for corrosion resistance in your application. Verify the presence of acids, chlorides, sulfides, or other corrosive substances.
