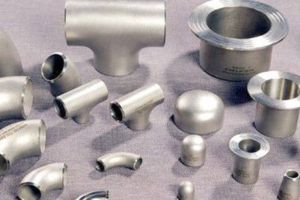

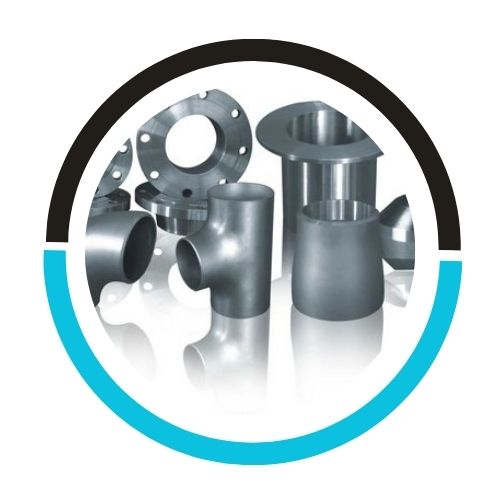

Monel Forged Fittings are prized for their resistance to corrosion and their strength, which makes them a favored option in marine, chemical processing, and oil and gas sectors. custom-built from a nickel-copper alloy, Monel shows remarkable durability against corrosion from seawater, acids, and alkalis, making it basic for offshore structures and chemical processing equipment. These fittings are available in a range of shapes and sizes, providing versatility in design and construction while ensuring longevity and reliability even under demanding conditions.
| Specifications | ASTM B366/ ASME SB366 |
|---|---|
| Size | Seamless Butt Weld Fittings : 1/2″ – 10″ Welded Butt Weld Fittings : 1/2″ – 48″ |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Grade | C | MN | SI | Cu | S | Fe | Ni |
|---|---|---|---|---|---|---|---|
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 28.00 – 34.00 | 0.024 max | 2.50 max | 63.00 min |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, providing state-of-the-art solutions for every one of your piping requirements. With advanced production facilities strategically situated in the USA, we hold an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.
Reach out to us for a fast quote tailored to your requirement.
Nós fornecemos estes Monel Forged Fittings conforme a norma DIN, ISO, JIS ou ANSI.
Monel Forged Fittings serve applications as varied as the industries that use them, led chiefly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Yes Monel forged fittings can be recycled. Monel, a nickel-copper alloy, is recognized for being recyclable and sustainable. Once Monel forged fittings have completed their service life or are no longer needed, they can be melted down and the material reprocessed to create new Monel products or components. Recycling Monel supports the conservation of natural resources, lowers energy usage, and cuts down on the waste directed to landfills, which makes it an eco-friendly option across a range of industries and applications.
Yes, Monel forged fittings are typically suited for use with a range of piping materials frequently found in industrial and commercial settings. They work with stainless steel, carbon steel, alloy steel, copper, PVC (Polyvinyl Chloride), and HDPE (High-Density Polyethylene) pipes. That said, care must be taken to confirm compatibility and avoid problems like galvanic corrosion. Transition fittings or adapters might be required to create secure and leak-free joints between Monel forged fittings and other piping materials.
Considerations when installing Monel forged fittings include verifying compatibility with the piping material and application to avoid problems such as galvanic corrosion. Use correct installation methods, including torque specifications and sealing approaches, to keep connections leak-free and preserve system integrity. In addition, take into account environmental conditions like temperature changes and chemical exposure to extend the fittings’ lifespan and performance. Complying with industry standards and manufacturer guidelines guarantees safe and effective installation practices.
Yes Super Monel forged fittings are suitable for potable water applications thanks to their outstanding corrosion resistance and durability. Super Monel alloys, including Monel K500, provide improved strength along with corrosion resistance, which makes them appropriate for use in drinking water systems. That said, it’s crucial to verify that the particular grade of Super Monel being used is certified and meets the applicable standards for potable water contact, such as NSF/ANSI Standard 61. Correct installation and maintenance procedures must also be observed to avoid contamination and guarantee the safety of the water supply.
