| Specifications | ASTM F 467 ASME SF 467 |
|---|---|
| Standard | IS, ASTM, BS and all International Standards |
| Length | 3 to 200 milimeter |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Screw Type | Monel 400 Threaded Screw, Hex Head Screw, Socket Head Screw, Socket Set Screw, Blind Rivet, Concrete Screw, Shoulder Screw, Anchor Screw, Panel Screw, Machine Screw etc. |
| Bolts Types | Monel 400 Hex Head Bolts, Hex Bolts, Square Bolts, Eye Bolts, T Bolts, U Bolts, Lag Bolts, Counter sunk Bolts etc. |
| Washer Types | Monel 400 Lock Washer, Machine Washers, Star Washers, Sealing Washer, Split Washer etc. |
| Studs Types | Monel 400 Double Ended Studs, Threaded Tod, Tie Bars, Tie Rodsetc. |
| Nut Types | Monel 400 Coupling Nut, Hex Head Nut, Wing Nut, Square Nut, Panel Nut, T Nut, Acorn Nuts, Dome Nut, Eye Nut, Lock Nut etc. |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength(annealed) | 517-620 MPa | 75-90 ksi |
| Yield strength | 172-345 MPa | 25-50 ksi |
| Modulus of elasticity | 179 GPa | 26000 ksi |
| Poisson’s ratio | 0.32 | 0.32 |
| Element | Content (%) |
|---|---|
| Nickel, Ni | 63.00 min |
| Silicon, Si | 0.5 max |
| Carbon, C | 0.3 max |
| Sulphur, S | 0.024 |
| Copper, Cu | 28-34 |
| Iron, Fe | 2.5 max |
| Manganese, Mn | 2 max |
At Sumakhsteel, we’re proud to be the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically positioned across the USA, we maintain an extensive inventory of more than 25,000 tons of top-grade materials kept ready in stock.
Get in touch with us for a fast quote tailored to your requirement.
We supply these Monel Bolts in compliance with DIN, ISO, JIS or ANSI Standard.

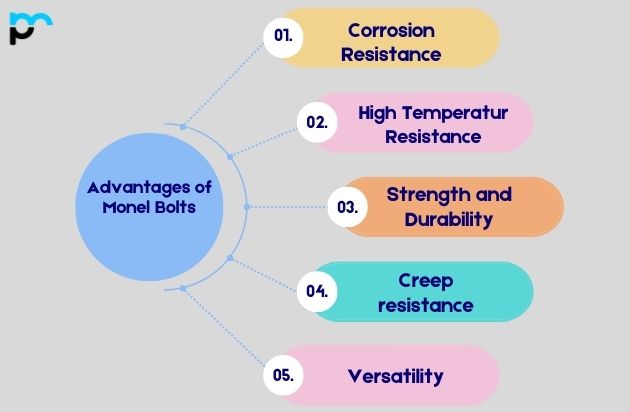

Water Resistance: Monel bolts withstand corrosion from a variety of sources, such as seawater, acidic and alkaline solutions, and industrial chemicals. This resistance to corrosion makes them well-suited for marine uses and projects where corrosive materials are frequently encountered.
High Strength: Monel bolts maintain their strength under high temperatures, making them appropriate for high-strength uses in demanding environments
Durability: Thanks to their corrosion resistance and high strength, Monel bolts deliver lasting durability, cutting down on the need for frequent replacement and upkeep
Non-magnetic: Monel bolts are non-magnetic and can prove useful in settings where magnetic interference is a concern, such as electronics or sensitive appliances
Heat resistance: Monel bolts hold onto their mechanical properties across a broad temperature span, from dry to high temperatures, making them appropriate for use in a range of temperature settings
Easy to manufacture: With a Monel machine, welding and fabrication are remarkably straightforward, enabling flexibility and customization to match specific application needs.
Compatibility: Monel bolts work well with a broad range of materials, including metals and other alloys, plastics and composites, making them versatile for a wide array of applications and industries
Low maintenance: Monel bolts call for minimal upkeep owing to their corrosion resistance and durability, lowering downtime and maintenance costs over the long term
Aesthetics: Monel bolts feature a sleek look, often with a bright and polished appearance, and can enhance the aesthetic appeal of the finished product or structure
Monel Bolts serve applications as varied as the industries they cater to, led mainly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Marine applications: Monel bolts are commonly employed in marine settings owing to their outstanding resistance to corrosion, which makes them well suited for fastening parts on ships, offshore structures and marine equipment in water can be absorbed
Chemical Processing: Monelbolts are utilized in chemical plants where contact with corrosive chemicals frequently occurs. They are found in equipment such as pumps, valves, reactors, and piping systems used for handling corrosive fluids.
Oil and Gas Industry: Within the oil and gas sector, Monel bolts serve to fasten components in drilling rigs, processing plants, pipelines, and refineries and to handle seawater, salt spray, and perishables. And can endure severe water conditions
Aerospace Industry: Monel bolts are applied in the production and upkeep of aircraft within the aerospace industry, particularly in uses exposed to salt water, such as seaplanes or aircraft operated in offshore regions
Power generation: Monel bolts are employed in power plants with nuclear, fossil fuel and renewable energy facilities, including turbines, heat exchangers, boilers and other equipment subject to high temperature and atmospheric conditions, including decomposition. Used
Chemical Transport: Monel bolts are used in tanker and cargo containers holding volatile chemicals and acids, delivering a dependable fastening solution in areas where steel bolt an easy deteriorates quickly
Medical Devices: Monel bolts are used in the production of medical devices, particularly surgical instruments and implants, thanks to their biocompatibility, corrosion resistance and strength.
Electronics and Equipment: Monel bolts are used in electronic and equipment applications where non-magnetic materials are needed to avoid sensitive mechanical interference
Corrosion Resistance: Verify where the bolts are going to be applied. Opt for Monel bolts with strong corrosion resistance, like Monel 400 or Monel K-500, when they will face corrosive substances such as seawater, acids, alkalis, or chemicals.
Strength requirements: Identify your project’s strength needs based on factors like load-carrying capacity and stress levels. Monel K-500 provides greater power than Monel 400, so pick the appropriate grade according to your particular power requirements.
Temperature Range: Gauge the temperature the bolts will face. Monel alloys hold onto their mechanical properties across a broad temperature range, but if your application deals with extreme temperatures, make sure the Monel bolts you pick can endure them without sacrificing performance.
Size and Dimensions: Pick Monell bolts with the right size, thread pitch, and length to guarantee a proper fit and compatibility with mating parts. Take into account factors such as yarn type (e.g., coarse or fine), head style (e.g., hex, socket, or flat), and overall dimensions according to application needs.
Load and Stress Conditions: Examine the anticipated load and stress conditions to establish the strength and thread requirements of the Monel bolt. Apply engineering calculations or refer to relevant standards and guidelines to confirm that the chosen bolt can endure the applied loads without failing.
Environmental factors: Exposure to any environmental factors that could impact the performance of the bolts, such as vibration, shock, cyclic loads, or dynamic forces. Pick Monel bolts with the right characteristics to endure these environmental conditions and readily avoid failure.
Standards Compliance: Confirm that the Monel bolt meets the relevant industry standards, specifications, or certifications that apply to your application. This may include ASTM, ASME, and ISO standards, depending on the particular requirements of your industry or project.
Supplier Reputation: Select a well-regarded supplier or manufacturer recognized for quality Monel bolts. When picking a supplier, weigh product quality, reliability, delivery time, and customer support to secure a dependable and consistent product.
