| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 45000 , MPa – 310 | Psi – 1,00,000 , MPa – 690 | 45 % |
| Standard | ASTM B564 / ASME SB564 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |

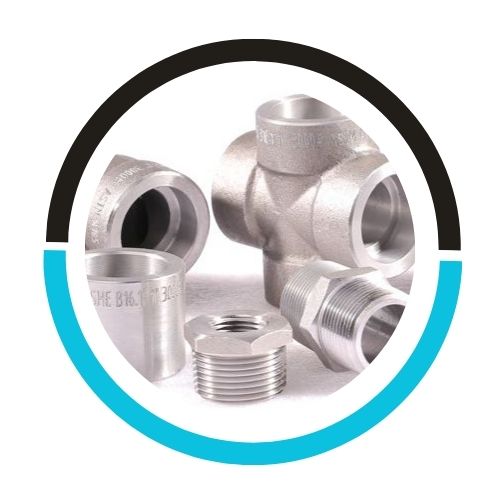

| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 45000 , MPa – 310 | Psi – 1,00,000 , MPa – 690 | 45 % |
| Hastelloy C22 | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V |
| Balance | 0.010 max | 12.5 – 14.5 | 0.50 max | 0.08 max | 2 – 6 | 0.02 max | 0.02 max | 2.5 max | 20 – 22.5 | 2.5 – 3.5 | 0.35 max |
At Sumakhsteel, we’re proud to be the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically positioned across the USA, we maintain an extensive stock of more than 25,000 tons of top-grade materials on hand and ready to ship.
Get in touch with us to receive a fast quote for your needs.
We provide these Hastelloy C22 Forged Fittings in accordance with DIN, ISO, JIS or ANSI Standard.

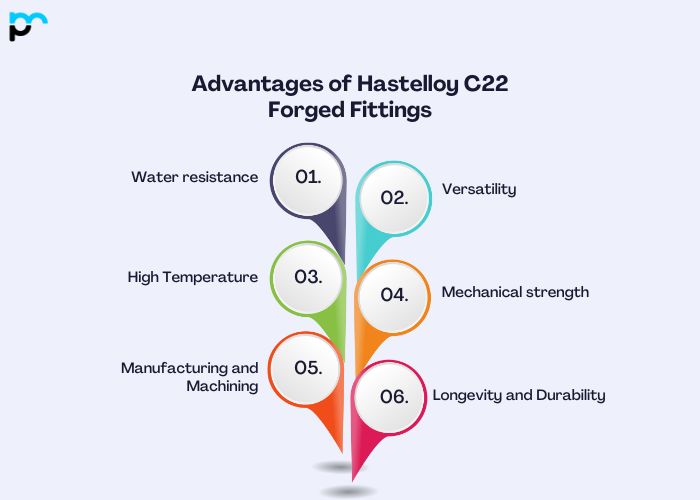

Water resistance: Hastelloy C22 is recognized for its outstanding corrosion resistance across a variety of harsh environments, including oxidizing, reducing and mixed acid media. This quality makes it well-suited for applications where corrosion poses a significant challenge, such as chemical processing, pollution control, and pulp and paper production.
Versatility: These fillers are applicable across a broad spectrum of industries and uses thanks to their resistance to numerous chemicals, including chloride, sulfuric acid, hydrochloric acid, and phosphoric acid. As a result, this capability proves valuable in projects involving multiple degradation factors.
High Temperature: Hastelloy C22 forged fittings maintain their mechanical properties at elevated temperatures, offering resistance to high heat with little loss of strength or corrosion resistance. This characteristic makes the material appropriate for high-temperature uses, such as petrochemical refining and aerospace.
Mechanical strength: The manufacturing process boosts the mechanical strength and integrity of the fitting, guaranteeing dependable performance under high-pressure conditions. This makes Hastelloy C22 forged fittings well-suited for free applications where safety and reliability are essential.
Manufacturing and Machining: Hastelloy C22 is comparatively simple to fabricate and machine when set against certain other corrosion-resistant alloys, which eases its production and permits more intricate shapes and structures
Longevity and Durability: Hastelloy C22 forged fittings offer long service lives owing to their resistance to corrosion, high temperature and mechanical stress. This extended lifespan lowers maintenance needs and downtime as a consequence.
Hastelloy C22 Forged Fittings find uses that vary as widely as the sectors they support, led chiefly by the aerospace, railway, construction and automotive sectors along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Chemical processing: Hastelloy C22 mesh fittings are commonly employed to manage volatile chemicals, acids, and solvents. Aggressive solvents like sulfuric acid, hydrochloric acid, phosphoric acid, acetic acid and chlorine dioxide are made. A broad spectrum of media -Delivers strong resistance to grade.
Petrochemical Industry: Hastelloy C22 mesh fittings serve numerous purposes in petrochemical plants, such as reactors, heat exchangers, piping systems, and valves. They deliver outstanding resistance to the oxidizing and reducing conditions found in petrochemical operations.
Oil and Gas Production: Hastelloy C22 mesh fittings are applied in oil and gas production facilities, particularly pipelines, valves, and pumps within sour gas, hydrogen sulfide and chloride ion-containing zones where corrosion resistance and elevated temperatures are demanded And used.
Chemical Industry: The Chemical industry relies on Hastelloy C22 mesh fittings in equipment and piping systems for managing harsh chemicals, sanitizing agents and high-purity water. These fittings assist in validating and safeguarding chemical processes from dirty mouths.
Power generation: In power plants, particularly those running on fossil fuels or biomass, Hastelloy C22 lattice fittings are utilized in vital components like boiler systems, heat exchangers, and condensers. They offer excellent performance and withstand corrosion and moisture in hot settings and high pressure.
Corrosion resistance: Hastelloy C22 is recognized for its outstanding resistance to corrosion, particularly in aggressive environments such as those containing acids, chlorides, and other corrosive substances. Make sure the filler materials are suited to the particular chemicals and conditions, and that the penetration remains uniform.
Temperature and Pressure Rating: Hastelloy C22 forged fittings deliver superior strength along with high resistance to both temperature and pressure. Confirm that the fittings you select are rated for your application’s temperature and operating pressure.

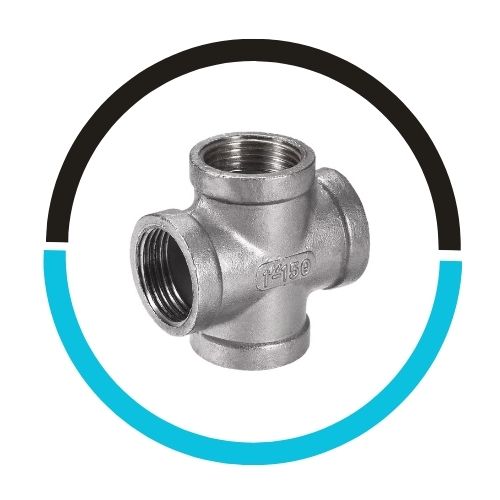

Size and thickness: Take into account the thickness of the fittings to be sure they satisfy the requirements of your piping system. Hastelloy C22 lattice fittings come in a range of sizes and configurations, such as elbow, tee, coupling, union and cross.
Quality and Standards: Seek out fittings that comply with ASTM, ASME, ANSI, DIN, and other industry standards. Meeting these standards guarantees the quality and efficiency of the fittings.
Manufacturing process: Hastelloy C22 forged fittings are generally produced through a forging process, which boosts their strength and durability. Give careful consideration to the manufacturing and quality control procedures to make certain the filler lives up to your expectations.
Supplier Reputation: Select a trustworthy supplier with a proven history of supplying high-quality Hastelloy C22 forged fittings. When picking a supplier, take into account reliability, experience, customer service, and supported features.
