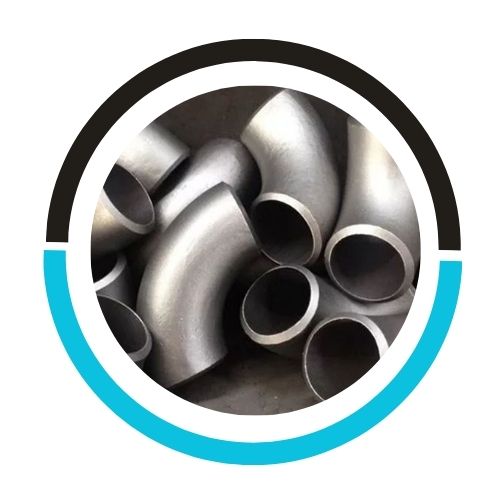

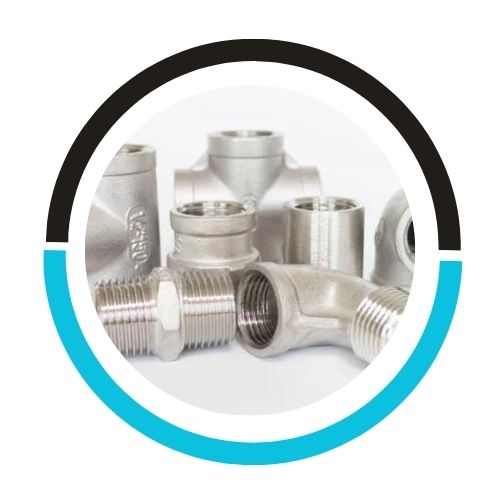

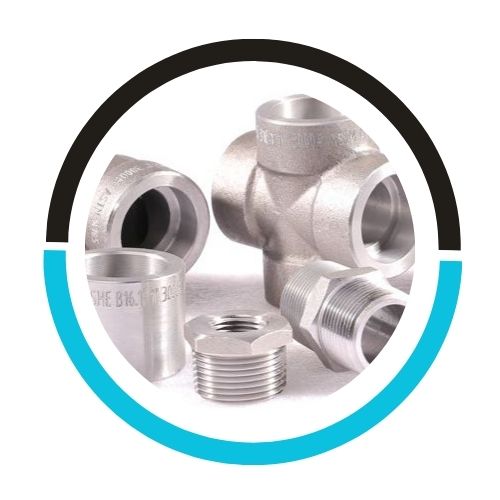

Incoloy ncoloy 825 forged fittings are durable components built for demanding industrial applications, particularly in oil and gas, petrochemicals, and power generation. Made from Incoloy 825 alloy, they deliver outstanding strength, longevity, and resistance to corrosion and elevated temperatures. Ranging from elbows to tees and couplings, these fittings serve a vital function in guaranteeing reliable connections and structural soundness in high-pressure settings. Thanks to their solid construction and dependable performance, Incoloy 825 forged fittings are essential for critical operations throughout a range of industries.
| Standard | ASTM B564 / ASME SB564 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 7180 LBS, 9000 LBS |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
At Sumakhsteel, we’re proud to be the largest supplier and manufacturer in the USA, delivering advanced solutions for every piping requirement you have. With cutting-edge manufacturing facilities strategically situated in the USA, we maintain an extensive stock of more than 25,000 tons of top-quality materials available on hand.
Reach out to us for a fast quote tailored to your requirement.
Nós fornecemos estes Incoloy 825 Forged Fittings de acordo com o Padrão DIN, ISO, JIS ou ANSI.
Corrosion Resistance: Incoloy 825 is recognized for its outstanding resistance to numerous corrosion products, such as acid reduction and oxidation, chloride ion stress-corrosion, pitting and crevice corrosion, which makes it appropriate for use in internal environments as complex as chemical processing, pollution control and marine applications.
High Temperature Strength: These materials preserve their high temperature mechanical properties, rendering them appropriate for high temperature applications like heat exchangers, medical devices and furnace components
Excellent weldability: Incoloy 825 forged fittings can be readily welded using conventional welding methods, which makes them simple to manufacture and install.
Excellent technology: The material offers a blend of high strength and rigidity, guaranteeing reliability and durability under operating conditions.
Dimensional Stability: Incoloy 825 keeps its shape and dimensions even in corrosive conditions at extreme temperatures, ensuring a strong seal and water-resistant connection
Simple machining: The Incoloy 825 can be machined with conventional methods, permitting complex shapes and precise fittings.
Incoloy 825 Forged Fittings serve applications as varied as the industries that use them, propelled mainly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Chemical applications: Incoloy 825 mesh fittings are frequently employed in chemical applications that demand resistance to sulfuric acid, phosphoric acid, and other corrosive substances. They are well suited for reactors, molds, and piping systems across many areas of the chemical industry.
Oil and Gas Industry: Incoloy 825 mesh fittings serve the oil and gas sector, especially in offshore sour gas zones where corrosion resistance is essential. They appear in pipelines, valves, and wellhead equipment.
Marine Environment: Incoloy 825 mesh fittings are applied in marine settings thanks to their resistance to chloride stress, corrosion cracking, and pitting. They are typically seen in marine pipeline systems, desalination plants, and the ocean disposal system.
Power performance: Incoloy 825 mesh fittings are utilized in electrical installations, particularly in locations with elevated temperatures, aggressive chemicals, and hot water. They also feature in boilers, heat exchangers, and steam turbine components.
Desalination equipment: Incoloy 825 mesh fittings work well for desalination plants where seawater and brine solutions occur. Their corrosion-resistant qualities make them ideal for evaporators, heat exchangers, and piping systems.
Understand your application requirements: Identify the working parameters, including temperature, pressure, humidity, and additional fittings. Incoloy 825 is recognized for its outstanding resistance to corrosion across a range of settings, including both acidic and alkaline solutions, which is why it is frequently applied in the chemical sector, oil and gas, and marine uses.
Compatibility: Verify that Incoloy 825 works well with the other parts of your system, including piping, valves, and equipment. Compatibility matters to avoid galvanic corrosion or other problems that arise from mixing dissimilar metals.
Size and Dimension Requirements: Select fittings that correspond to the size and dimensions of your piping setup. Take into account the pipe size, thread type, and connection method (socket weld or threaded) to guarantee correct alignment and installation.
Pressure Rating: Review the pressure rating of the fittings to confirm they can handle the operating pressures within your system. Incoloy 825 mesh fittings generally carry a high-pressure rating, but confirming they suit your particular requirements is important.
Quality and Certification: Buy fillers from trustworthy manufacturers that follow industry standards and quality control programs. Seek out fittings produced to standards like ASTM, ASME, and ANSI, and confirm they are properly accredited for your application.
