Discover the peak of quality and performance with Stainless Steel 317 Pipes featured on our product pages. Explore a wide-ranging selection of carefully designed solutions tailored to satisfy varied industrial requirements. Built with precision, our SS 317 Pipes comply with rigorous industry standards, ensuring outstanding durability and resistance to corrosion. As a respected supplier, we place customer satisfaction first by providing customizable choices, competitive rates, and fast delivery. Whether fueling construction, infrastructure, or industrial projects, our stainless steel pipes surpass expectations, establishing new benchmarks for excellence. Enhance your applications with our devoted dedication to quality and innovation, delivering reliability at every stage of the journey.
| Standard | ASTM A312, SA312 |
| Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24″ NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Thickness | 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Type | Seamless / ERW / Welded / Fabricated Pipes |
| Form | Round, Square, Rectangular, Oval, Hydraulic Etc |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Beveled End, Treaded |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering cutting-edge solutions for every one of your piping requirements. With advanced production facilities strategically situated across the USA, we maintain an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.
Reach out to us for a fast quote tailored to your requirement.
We supply these Stainless Steel 317 Pipe conforming to DIN, ISO, JIS or ANSI Standard.

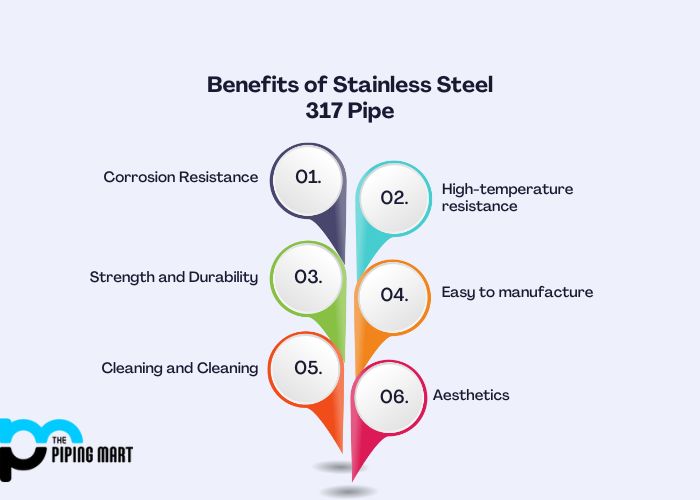

Corrosion resistance: A key benefit of stainless steel 317 pipe is its outstanding resistance to corrosion. These pipes hold up well in a variety of settings, such as acidic, alkaline and high chloride conditions. This quality makes them well-suited for uses where corrosion poses a risk, including the chemical sector, marine settings, and industrial applications.
High-temperature resistance: Stainless steel 317 pipe demonstrates strong resistance to high temperatures, keeping its mechanical properties even when heated. This quality makes them appropriate for use in settings where high temperatures frequently occur, such as heat exchangers, boilers and air filters.
Strength and Durability: Stainless steel 317 pipes offer outstanding strength and durability, guaranteeing dependable, lasting performance in tough applications. They are able to endure high-pressure situations and mechanical stresses without deforming or failing.
Easy to manufacture: Stainless steel 317 pipe is remarkably easy to fabricate, supporting a broad variety of processes such as welding, forming, machining etc. This makes adjusting pipes to fit specific needs easier and streamlines installation.
Cleaning and Cleaning: Stainless Steel 317 is inert and simple to clean, so in cases where cleaning matters, such as in the food and beverage industry and pharmaceutical and medical devices, its smooth surface stops bacteria from growing and permits thorough cleaning and disinfection.
Aesthetics: Stainless steel-317 pipes have an appealing smooth and polished appearance, making them fit for architectural storage alongside their practical functionality
Stainless Steel 317 Pipes applications are as varied as the industries they support, driven mainly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Chemical applications: Stainless steel 317 pipe is frequently employed in the corrosive and weathering sectors. They are able to handle challenging conditions and retain their integrity as time passes.
Oil and Gas Industry: In the oil and gas sector, stainless steel 317 pipes serve to move corrosive fluids like crude oil, natural gas and assorted chemicals. Their resistance to corrosion and elevated temperature render them fit for practical uses.
Power Generation: These pipes are applied in power plants to convey hot water, steam, and additional fluids under high temperatures and pressures. They withstand oxidation and corrosion, making them more suitable for the environment that surrounds us.
Food processing: Stainless steel 317 pipe is frequently applied in the food and beverage sector, where sanitation and corrosion resistance are of the utmost importance. It is fit for conveying a range of foods, beverages and chemical ingredients to accomplish the task without contaminating what it holds.
Pharmaceutical Industries: Stainless steel 317 pipe serves to safely move chemicals and chemicals within the pharmaceutical sector, where cleanliness and corrosion resistance matter.
Pulp and Paper Industry: These pipes are applied in the pulp and paper sector to move corrosive chemicals, bleaching agents and other fluids involved in paper production
Water Treatment Systems: Stainless steel 317 pipes are also employed in water treatment plants to convey corrosive chemicals used during the water treatment process. They are built durable and corrosion-resistant and guarantee long-term reliability.
Marine Applications: Owing to its resistance to salt water, stainless steel 317 pipes are applied in the marine setting for various purposes such as shipbuilding, offshore platforms and offshore structures
Implementation Requirements: Know the application in which the pipe will be used. Stainless steel 317 is frequently applied in hot settings, high-temperature uses, chemical processing, petrochemicals, pulp, paper etc. Confirm that stainless steel 317 fits your particular application.
Corrosion resistance: Stainless steel 317 delivers outstanding corrosion resistance, particularly in demanding conditions involving acid or chloride water. If your process entails contact with perishable substances, give preference to biodegradable materials.
Temperature resistance: Stainless steel 317 offers excellent thermal conductivity, which makes it well suited to high-temperature uses. Take into account the highest and lowest temperatures within the pipe, and verify that the stainless steel 317 can handle them.
Pressure Rating: Identify the pressure your application demands and pick a stainless steel 317 pipe with the proper pressure rating. Take into account operating pressures, pressure variations, and any regulatory requirements.
Size and Design: Pick the suitable pipe size and dimensions according to your application needs. Take into account aspects such as flow, space limitations, and compatibility with existing piping systems.
Construction Standards: Make certain the stainless steel 317 pipe complies with relevant construction standards and specifications, such as ASTM, ASME, or DIN standards. This guarantees quality, reliability and compatibility.
Quality and durability: Opt for stainless steel 317 pipes from trusted manufacturers recognized for high-quality products. Take into account clean materials, manufacturing processes, and quality control procedures to secure durability and long-term performance.
Costs to Consider: Weigh your requirements against the cost of stainless steel 317 pipe. Although quality and performance matter, keep your budget constraints in mind and seek options that deliver good value.
| Nominal Pipe Size in Inch | Outside Diameter in MM | Schedule 0S | STD Schedule 40S | XS Schedule 80S | Schedule 120 | Schedule 160 | XXS |
|---|---|---|---|---|---|---|---|
| 0.125 | 10.29 | 0.37 1.73 | 0.48 2.41 | ||||
| 0.375 | 17.15 | 0.64 1.65 | 2.3 .86 | 3.2 1.12 | |||
| 0.125 | 21.34 | 2.11 1.01 | 2.77 1.29 | 3.73 1.64 | 4.76 1.98 | 7.47 2.65 | |
| 0.25 | 13.72 | 1.65 0.48 | 2.24 0.64 | 3.02 0.81 | |||
| 0.75 | 26.67 | 2.11 1.30 | 2.87 1.71 | 3.91 2.23 | 5.56 2.94 | 7.82 3.69 | |
| 1.25 | 42.16 | 2.77 2.73 | 3.56 3.43 | 4.85 3.53 | 6.35 5.69 | 9.70 7.88 | |
| 1 | 33.40 | 2.77 2.12 | 3.38 2.54 | 4.55 3.28 | 6.35 4.30 | 9.09 5.75 | |
| 1.05 | 48.26 | 2.77 3.15 | 3.68 3.11 | 5.08 5.49 | 7.14 7.34 | 10.16 9.69 | |
| 2.5 | 73.03 | 3.05 5.34 | 5.16 8.76 | 7.01 11.58 | 9.53 15.14 | ||
| 2 | 60.33 | 2.77 3.98 | 3.91 5.52 | 5.54 7.59 | 8.74 11.28 | 11.07 13.65 | |
| 3.5 | 101.60 | 3.05 7.52 | 5.74 13.77 | 8.08 18.90 | |||
| 3 | 88.90 | 3.05 6.54 | 5.49 11.45 | 7.62 15.50 | 11.13 21.65 | 15.24 28.09 | |
| 5 | 141.60 | 3.40 11.74 | 6.55 22.10 | 9.52 31.41 | 15.88 49.83 | ||
| 4 | 114.30 | 3.05 8.48 | 6.02 16.31 | 8.56 22.65 | 11.13 28.32 | 13.49 34.02 | 17.12 41.63 |
| 8 | 219.08 | 3.76 20.25 | 8.18 43.16 | 12.70 65.59 | 23.01 112.90 | 18.26 90.44 | |
| 6 | 168.26 | 3.40 14.04 | 7.11 28.68 | 10.97 43.19 | 14.27 54.20 | 18.26 68.56 | 21.95 80.36 |
| 12 | 323.85 | 4.57 36.53 | 9.53 74.92 | 12.70 97.46 | |||
| 10 | 273.05 | 4.19 28.20 | 9.27 61.20 | 12.70 81.55 | 28.58 174.82 |
