Uncover the height of dependability and performance with our prominently featured Stainless Steel 316L Pipes. Explore our wide selection of thoughtfully engineered solutions, designed to satisfy varied industrial requirements. Every one of our SS 316L Pipes is custom-built with careful attention to detail, closely following industry standards for Excellent durability and resistance to corrosion. Being a trusted supplier, we place customer satisfaction first by providing customizable choices, competitive rates, and rapid delivery. Whether powering construction, infrastructure growth, or industrial ventures, our stainless steel pipes reliably surpass expectations, establishing new benchmarks for quality. Enhance your applications with our unwavering dedication to excellence and innovation, guaranteeing dependable performance at every stage of the journey.
| Standard | ASTM A312, A358 / ASME SA312, SA358 |
| Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24″ NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Thickness | 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |

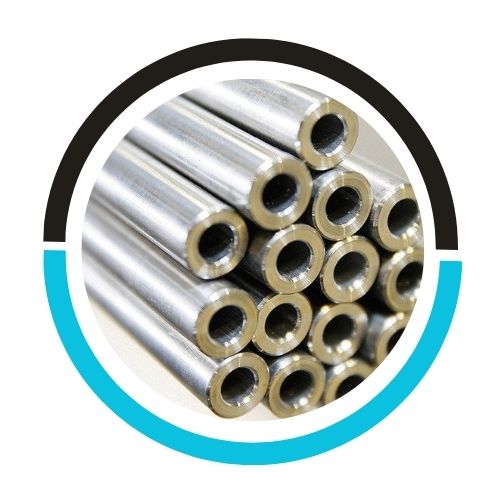

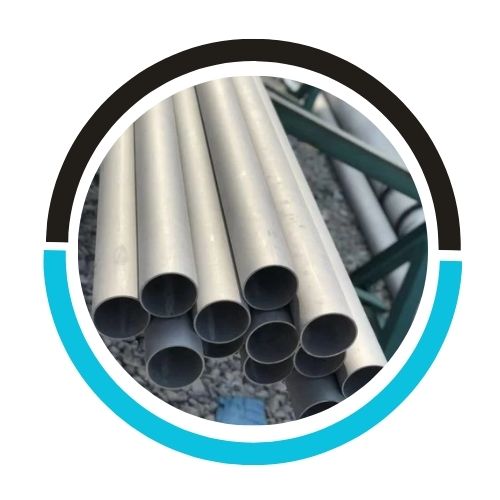

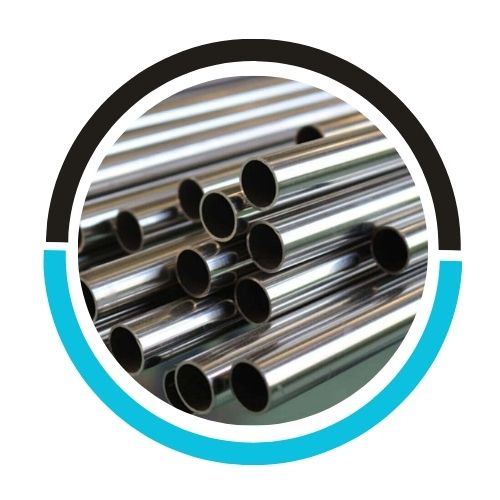

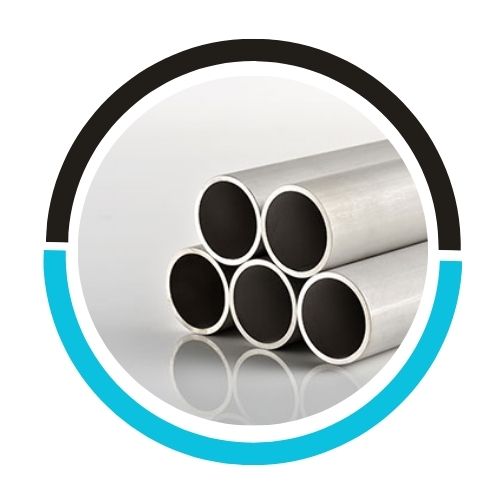

| Type | Seamless / ERW / Welded / Fabricated Pipes |

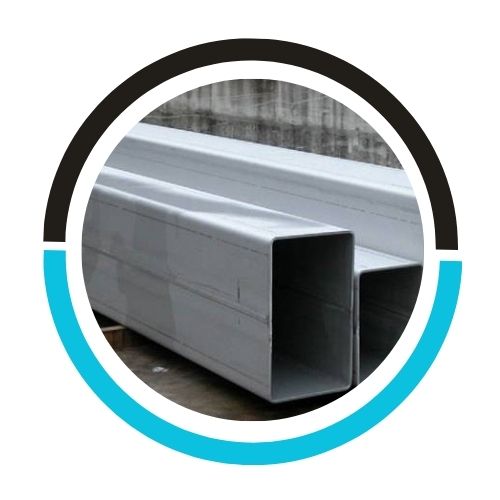

| Form | Round, Square, Rectangular, Oval, Hydraulic Etc |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Beveled End, Treaded |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
At Sumakhsteel, we’re proud to be the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated across the USA, we maintain an extensive stock of more than 25,000 tons of top-grade materials on hand and ready to ship.
Reach out to us for a fast quote tailored to your requirement.
We supply These Stainless Steel 316L Pipe conforming to DIN, ISO, JIS or ANSI Standard.

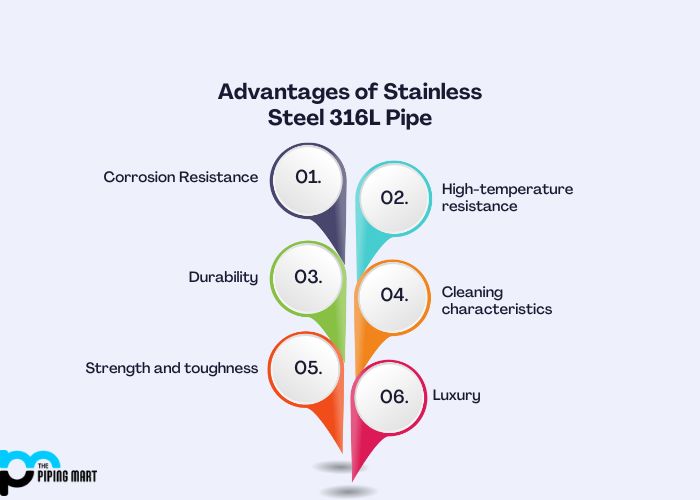

Corrosion Resistance: The primary benefit is outstanding corrosion resistance. Stainless steel 316L contains molybdenum, which provides its resistance to a range of corrosive agents, such as seawater, acidic chemicals, and other chlorides.
High-temperature resistance: Stainless steel 316L maintains its strength and integrity even at high temperatures, making it well-suited for applications that involve elevated temperatures or heat cycles
Durability: 316L stainless steel pipe is highly durable and offers a long service life, even in demanding environments. They withstand corrosion, wear and tear, ensuring longevity and reliability.
Cleaning characteristics: The smooth surface of the stainless steel 316L pipe makes it simple to clean and maintain. They are non-reactive and porous, making them appropriate for use in sectors such as food processing, pharmaceuticals and healthcare, where hygiene matters.
Strength and toughness: Stainless steel 316L demonstrates excellent mechanical properties, including high tensile strength, stiffness and flexibility. This makes it appropriate for applications that demand structural integrity and reliability under heavy loads.
Luxury: Stainless steel 316L pipe has a sleek and contemporary appearance, making it a favored choice in architectural and luxury applications. It can be polished to produce a range of surface finishes that boost their visual appeal.
Stainless Steel 316L Pipes find uses that are as varied as the industries they cater to, led mainly by the aerospace, railway, construction and automotive sectors along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Pharmaceutical Industry: Stainless steel 316L pipe is frequently employed in pharmaceutical facilities to move water and corrosive chemicals. Because they resist corrosion from acids, alkalis and other aggressive chemicals, they are well suited for this purpose.
Oil and Gas Industry: In the oil and gas sector, these pipelines carry petroleum and natural gas. For pipeline systems, the capacity to endure high pressure and environmental corrosion is essential.
Food processing: In the food and beverage sector, stainless steel 316L pipes are the preferred choice thanks to their hygienic qualities, resistance to food acid cleaning chemicals and corrosion. They are frequently employed to convey food, beverages and liquids used in food production.
Water treatment: Owing to its corrosion resistance and minimal maintenance needs, the water treatment plant relies on 316L stainless steel pipes to move treated water, chemicals and wastewater
Pharmaceutical Industry: In pharmaceutical facilities, these pipelines convey chemicals, drugs and pharmaceutical products. Their inert character and chemical resistance render them appropriate for such critical applications.
APPLICATIONS AND APPLICATIONS: Stainless steel 316L pipe serves in construction, for instance handrails, guards, and supports, as well as in plumbing systems within residential, commercial and industrial buildings
Marine Applications: Because of its corrosion resistance in salt water and deep marine settings owing to the den, stainless steel 316L pipe is frequently employed in marine applications, such as shipbuilding, offshore platforms and marinas.
Automotive Industry: Thanks to their corrosion resistance and their tolerance of high temperature and pressure, these pipes are used in the automotive industry for exhaust gases, fuel lines and hydraulic systems
Heat Exchangers: Because of their outstanding temperature performance and corrosion resistance, stainless steel 316L pipes are employed in various heat exchangers built for a range of industrial applications, including HVAC systems, chemical processing and energy generation
Materials: Stainless Steel 316L is a carbon-free version of 316 stainless steel, delivering outstanding corrosion resistance in specific settings. Confirm that the pipe is genuinely manufactured from 316L grade stainless steel.
Size and Design: Establish the pipe size, wall thickness, and length according to how you plan to use it. Take into account elements like flow, pressure, and space density.
Corrosion resistance: Stainless steel 316L is recognized for its outstanding corrosion resistance, particularly in demanding environments that contain chlorides, acids, or other corrosive substances. Verify that the hose is appropriate for the particular conditions it will encounter.
Temperature and Pressure Checks: Review the pipe’s temperature and pressure ratings so they align with your application’s operating conditions. Stainless steel 316L generally performs reliably across a wide range of temperatures and pressures.
Manufacturing standards: Confirm that the pipe meets the relevant manufacturing standards and certifications, such as ASTM (American Society for Testing and Materials) standards or ASME (American Society of Mechanical Engineers) codes, and that you have secured quality and reliability.
Surface Finish: Think about the necessary surface finish of the pipe for aesthetic or functional reasons. Your choices might include polished, brushed, or mill-finished.
Compatibility: Verify compatibility with the other parts or components in your system, such as fittings, valves, or additional pipeline components.
Cost and Finance: Assess how affordable stainless steel 316L pipe is relative to your budget, taking into account quality, durability, and long-term maintenance expenses.
Supplier Reputation: Select a reputable supplier that offers high-quality stainless steel pipe together with excellent customer service. Read reviews, seek recommendations, and inquire about the supplier’s experience and track record.
| 316L Stainless Steel Pipe OD mm | Pipe WT mm | in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
