Home > Stainless Steel > Stainless Steel 17-7 PH Pipe
Discover unmatched quality and performance with Stainless Steel 17-7 PH Pipes, prominently showcased on our product pages. Browse a wide selection of carefully engineered solutions designed to satisfy the strict requirements of numerous industrial applications. custom-built with precision, our SS 17-7 PH Pipes comply with stringent industry standards, delivering outstanding durability and corrosion resistance. As a reliable supplier, we put customer satisfaction first by providing customizable options, competitive pricing, and fast delivery. Whether backing construction, infrastructure, or industrial projects, our stainless steel pipes exceed expectations, setting fresh benchmarks for excellence. Elevate your operations with our steadfast dedication to quality and innovation, ensuring dependable reliability at every step.
| Standard | 17-7PH / 1.4568 |
|---|---|
| Size | 1/8” to 48”, Seamless Pipes up to 24” |
| Designation | ASTM A312, ASME SA312, ASTM A269, ASTM A213, ASTM A249, ASTM A270, ASTM A511, ASTM A554, ASTM A778, ASTM A908, ASME SA249 |
| Thickness | 0.4mm up to 30.00 mm, Schedules 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH |
| Type | Seamless, Welded, Cold Drawn, Structural, Hot Finished, Extruded, Annealed & Pickled |
| Form | Round, Square, Rectangular |
| Length | Standard 6-6.1 meter length, 20 Ft, Custom Cut Lengths |
| Application | Variety of springs and washers, Chemical processing equipment, Heat exchangers, Power boilers, Superheater tubes, Components used in high-strength/high-temperature conditions. |
| Element | Content (%) |
|---|---|
| Chromium, Cr | 16-18 |
| Nickel, Ni | 6.50 – 7.75 |
| Manganese, Mn | 1 max |
| Silicon, Si | 1 max |
| Aluminum, Al | 0.75 – 1.50 |
| Carbon, C | 0.09 max |
| Phosphorous, P | 0.040 max |
| Sulfur, S | 0.030 max |
| Iron, Fe | Balance |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 1170 MPa | 170000 psi |
| Yield strength | 965 MPa | 140000 psi |
| Modulus of elasticity | 204 GPa | 29600 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break | 6% | 6% |
| Hardness, Rockwell C | 38 | 38 |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for all your piping requirements. With modern production facilities strategically situated in the USA, we maintain an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.
Reach out to us for a fast quote tailored to your requirement.
These Stainless Steel 17-7 PH Pipes are supplied by us in accordance with DIN, ISO, JIS or ANSI Standard.

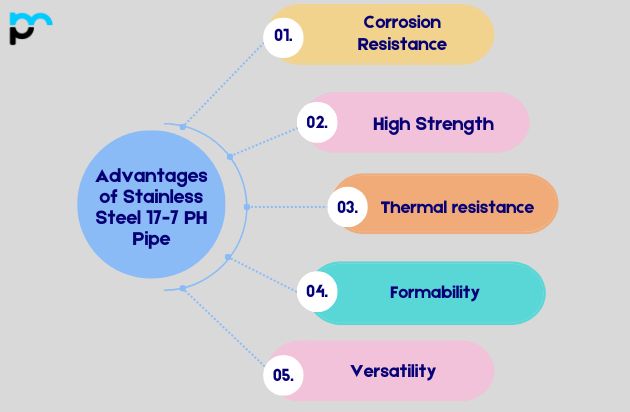

Corrosion Resistance: In general, Stainless steel offers excellent resistance to corrosion, and a pH of 17-7 is no different. It withstands a range of corrosive substances, such as acids, alkalis and salt water, which makes it well-suited to numerous applications, especially within the marine, chemical and aerospace industries.
High Strength: Following heat treatment, 17-7 PH stainless steel displays great strength and toughness, which makes it appropriate for uses that demand structural integrity and durability. This strength is also maintained at elevated temperatures, delivering outstanding performance in extreme conditions.
Thermal resistance: Delivers extremely high thermal resistance, which makes it appropriate for use in settings such as industrial furnaces, furnaces and vents where thermal resistance is called for
Formability: Even with its high strength, 17-7 PH stainless steel keeps excellent formability, which makes it simple to produce in a range of shapes and sizes. This characteristic makes it attractive for uses that call for complex geometries or custom designs.
Versatility: The blend of corrosion resistance, strength and manufacturability makes 17-7 PH stainless steel a versatile material, including for aerospace products, chemical application equipment, springs, shafts and automotive parts.
Stainless Steel 17-7 PH Pipes have applications as varied as the industries they cater to, powered mainly by the aerospace, railway, construction and automotive sectors along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Aerospace: These stainless steels are frequently applied in aerospace settings owing to their high strength-to-weight ratio, corrosion resistance, and capacity to endure extreme temperatures. They appear in aircraft components such as aircraft, landing gear, and engine parts.
Oil and Gas: Within the oil and gas sector, 17-7 PH stainless steel pipes serve in pipelines, wellhead equipment, downhole equipment, and more. Their corrosion resistance makes them environmentally friendly for handling aggregate roughness and water corrosion.
Chemical applications: The resistance to corrosion and high temperatures of 17-7 PH stainless steel makes it well suited for chemical uses such as reactors, heat exchangers, and piping systems that need to be strong and dependable.
Medical devices: Certain medical devices call for materials offering high strength, corrosion resistance, and biocompatibility. Stainless steel with a pH of 17-7 is applicable in surgical instruments, orthopedic implants, and medical containers.
Automotive: Within the automotive sector, 17-7 PH stainless steel pipe appears in exhaust systems, fuel lines, and other components where corrosion resistance and high-temperature resistance are needed to provide has been in operation for a long time.
Marine Applications: 17-7 pH stainless steel serves in marine components, boat components, and offshore structures because of its resistance to corrosion in the marine environment
Machine parts for precision: Its blend of high strength, good formability, and corrosion resistance makes 17-7 PH stainless steel well suited for a range of precision machine parts such as springs, shafts, and fasteners
Food and Beverage Industry: Stainless steel is widely used across the food and beverage industry thanks to its cleanliness and corrosion properties. 17-7 PH Stainless steel pipe can serve in process equipment, tanks, and piping systems.
Material: Stainless Steel 17-7 PH is a precipitation-hardened stainless steel that contains chromium, nickel, aluminum, and additional elements. Verify that the pipe materials align with your application needs, including capacity, corrosion resistance, strength, and heat resistance.
Size and Dimensions: Identify the necessary pipe size and diameter according to your project’s specifications. Take into account elements like thickness, wall thickness, and height so that it suits your design or application.
Pressure and Temperature Analysis: Review your application’s performance needs, including pressure and temperature requirements. Select a stainless steel 17-7 PH pipe with the appropriate pressure and temperature rating to endure the conditions without failing.
Corrosion Resistance: Stainless steel 17-7 PH offers excellent corrosion resistance, which makes it appropriate for a range of environments, including marine and chemical applications. Confirm that the pipe has the corrosion resistance needed for your particular environment.
Strength and mechanical properties: Stainless steel with a pH of 17-7 is recognized for its high strength and outstanding mechanical properties, including durability. Evaluate and choose the strength requirements of your application pipe with sufficient mechanical properties to endure load and stress conditions.
Surface Finish: Take into account the surface finish for stainless steel 17-7 PH pipe according to your application needs. Choices may include polished, brushed, or annealed finishes, each providing aesthetic and functional qualities.
Certifications and Standards: Confirm that the stainless steel 17-7 PH pipe satisfies suitable industry standards and certifications, such as ASTM, ASME, or EN standards. Compliance with this standard guarantees quality, efficiency and safety.
Supplier Name: Select a reputable supplier or manufacturer recognized for delivering quality stainless steel. Examine customer reviews, certifications, and industry listings to confirm reliability and product accuracy.
| Pipe Size | O.D. inches | Pipe Schedule | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 10 | 40 | STD | 80 | XH | 160 | XXH | ||
| 1/8 | 0.405 | .1383 | .1863 | .2447 | .2447 | .3145 | .3145 | ||
| 1/4 | 0.540 | .2570 | .3297 | .4248 | .4248 | .5351 | .5351 | ||
| 3/8 | 0.675 | .3276 | .4235 | .5676 | .5676 | .7388 | .7388 | ||
| 1/2 | 0.840 | .5380 | .6710 | .8510 | .8510 | 1.088 | 1.088 | 1.304 | 1.714 |
| 3/4 | 1.050 | .6838 | .8572 | 1.131 | 1.131 | 1.474 | 1.474 | 1.937 | 2.441 |
| 1 | 1.315 | .8678 | 1.404 | 1.679 | 1.679 | 2.172 | 2.172 | 2.844 | 5.214 |
| 1-1/4 | 1.660 | 1.107 | 1.806 | 2.273 | 2.273 | 2.997 | 2.997 | 3.765 | 5.214 |
| 1-1/2 | 1.900 | 1.604 | 2.085 | 2.718 | 2.718 | 3.631 | 3.631 | 4.859 | 6.408 |
| 2 | 2.375 | 1.604 | 2.638 | 3.653 | 3.653 | 5.022 | 5.022 | 7.444 | 9.029 |
| 2-1/2 | 2.875 | 2.475 | 3.531 | 5.793 | 5.793 | 7.661 | 7.661 | 10.01 | 13.69 |
| 3 | 3.500 | 3.029 | 4.332 | 7.576 | 7.576 | 10.25 | 10.25 | 14.32 | 18.58 |
| 3-1/2 | 4.000 | 3.472 | 4.973 | 9.109 | 9.109 | 14.98 | 12.50 | 22.85 | |
| 4 | 4.500 | 3.915 | 5.613 | 10.79 | 10.79 | 14.98 | 14.98 | 22.51 | 27.54 |
| 5 | 5.563 | 6.349 | 7.770 | 14.62 | 14.62 | 20.78 | 20.78 | 32.96 | 38.55 |
| 6 | 6.625 | 7.585 | 9.289 | 18.97 | 18.97 | 28.57 | 28.57 | 45.30 | 53.16 |
| 8 | 8.625 | 9.014 | 13.40 | 28.55 | 28.55 | 43.39 | 43.39 | 74.69 | 72.42 |
| 10 | 10.750 | 15.19 | 18.70 | 40.48 | 40.48 | 64.33 | 54.74 | ||
| 12 | 12.750 | 20.93 | 24.16 | 53.52 | 49.56 | 88.51 | 65.42 | ||
| 14 | 14.000 | 42.05 | 63.37 | 54.57 | 106.1 | 72.09 | |||
| 16 | 16.000 | 42.05 | 82.77 | 62.58 | 136.5 | 82.77 | |||
| 18 | 18.000 | 47.39 | /104.8 | 70.59 | 170.8 | 93.45 | |||
| 20 | 20.000 | 52.73 | 122.9 | 78.60 | 208.9 | 104.1 | |||
| 24 | 24.000 | 63.41 | 171.2 | 94.62 | 296.4 | 125.50 | |||
