Alloy Steel Tube Fittings

Home > Alloy Steel> Alloy Steel Tube Fittings

Alloy Steel Tube Fittings Manufacturer & Supplier In California, USA.

Alloy Steel Buttweld Fittings Price In USA, Alloy Steel Tube Fittings Dealer In California, Alloy Steel Butt weld Reducer Exporter In USA, Chrome Moly Tube Fittings Manufacturer In Texas, USA.

Table of Contents

Enhance your mechanical systems with our premium Alloy Steel Tube Fittings, thoughtfully custom-made to boost performance and longevity under demanding conditions. Built with accuracy and reinforced for toughness, these fittings ensure exceptional durability and protection against corrosion. Count on our dedication to quality, competitive pricing, and rapid delivery to maximize the effectiveness of your projects.

Alloy Steel Tube Fittings Specifications

Standard : ASTM A234 / ASME SA234

Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : 1/8” NB TO 48” NB (Seamless & 100% X-Ray Welded, Fabricated).

Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

Grades : WPBW, WPHY 42, WPHY 46, WPHY 52, WPHY 60, WPHY 65 & WPHY 70.

Type : Seamless / Welded / Fabricated

Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Alloy Steel Tube Fittings Chemical Composition

Grade C Mn P S Si Cr Mo Others
WP1 0.28 0.30-0.90 0.045 0.045 0.10-0.50 – 0.44-0.65 –
WP12 CL1, WP12 CL2 0.05-0.20 0.30-0.80 0.045 0.045 0.60 0.80-1.25 0.44-0.65 –
WP11 CL1 0.05-0.15 0.30-0.60 0.030 0.030 0.50-1.00 1.00-1.50 0.44-0.65 –
WP11 CL2, WP11 CL3 0.05-0.20 0.30-0.80 0.040 0.040 0.50-1.00 1.00-1.50 0.44-0.65 –
WP22 CL1, WP22 CL3 0.05-0.15 0.30-0.60 0.040 0.040 0.50 1.90-2.60 0.87-1.13 –
WP24 0.05-0.10 0.30-0.70 0.020 0.010 0.15-0.45 2.20-2.60 0.90-1.10 *A
WP5 CL1, WP5 CL3 0.15 0.30-0.60 0.040 0.030 0.50 4.0-6.0 0.44-0.65 –
WP9 CL1, WP9 CL3 0.15 0.30-0.60 0.030 0.030 1.00 8.0-10.0 0.90-1.10 –
WPR 0.20 0.40-1.06 0.045 0.050 – – – *B
WP91 0.08-0.12 0.30-0.60 0.020 0.010 0.20-0.50 0.85-1.05 0.85-1.05 *C
WP911 0.09-0.13 0.30-0.60 0.020 0.010 0.10-0.50 0.90-1.10 0.90-1.10 *D
WP92 0.07-0.13 0.30-0.60 0.020 0.010 0.50 0.30-0.60 0.30-0.60 *E

Alloy Steel Tube Fittings Mechanical Properties

Grade Tensile Strength, min. ksi[MPa] Yield Strength, min. ksi[MPa] Elongation, min. %
Longitudinal Transverse
WP1 55-80[380-550] 30[205] 20 13
WP12 CL1 60[415] 32[220] 22 14
WP12 CL2 70[485] 40[275] 22 14
WP11 CL1 60[415] 30[205] 22 14
WP11 CL2 70[485] 40[275] 22 14
WP11 CL3 75[520] 45[310] 22 14
WP22 CL1 60[415] 30[205] 22 14
WP22 CL3 75[520] 45[310] 22 14
WP24 85[585] 60[415] 20 –
WP5 CL1 60[415] 30[205] 22 14
WP5 CL3 75[520] 45[310] 22 14
WP9 CL1 60[415] 30[205] 22 14
WP9 CL3 75[520] 45[310] 22 14

Top Alloy Steel Tube Fittings Manufacturing Company in California

At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically positioned across the USA, we maintain an extensive stock of more than 25,000 tons of top-quality materials kept ready and available in inventory.

ASTM A234 Alloy Steel Tube Fittings Price In USA, Alloy Steel Buttweld Fittings Suppliers in California, USA.

Reach out to us for a fast quote tailored to your requirement.

We supply these Alloy Steel Tube Fittings conforming to DIN, ISO, JIS or ANSI Standard.

Request a Quote

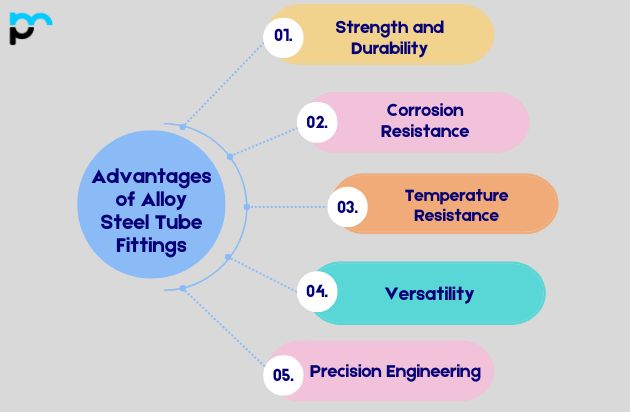

Advantages of Alloy Steel Tube Fittings

Advantages of Alloy Steel Tube Fittings
  • Strength and Durability: Alloy steel is celebrated for its outstanding strength and durability. It can endure high-pressure applications and severe environments without sacrificing its integrity, guaranteeing long-term reliability.
  • Corrosion Resistance: Alloy steel tube fittings offer strong resistance to corrosion, oxidation, and other types of chemical deterioration. This makes them ideal for use in corrosive settings, like those encountered in the oil and gas industry or marine applications.
  • Temperature Resistance: Alloy steel preserves its mechanical properties across a broad span of temperatures, from extreme cold to intense heat. This makes it well-suited for applications where temperature swings are frequent or where elevated temperatures are present, such as in industrial processes.
  • Versatility: Alloy steel tube fittings are available in an array of shapes, sizes, and configurations to fit different applications. They can be readily adapted to various piping systems and work with a broad range of fluids and gases.
  • Precision Engineering: Alloy steel tube fittings are frequently precision-engineered to satisfy demanding industry standards and specifications. This guarantees tight tolerances, a proper fit, and dependable performance, lowering the chance of leaks or failures.

Types of Alloy Steel Tube Fittings

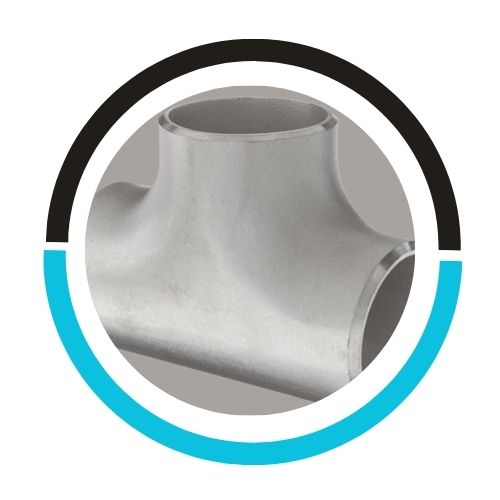

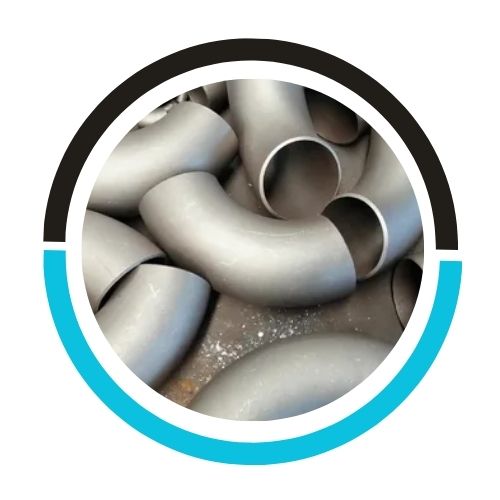

Inconel 600 Tube Fittings​ in USA
Alloy Steel Butt weld Elbow
Alloy Steel Butt weld Cross

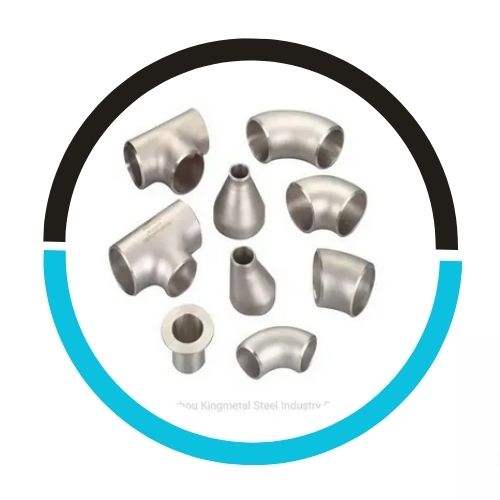

Inconel 600 Buttweld Tube Fittings in USA
Alloy Steel Butt weld Reducer

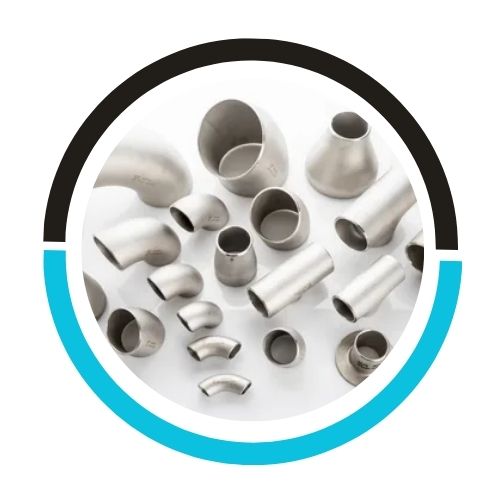

Inconel 600 Welded Tube Fittings in USA
Alloy Steel Butt weld Stub End
Alloy Steel Butt weld Tube Bend

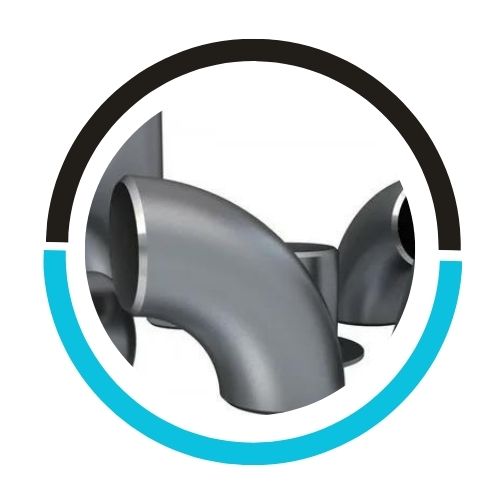

2.4816 Inconel 600 Weld Fitting in USA
Alloy Steel Seamless Tube Fittings

Alloy Steel Tube Fittings Uses

Application Industry

Alloy Steel Tube Fittings applications are as varied as the industries they cater to primarily driven by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Oil & Gas Industry

Automotive Industry

Petro Chemical Industry

Power Generation Industry

  • Oil and Gas Industry: Alloy steel tube fittings see extensive use throughout the oil and gas industry across a range of applications including drilling, production, refining, and transportation. They serve in pipelines, wellheads, valves, and manifold systems, where they need to endure high pressures, corrosive surroundings, and temperature swings.
  • Chemical Processing: Within chemical processing facilities, alloy steel tube fittings are used in piping systems for managing and moving corrosive chemicals, acids, and solvents. Because they resist corrosion and hold their mechanical integrity under demanding conditions, they are well suited to these applications.
  • Power Generation: Alloy steel tube fittings serve a vital function in power generation plants, encompassing thermal power plants, nuclear power plants, and renewable energy installations. They find use in boiler systems, steam turbines, condensers, and heat exchangers, where they need to endure elevated temperatures and pressures.

How to Choose the Right Alloy Steel Tube Fittings

  • Identify Application Requirements: Get familiar with the operating conditions, such as pressure, temperature, fluid type, flow rate, and environmental factors. Knowing this will help identify the specifications the fittings must meet.
  • Material Selection: Choose the right alloy steel material according to the application requirements and its compatibility with the fluid or gas being transported. Take into account aspects like corrosion resistance, strength, and temperature resistance.
  • Fitting Type: Figure out which type of fitting your piping system needs, whether elbows, tees, couplings, adapters, or valves. Weigh factors like space limitations, flow direction, and ease of access for installation and maintenance.

Alloy Steel Seamless Butt weld Tube Fittings Price In USA, Alloy Steel Stub End Dealer In Texas, Alloy Steel Tub Elbow Exporter In California, ANSI B16.9 Alloy Steel Welded Tube Fittings Manufacturer In Texas, USA.

Are Alloy Steel Tube Fittings Recyclable?

Yes, Alloy steel tube fittings can be recycled. They can be melted and reprocessed into new alloy steel products, cutting down on the demand for raw materials and reducing waste. Recycling supports sustainability and environmental protection across a range of industries.

FAQ (Frequently Asked Questions)

Can alloy steel Tube Fittings be welded or machined?

Yes, Alloy steel tube fittings are suitable for both welding and machining. Welding methods like arc welding, TIG welding, and MIG welding are frequently used to connect alloy steel fittings. Machining operations including drilling, milling, and turning can likewise be applied to form and tailor alloy steel tube fittings to meet particular needs.


Are alloy steel Tube Fittings susceptible to corrosion?

Alloy steel tube fittings may be prone to corrosion, depending on the particular alloy makeup and the surrounding conditions. That said, numerous alloy steel formulations contain elements that improve resistance to corrosion, making them appropriate for use in corrosive settings when the right material selection and surface treatments are applied.

Can Alloy steel Tube Fittings be used for underground applications?

Yes, Alloy steel tube fittings are suitable for underground applications when appropriate corrosion protection measures are in place. Coatings such as epoxy, zinc, or corrosion-resistant alloys can be applied to the fittings to improve their resistance to corrosion caused by soil moisture and other underground environmental factors, guaranteeing long-term performance.
