| Specifications | : | ASTM B863 ASME SB863 |
| Dimensions | : | ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360 |
| Length | : | 100 mm TO 6000 mm |
| Diameter | : | 10 mm To 100 mm |
| Specialize | : | Filler Wire, Coil Wire, Electrode Wire, Welding Wire. |
| Grade | Ti | C | Fe | Al | V | O |
| Titanium Grade 5 | 90 min | – | 0.25 max | 6 min | 4 min | 0.02 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for all your piping requirements. With cutting-edge manufacturing facilities strategically positioned across the USA, we maintain an extensive inventory of more than 25,000 tons of top-grade materials kept ready in stock.
Reach out to us for a fast quote tailored to your requirement.
We provide these Titanium Gr 5 Wire in accordance with DIN, ISO, JIS or ANSI Standard.

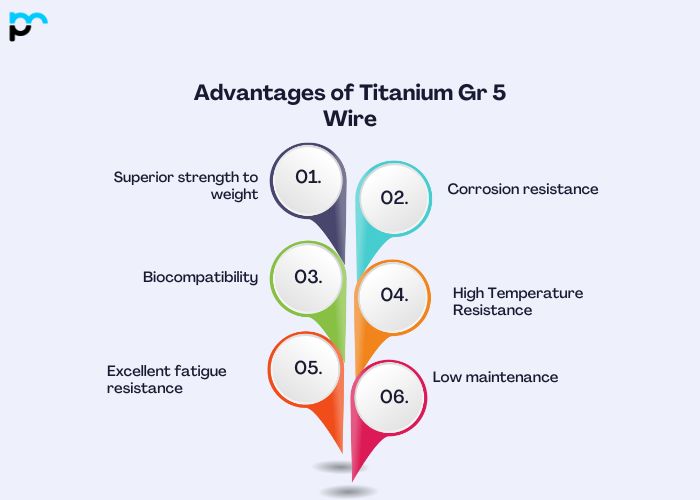

Superior strength to weight: Titanium Grade 5 wire has an incredible strength-to-weight ratio that surpasses that of most other metals. This makes it particularly valuable in applications where weight must be reduced without saving energy.
Corrosion resistance: Titanium Grade 5 is highly resistant to corrosion, and even in demanding environments like saltwater, chemical processing, and marine applications, this corrosion resistance provides durability and reliability under extreme conditions.
Biocompatibility: Titanium is biocompatible, meaning it does not harm living tissue and is well tolerated by the human body. This characteristic makes Grade 5 wire perfect for medical implants, including surgical instruments, orthopaedic implants, and dental implants.
High Temperature Resistance: Titanium Series 5 possesses strong high-temperature mechanical properties, which makes it well suited for applications that involve high temperatures, such as aerospace products, automotive exhaust systems and industrial equipment
Excellent fatigue resistance: The alloy offers outstanding fatigue resistance, enabling it to endure cyclic loads and stresses over extended periods without failing. This makes it well suited for applications where durability and reliability are critical, such as spring and wiring components in machinery.
Titanium Gr 5 Wire applications are as varied as the industries they cater to, led mainly by the aerospace, railway, construction and automotive sectors along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Aerospace Industry: Titanium grade 5 wire sees extensive use in the aerospace sector owing to its low weight combined with high strength. It serves in aircraft components including landing gear, utilities, engine parts and packaging.
Medical applications: Titanium grade 5 wire offers biocompatibility and resistance to corrosion, which makes it well suited for medical uses. It appears in implant surgery, prosthetics, orthopaedics, and medical devices.
Automotive Industry: Within the automotive sector, titanium grade 5 wire serves in numerous roles to cut weight while preserving durability. It is applied in exhaust systems, springs, valves, connecting rods, and other high-performance automotive parts.
Marine Applications: Thanks to its outstanding corrosion resistance, titanium grade 5 wire is employed in marine settings. It is used in marine applications like propeller shafts, valves and fasteners, where resistance to corrosion is called for.
Chemical Industry: Titanium grade 5 wire withstands most chemicals, which makes it appropriate for use in medical devices including heat exchangers, reactors, valve and piping systems
Function: State the application for which the titanium wire is intended. Titanium Grade 5 is frequently chosen for aerospace, medical implants, marine vessels, and other demanding uses because of its outstanding strength, favorable weight characteristics, and resistance to corrosion.
Diameter: Think about the wire diameter that your specific application calls for. Titanium tubes come in a range of sizes, from very fine to soft. The width will hinge on considerations like strength needs and the intricacy of the manufactured part.
Grade and Specification: Titanium Grade 5 (Ti-6Al-4V) is the titanium alloy most widely used across industrial applications. That said, this composition varies in details and grades. Confirm that the wire you select satisfies the specifications your application demands.
Quality and purity: Titanium wire has to comply with particular standards to guarantee performance and longevity. Seek out suppliers or manufacturers known for making quality titanium goods. Verify that the wire is free from flaws and impurities that might compromise its mechanical properties.
Reputation: Select a trustworthy supplier or manufacturer with a history of delivering dependable titanium products. Examine reviews, testimonials, and customer feedback to gauge a supplier’s standing for quality and customer service.
Yes, Titanium Grade 5, which is also referred to as Ti-6Al-4V, is weldable. In fact, it ranks among the most widely used titanium alloys and is recognized for its outstanding weldability. That said, correct welding methods and procedures need to be observed to guarantee a strong and dependable weld. Welding titanium demands careful attention because of its reactive nature and susceptibility to contamination. Methods like gas tungsten arc welding (GTAW), or TIG welding, are frequently employed when welding titanium Grade 5. On top of that, appropriate shielding gas, a clean welding environment, and accurate control of welding parameters are essential for the successful welding of titanium.
