Stainless Steel 316Ti Forged Fittings

Home > Stainless Steel > Stainless Steel 316Ti Forged Fittings

Stainless Steel 316Ti Forged Fittings Manufacturer, Exporter and Supplier in California, USA

Stainless Steel 316Ti Forged Fittings Supplier in Texas, SS 316Ti Forged Fittings Manufacturer in California, 316Ti Stainless Steel Forged Fittings Supplier and Manufacturer in Texas, USA

Stainless Steel 316Ti Forged Fittings stand as indispensable components meticulously custom-crafted from Stainless Steel 316Ti, a grade celebrated for its outstanding corrosion resistance and exceptional durability, particularly in tough, high-temperature environments. Composed of iron, chromium, and a notable titanium addition, these fittings represent strength and toughness in severe conditions, especially those prone to corrosion and intense heat. Providing an assortment of fittings such as elbows, tees, couplings, and unions, Stainless Steel 316Ti Forged Fittings deliver reliable performance across a wide variety of applications.

Stainless Steel 316Ti Forged Fittings Specifications

Specifications : ASTM A182 & ASME SA182

Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

Size : 1/8” NB up to 4” NB (Socketweld & Screwed-Threaded)

Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

Type : Socketweld Fittings, Screwed-Threaded Fittings

Stainless Steel 316Ti Forged Fittings Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N
SS 316Ti	0.08 max	2.0 max	0.75 max	0.045 max	0.030 max	16.00 – 18.00	2.00 – 3.00	10.00 – 14.00	68.395 min

Stainless Steel 316Ti Forged Threaded Fittings Price In California, SS 316Ti Unions, SS 316Ti Forged Socketweld Fittings Manufacturer And Supplier In California, USA.

Stainless Steel 316Ti Forged Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1399 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

Top Stainless Steel 316Ti Forged Fittings Manufacturing Company in California

At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically positioned across the USA, we hold an extensive inventory of more than 25,000 tons of top-grade materials kept ready in stock.

Reach out to us for a fast quote tailored to your requirement.

We provide Stainless Steel 316Ti Forged Fittings conforming to DIN, ISO, JIS or ANSI Standard.

Stainless Steel 316Ti Forged Socket Weld Full Coupling manufacturer And Supplier In Texas, USA.

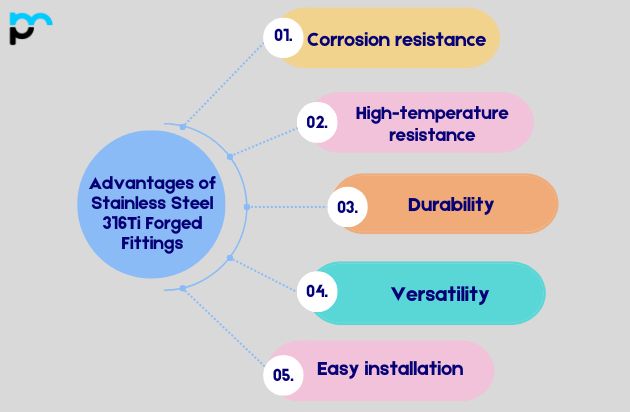

Advantages of Stainless Steel 316Ti Forged Fittings

Corrosion Resistance: Stainless steel 316Ti offers excellent corrosion resistance, including protection against pitting and crevice corrosion, even in harsh chloride-rich or acidic settings. This characteristic guarantees a durable and dependable service life in corrosive situations.
High-temperature strength: The inclusion of titanium in stainless steel 316Ti boosts both its strength and its stability at high temperatures. This makes it well suited for uses where high-temperature exposure is an issue, delivering reliable performance in demanding conditions.
Durability: Strong and able to withstand corrosion and oxidation, stainless steel 316Ti forged fittings deliver outstanding durability, cutting down on downtime and maintenance needs.
Versatility: You can find these fittings in a range of shapes and sizes, such as elbow, tee, union and union, giving the flexibility to satisfy varied application needs across industries like chemical processing, petrochemical, pharmaceutical and food processing
Easy installation: Owing to their mesh fittings, stainless steel 316Ti fittings are precisely engineered for straightforward installation and dependable connection, guaranteeing an effective connection and lowering downtime during maintenance or repair.

Types of Stainless Steel 316Ti Forged Fittings

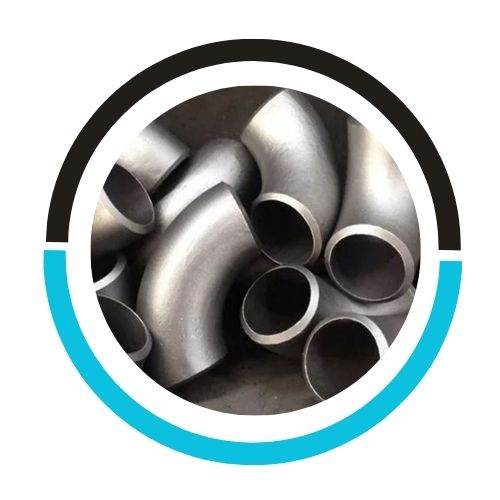

Stainless Steel 316Ti Pipe Cap, 316Ti SS Forged Couplings Exporter In California, SS 316Ti Forged Elbow, 316Ti SS Equal Tee Manufacturer and Supplier In Texas, USA

Stainless Steel 316Ti Forged Fittings Uses

Application Industry

Owing to their outstanding characteristics, Stainless Steel 316Ti Forged Fittings serve as vital parts throughout numerous industrial fields. Celebrated for their resistance to corrosion, they are extensively used in marine settings, withstanding the harsh demands of saltwater exposure with durability and dependability. Within the construction sector, stainless steel fasteners are crucial to structural assemblies, delivering dependable connections while preserving structural soundness in outdoor and exposed conditions.

Construction

Aviation Industry

Automotive Manufacturing

Power Generation Industry

Chemical applications: Stainless steel 316Ti mesh fittings withstand corrosion from a wide range of chemicals, which makes them well suited for chemical plants where corrosive substances are routinely handled.
Oil and Gas Industry: Thanks to their strong resistance to corrosion and their durability in demanding conditions, these fittings serve in oil refineries, offshore drilling rigs and pipelines
Petrochemical Industry: At petrochemical plants, where both high temperatures and corrosive chemicals occur, 316Ti mesh fittings are frequently chosen for their outstanding resistance to each of these.
The pharmaceutical sector favors stainless steel 316Ti since cleanliness and corrosion resistance matter greatly in this field.

How to Choose the Right Stainless Steel 316Ti Forged Fittings

Functional Requirements: Define particular parameters like temperature, pressure, environmental corrosion, and mechanical loads. Confirm that the fittings you select can endure these conditions without failing.
Materials: Stainless steel 316Ti is an altered form of 316 stainless steel that includes titanium to enhance resistance to sensitization and intergranular corrosion. Confirm that fittings are constructed from 316Ti grade material for optimal performance in critical areas.
Standards and Specifications: Confirm that the fitting complies with applicable industry standards and specifications, including ASTM, ASME, ANSI, DIN, or EN standards. Following these standards guarantees quality, efficiency, and compatibility with other components of the system.

Are Stainless Steel 316Ti Forged Fittings magnetic?

Stainless steel 316Ti forged fittings show mild magnetic behavior owing to ferrite within their microstructure. Though less magnetic than ferritic stainless steels, the titanium stabilization lowers magnetism, rendering them generally non-magnetic in real-world use, yet they may display some attraction under particular circumstances.

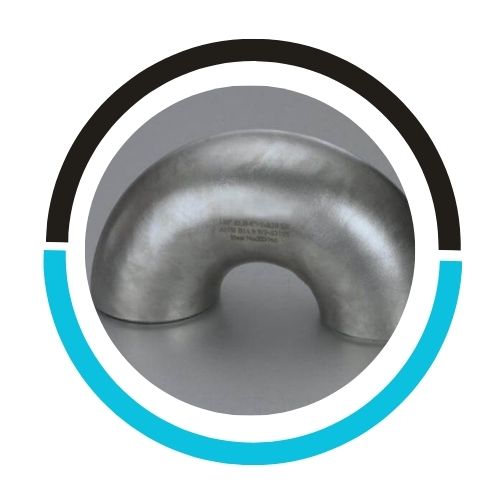

SS 1.4571 Street Elbow Distributor In California, ASME SA182 SS 316Ti Bushing, SS UNS S31635 Forged Socketweld Fitting, SS UNS S31635 Pipe Nipple Supplier In Texas, USA.

FAQ (Frequently Asked Questions)

Can Stainless Steel 316Ti Forged Fittings be recycled after use?

Yes, Stainless Steel 316Ti Forged Fittings are recyclable once they have been used. Stainless steel offers excellent recyclability, as roughly 90% of stainless steel products get recycled when they reach the end of their life cycle. Doing this helps preserve resources and lessens environmental impact.

Are Stainless Steel 316Ti Forged Fittings suitable for cryogenic applications?

Yes, Stainless Steel 316Ti Forged Fittings work well for cryogenic uses. Thanks to their low carbon content and the inclusion of titanium, they offer outstanding resistance to sensitization and intergranular corrosion at low temperatures, which makes them appropriate for cryogenic settings like liquefied natural gas (LNG) storage and transportation systems.

Can Stainless Steel 316Ti Forged Fittings be recycled after use?

Yes, Stainless Steel 316Ti Forged Fittings are recyclable once their service life ends. Stainless steel offers excellent recyclability, achieving recycling rates above 90%. Even after being recycled, the material keeps its characteristics intact, which makes it an eco-friendly option for numerous industries while lowering the need for raw materials.
