Material | Specification | Standards | Size | Length |
Inconel Alloy 601
| IS BS ASTM | ASTM B166 | 3 mm | M02 to M33 |
| Density | 8.1 g/cm3 |
| Melting Point | 1411 °C (2571 °F) |
| Tensile Strength | Psi – 80,000 , MPa – 550 |
| Yield Strength (0.2%Offset) | Psi – 30,000 , MPa – 205 |
| Elongation | 30 % |
Element | Content (%) |
Nickel, Ni | 58.0 – 63.0 |
Silicon, Si | 0.5 max |
Carbon, C | .0.10 max |
Sulphur, S | 0.015 max |
Copper, Cu | 1.0 max |
Iron, Fe | Balance |
Manganese, Mn | 1.0 max |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated across the USA, we maintain an extensive stock of more than 25,000 tons of top-grade materials kept ready in inventory.
Reach out to us for a fast quote tailored to your requirement.

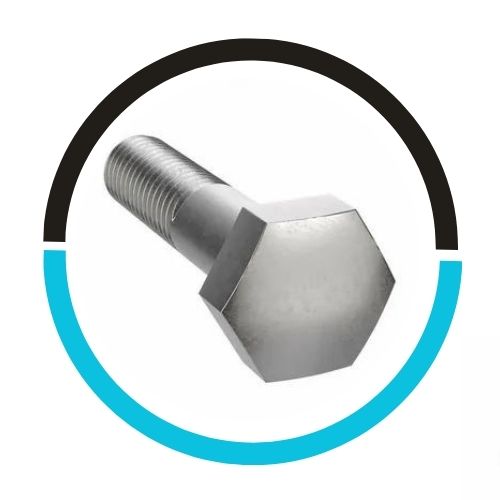

We supply these Inconel 601 Stud Bolts in accordance with DIN, ISO, JIS or ANSI Standard.

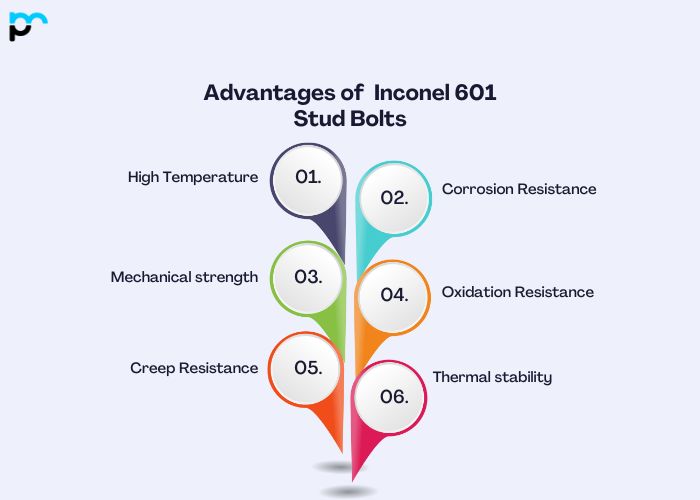

High Temperature: Inconel 601 is recognized for its outstanding ability to withstand high temperatures, making it well-suited for high-temperature settings like furnaces, heat exchangers and gas turbines
Corrosion Resistance: Demonstrates superb corrosion resistance, encompassing oxidation, nitriding and carburization, which makes it perfect for application in the chemical industry where non-corrosive conditions are typical
Mechanical strength: Inconel 601 retains its mechanical strength even at high temperatures, delivering exceptional strength and toughness in extreme situations
Oxidation Resistance: The elevated chromium content adds to its remarkable oxidation resistance, enabling it to endure oxidation even within strongly oxidizing conditions
Creep Resistance: Inconel 601 offers outstanding resistance to high-temperature creep deformation, safeguarding system integrity for an extended service life.
Inconel 601 Stud Bolts have applications as varied as the industries they support, driven mainly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Petrochemical applications: Inconel 601 stud bolts are extensively utilized in the petrochemical sector for fastening applications in reactors, furnaces, heat exchangers, piping systems and other equipment subjected to elevated temperatures and hot conditions.
Aerospace Applications: Within the aerospace sector, Inconel 601 stud bolts serve in gas turbine engines, air filters, and additional components operating at high and extreme temperatures
Power performance: Inconel 601 stud bolts find application in power plants, particularly boilers, steam turbines and exhaust systems, where they endure elevated temperatures and resist oxidation and corrosion
Chemical applications: Inconel 601 stud bolts are employed in chemical applications, such as moulds, reactors and piping systems, where they offer corrosion resistance against highly corrosive acids, alkalis and other substances as these break down.
Heat Treatment: Inconel 601 stud bolts are well suited for use in heat-treating furnaces and appliances owing to their resistance to carburization and oxidation while retaining mechanical properties at high temperatures
High-temperature fastening: Inconel 601 stud bolts serve across a range of high-temperature fasteners throughout all industries, where they deliver a dependable and long-lasting bond in challenging areas
Understand application requirements: Establish the precise environment in which the stud bolts will function. Take into account elements like temperature, pressure, resistance to corrosion, vibration, and the ability to bear loads.
Compatibility: Inconel 601 is a nickel-chromium alloy recognized for its exceptional ability to resist oxidation and corrosion at high temperatures. Confirm that it works well with the materials it will come into contact with, such as supports and any corrosive substances present in the surroundings.
Size and Dimensions: Choose stud bolts that meet the size and dimensional needs of your application. Take into account thread thickness, length, and thickness to guarantee a correct fit and proper performance.
Strength and load capacity: According to the needs of your application, gauge the strength and load capacity of the stud bolt. Factor in tensile strength, yield strength, and maximum load to make certain the applied load can resist failure.
Heat Resistance: Inconel 601 delivers extremely high corrosion resistance, which makes it appropriate for high-intensity applications. Verify that the stud bolts can endure the peak operating temperatures of the edge in your application without losing mechanical strength or being subjected to rotation.
When installing Inconel 601 stud bolts, take into account elements such as correct torque settings, thread lubrication, and surface prep to achieve the best results. Verify compatibility with mating materials, protection against corrosion in harsh conditions, and compliance with industry standards for a safe and dependable setup across a range of applications.
Inconel 601 stud bolts might not be well suited to hygienic and sanitary uses because of possible issues regarding material cleanliness and how well they meet strict hygiene standards. Stainless steel or other materials made specifically for these kinds of environments are generally favored to guarantee compliance and reduce the risk of contamination.
