| Standard | ASTM B574, ASME SB574 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| Grade | Ni | C | Cr | Co | Fe | Mn | Mo | P | Si | S | W | V |
| Hastelloy C22 | Bal | 0.010 max | 20 – 22.5 | 2.5 max | 2 – 6 | 0.50 max | 12.5 – 14.5 | 0.02 max | 0.08 max | 0.02 max | 2.5 – 3.5 | 0.35 max |
At Sumakhsteel, we’re proud to stand as the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. Backed by cutting-edge manufacturing facilities strategically situated across the USA, we maintain an extensive stock of more than 25,000 tons of top-grade materials kept on hand and ready to ship.
Reach out to us for a fast quote tailored to your requirement.
We supply these Hastelloy C22 Bar in accordance with DIN, ISO, JIS or ANSI Standard.

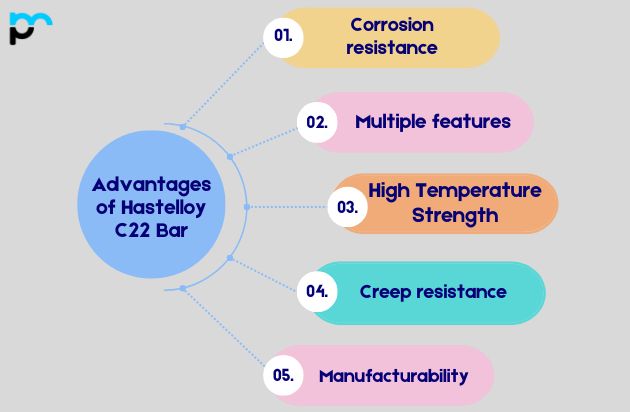

Corrosion resistance: Hastelloy C22 offers excellent corrosion resistance against numerous factors, such as environmental corrosion and reducing agents, which makes it well-suited for applications where corrosion poses a concern great
Multiple features: Its resistance to both oxidizing and reducing conditions gives Hastelloy C22 bars broad usefulness across industries like chemical processing, pollution control, pulp and paper manufacturing, and waste in the field of application
High Temperature Strength: Hastelloy C22 maintains its strength and corrosion resistance under high temperatures, which makes it appropriate for high-temperature uses such as furnace hardware combustion systems
Creep resistance: The alloy demonstrates outstanding resistance to creep deformation, a property that matters when materials are exposed to high temperatures and prolonged mechanical stresses
Manufacturability: Hastelloy C22 can be readily fabricated into strips of various shapes and sizes, permitting customization to meet particular application needs.
Hastelloy C22 Bar uses are as varied as the sectors they support, led chiefly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Chemical applications: Hastelloy C22 panels find broad application in the chemical sector for gear such as reactors, vessels and pipelines used to process corrosive chemicals like sulfuric acid, hydrochloric acid, phosphoric acid and chlorine gas role
Petrochemical Processing: Within the refining and petrochemical sectors, Hastelloy C-22 strips serve in equipment operating in hot conditions, such as heat exchangers, distillation columns and reactors, where they withstand pitting, crevice corrosion and stress corrosion cracking
Waste Materials: Hastelloy C22 panels are employed in wastewater laundry facilities like washing machines, pipes, tanks and other equipment typical of high waste areas
Pharmaceutical Industries: Hastelloy C22 bars are utilized in the pharmaceutical industry where resistance to aggressive chemicals and detergents is needed.
Aerospace and Safety: In aerospace and safety, Hastelloy C22 panels can serve in critical applications within harsh environments, such as fuel systems, rocket engines, and aircraft exhaust systems
Understanding Hastelloy C22: Understand the features and traits of Hastelloy C22. This adaptable nickel-based alloy is recognized for its outstanding resistance to corrosion, particularly in harsh environments like those with oxidizing and reducing media.
Define your requirements: Pinpoint the particular use and setting of the Hastelloy C22 bar. Take into account temperature, pressure, chemical makeup, and corrosion exposure.
Size and Dimensions: Establish the necessary size and dimensions of the bar according to your application needs. Take into account factors like thickness, length, and any particular tolerances needed for the device or material.
Quality Standards: Make sure the Hastelloy C22 bar complies with applicable quality standards and specifications, such as ASTM B574 for Hastelloy C22 bars. Verify the certification or documentation supplied by the manufacturer for compliance.
Supplier Reputation: Select a trustworthy supplier with a proven history of delivering high-quality Hastelloy C22 bars. Investigate suppliers, read reviews, and seek recommendations from industry peers to guarantee dependable and quality supplies.
Customization options: If standard sizes or configurations fail to satisfy your requirements, request customization options like custom lengths, diameters, and surface finishes. Certain suppliers provide machining or manufacturing services to deliver tailored solutions.
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
