Home > Duplex Steel >Forged Fittings in Duplex Steel S32205
| Specification | ASTM A 815, ASME SA 815, ASTM A 182, ASME SA 182 |
| Type | Seamless / Welded / Fabricated |
| Range | ½”NB to 24″NB in Sch 10S, 40S, 80S, 160s, XXS |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43 |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| S32205 | 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 116000 , MPa – 800 | Psi – 80000 , MPa – 550 | 15 % |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for all your piping requirements. With cutting-edge production facilities strategically situated in the USA, we hold an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.
Reach out to us for a fast quote tailored to your requirement.
These Duplex Steel S32205 Forged Fittings are supplied by us in accordance with DIN, ISO, JIS or ANSI Standard.

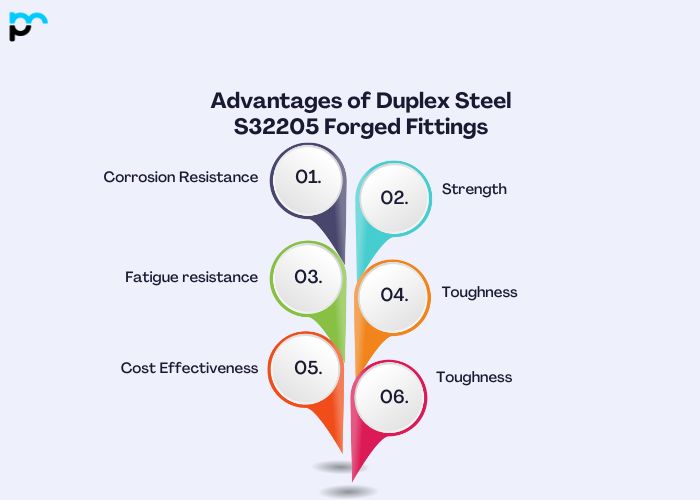

Corrosion Resistance: Duplex steel S32205 offers outstanding corrosion resistance, particularly in demanding conditions like marine and chemical processing. This protection covers general wear and corrosion, including pitting and crevice corrosion.
Strength: Duplex steel S32205 lattice fittings demonstrate exceptional strength, which makes them ideal for uses where structural integrity matters. This capability is preserved even at high temperatures, guaranteeing dependability under working conditions.
Fatigue resistance: These materials show remarkable fatigue resistance, an essential quality for materials exposed to cyclic loads or varying stresses. This characteristic guarantees longevity and lowers the chance of failure caused by fatigue.
Toughness: Duplex steel S32205 keeps its toughness even in low-temperature conditions, delivering hardness in non-zero environments. This makes it well-suited for cryogenic uses where materials need to endure extremely cold temperatures without shrinking.
Cost Effectiveness: Although double stainless steel typically carries a higher upfront cost than conventional stainless steel, it usually delivers long-term savings thanks to its corrosion resistance and outstanding durability, cutting down on maintenance and replacement expenses
Duplex Steel S32205 Forged Fittings serve applications as varied as the industries that rely on them, led chiefly by the aerospace, railway, construction and automotive sectors, along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Oil and Gas Industry: Duplex steel web fittings see widespread use across the oil and gas sector in applications like pipelines, offshore platforms and refineries. Because they resist corrosion and offer high strength, they are well suited to harsh environments.
Chemical processes: These fillers serve chemical plants that handle corrosive chemicals and high temperatures. Their resistance to corrosion and oxidation keeps them durable and reliable under demanding conditions.
Petrochemical plant: Duplex steel S32205 forged fittings are applied in petrochemical plants within piping systems, reactors, and heat exchangers. Their resistance to stress corrosion cracking and erosion makes them ideal for petrochemical processing.
Power Generation: The power generation industry relies on steel duplex grid fittings in boilers, heat exchangers and piping systems that face high temperatures and environmental corrosion. Their high efficiency and corrosion resistance add to the efficiency and reliability of the electrical equipment.
Desalination equipment: Thanks to their resistance to chloride-induced stress corrosion cracking, dual steel mesh fittings are the preferred choice for desalination plants, which treat sea water to produce freshwater and employ them in piping systems, pumps, and valves.
Understand functional requirements: Determine the particular application, taking into account operating conditions like temperature, pressure, corrosion resistance, and other pertinent factors.
Compatibility: Verify that duplex steel S32205 is a good fit for your application. This duplex stainless steel is recognized for its outstanding corrosion resistance, high strength, and weldability, which make it appropriate for a wide range of industry uses.
Construction Standards: To guarantee quality and performance, mesh fittings comply with relevant construction standards such as ASTM, ASME, ANSI, or other international standards.
Size and Dimensions: Take into account the dimensions and measurements needed for meshed fittings, including type (e.g., elbow, tee, coupling, union), size, pressure rating, and end connection (threaded or socket weld).
Pressure level: Establish the maximum pressure that will be applied to the fittings and choose fittings with suitable pressure ratings to ensure safety and reliability.
Corrosion Resistance: Duplex Steel S32205 delivers excellent corrosion resistance across a variety of environments, including chloride ions, sulfuric acid, and seawater. Nevertheless, watch for particular corrosion challenges in your application and confirm that the chosen fittings offer adequate corrosion resistance.
