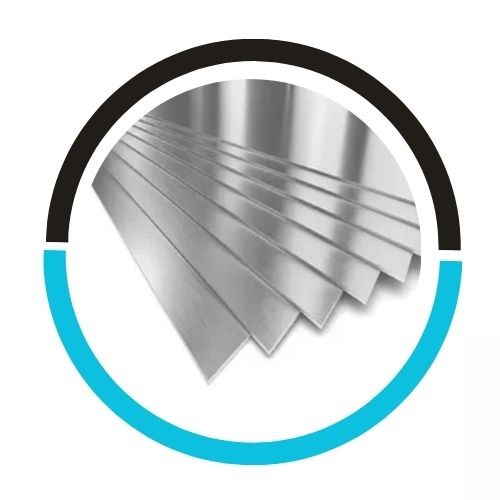

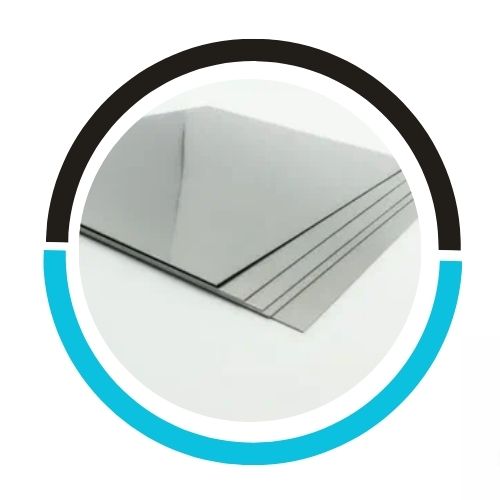

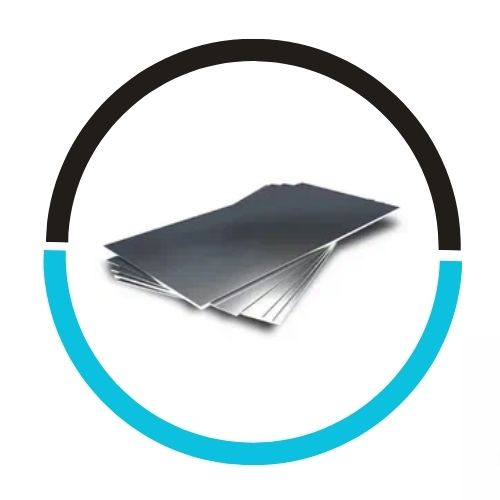

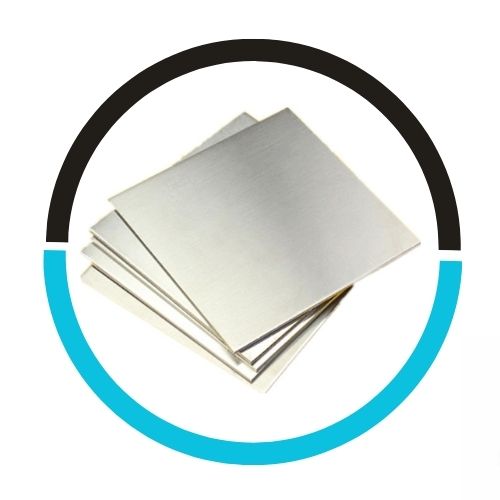

Duplex steel sheets and plates are flat, thin sections of material produced from duplex stainless steel. Duplex stainless steel is a category of stainless steel featuring a two-phase microstructure made up of nearly equal amounts of austenite and ferrite phases. This dual-phase composition delivers a blend of outstanding corrosion resistance and high strength, which makes duplex steel sheets/plates well suited for a broad variety of uses across many industries.
| Specifications | ASTM B171, B122 / ASME SB171, SB122 |
| Standards | ASTM, ASME and API |
| Size | 1 mm to 100 mm |
| Finishing | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) & Angle, Channel, Tray, Roll Etc. |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | UNS NO. C92200 & UNS NO. C83600, UNS NO. C70600 ( CU -NI- 90/10), C71500 ( CU -NI- 70/30), UNS NO C10100, C10200, C10300, C10800, C12000, C12200. |
| MN | C | SI | S | P | CR | NI | MO | N |
|---|---|---|---|---|---|---|---|---|
| 2.0 max | 0.03 max | 1.0 max | 0.02 max | 0.03 max | min: 21.0 max: 23.0 | min: 4.5 max: 6.5 | min: 2.5 max: 3.5 | min: 0.08 max: 0.20 |
At Sumakhsteel, we are proud to be the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. Backed by modern manufacturing facilities strategically situated across the USA, we maintain an extensive inventory of more than 25,000 tons of top-grade materials kept ready in stock.
Get in touch with us for a fast quote tailored to your requirement.
We supply These Duplex Steel Sheet and Plates conforming to DIN, ISO, JIS or ANSI Standard.

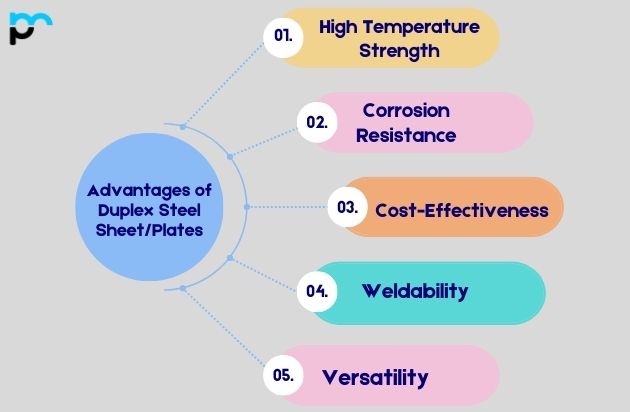

Excellent Corrosion Resistance: Duplex stainless steel provides better corrosion resistance than standard austenitic stainless steels, especially in chloride-heavy settings such as seawater and chemical processing.
High Strength: Duplex steel sheets/plates possess greater strength than austenitic stainless steels, permitting thinner material gauges and lower weight in structural uses while preserving structural integrity.
Cost-Effectiveness: Although duplex stainless steel may carry a higher upfront cost than austenitic stainless steels, its enhanced corrosion resistance and mechanical properties frequently yield long-term savings by lowering maintenance, repair, and replacement expenses.
Versatility: Duplex steel sheets/plates are adaptable and suitable for a broad spectrum of applications across many industries, such as oil and gas, chemical processing, marine engineering, pulp and paper, and architectural applications.
Weldability: Duplex steel sheets/plates weld easily with standard welding methods, enabling straightforward fabrication and assembly into intricate structures without sacrificing corrosion resistance or mechanical properties.
Duplex steel sheets/plates are used extensively throughout industry across a range of sectors thanks to their distinctive blend of outstanding corrosion resistance, high strength, and adaptability. Typical industrial applications include use in the oil and gas industry for offshore platforms, pipelines, and subsea equipment, where strength and corrosion resistance are vital for enduring severe environments.
Oil and Gas Industry: Owing to their corrosion resistance and high strength, duplex steel sheets/plates find use in offshore platforms, subsea equipment, pipelines, and storage tanks, particularly in harsh environments that contain chloride ions and hydrogen sulfide.
Chemical Processing: Within chemical processing plants, duplex steel sheets/plates serve in the production of pressure vessels, heat exchangers, and piping systems that deal with corrosive chemicals, acids, and solvents.
Marine Engineering: For marine purposes, duplex steel sheets/plates are applied in shipbuilding, seawater desalination plants, offshore structures, and marine equipment thanks to their ability to withstand seawater corrosion and their high mechanical strength..
Power Generation: Within the power generation sector, duplex steel sheets/plates are put to use in producing boilers, heat exchangers, turbine components, and exhaust systems because they can withstand high temperatures and corrosion in steam and flue gas environments..
Aerospace Industry: Within the aerospace sector, duplex steel sheets/plates are put to use in producing aircraft components like landing gear, engine mounts, and structural elements owing to their lightweight nature, high strength, and corrosion resistance.
Identify Application Requirements: Identify the operating conditions, such as temperature, pressure, corrosion, and mechanical stress levels, in order to choose duplex steel sheets/plates capable of enduring these conditions.
Grade Selection: Pick the suitable duplex stainless steel grade according to the particular needs of your application. Widely used grades include duplex stainless steel UNS S31803, UNS S32205, and UNS S32750, each providing varying degrees of corrosion resistance, strength, and additional properties.
Corrosion Resistance: Assess how well the duplex steel sheets/plates resist corrosion from the particular corrosive agents found in your application, such as acids, alkalis, chlorides, and seawater, to guarantee lasting performance and durability.
Mechanical Properties: Take into account the mechanical characteristics of the duplex steel sheets/plates, such as tensile strength, yield strength, elongation, and hardness, to confirm they satisfy the mechanical demands of your application.
Size and Thickness: Opt for duplex steel sheets/plates with the right size and thickness to fit your application requirements, taking into account factors like load-bearing capacity, dimensional tolerances, and available space.
Yes, Duplex steel sheets and plates is well-suited for hygienic and sanitary uses, especially in sectors like food and beverage, pharmaceuticals, and biotechnology.
Duplex stainless steel commonly comes in grades such as UNS S31803 (2205), UNS S32205, UNS S32750 (2507), and UNS S32760 for use in sheets/plates, with each grade providing particular properties and performance traits suited to varying applications.
Duplex steel sheets and plates can be produced and machined through standard techniques including cutting, bending, forming, welding, and machining. Suitable measures should be taken to prevent work hardening and tool wear.
Duplex steel sheets and plates are offered in a range of sizes and standards including ASTM, ASME, and EN standards. Typical sizes span from thin gauge sheets to thick plates, with widths and lengths differing according to application requirements.
| Thickness | Width | Length | Surface Finish |
|---|---|---|---|
| 15~85 mm | 914, 1219, 1524 mm | 3048, 6069 mm 10 M | Black |
| 3~8 mm | 20~1524 mm | Container Loading: Max. 10M Bulk: as request | No.1 |
| 8 up ~ 60 mm | 30~1524 mm | Max. 6096 mm | No.1 |
