Duplex Steel 2205 Sheets and Plates

Home > Duplex Steel > Duplex Steel 2205 Sheets/Plates

Duplex Steel 2205 Sheets and Plates Manufacturer, Exporter and Supplier in California, USA.

F60 Duplex Steel Chequered Plate Price In USA, ASTM A240 Duplex Steel F60 Sheets Exporter In USA, UNS S32205 Plate Supplier In California, USA.

Duplex Steel 2205 Sheets and Plates are custom-fabricated, slim layers of material produced from Duplex Stainless Steel 2205, an extraordinary alloy renowned for its distinctive two-phase microstructure. Consisting of roughly equal amounts of austenite and ferrite phases, this characteristic dual-phase arrangement gives Duplex Steel 2205 sheets/plates a terrible combination of outstanding corrosion resistance and remarkable strength. This renders them exceptionally suitable for a wide range of applications across various industries, where rigorous requirements for durability and performance are essential.

Duplex Steel 2205 Sheets and Plates Specifications

Duplex 2205 Plate Specification	ASTM A240 / ASME SA240 / NACE MR-0175
Tolerances of width and thickness of Duplex 2205 Plate	EN 10258 (formerly DIN 59381) EN 10151 ASTM A240 Type 2205 strips for springs EN 10088 Duplex Steel 2205 strip (general)
Standard Duplex 2205 Plate sizes in stock	1000 x 2000 mm, 1220 x 2440 mm, 1500 x 3000 mm, 2000 x 2000 mm, 2000 x 4000 mm Cold rolled Duplex 2205 Plate 0.5-6.4 mm Hot rolled Duplex 2205 Plate 3.0–10.0 mm
SA 240 TP 2205 Plate & Sheet Thickness	0.1 to 100 mm Thk
Width	10-2500mm
Duplex 2205 Stainless Steel Plate & Sheet Length	2m, 2.44m, 3m, or as required
Duplex 2205 Plate Finish	2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled ASTM A240 Type 2205 Plate, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc.
SA 240 GR 2205 Plate & Sheet Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard
Stock available in form of	Duplex 2205 Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate
Stocking distributor of	Acroni Plate Arcelormittal Plate Outokumpu Plate Aperam Plate
Plasma profiles	As per client’s specification
Profiling	To provide a full profiling service in USA we use numerous profiling methods including: Laser Plate Cutting Plasma Plate Cutting Oxy-propane Flame Cutting
Value added services for Duplex 2205 Plate	Cut-to-length Laser cutting Slitting Polishing Blanking Waterjet cutting Plasma cutting Edge preparation Welding Sawing and shearing Bending and mechanical processing
Standards and approvals for Duplex 2205 Plate	EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 EN ISO 9445 ASTM A 480 ASTM A 959 ASME IID
Why choose us?	Large stock of Duplex 2205 Plate Mill Test Certificate is supplied with shipment. Any third party inspection is accepted. Duplex 2205 Plate are tested to ASTM A923 Method “C” or ASTM G48 Method “A”. Minimum Nitrogen content and Ferrite Count Test

Duplex Steel 2205 Sheets and Plates Chemical Composition

Grade

2205

Min

Max

–

0.030

–

2.00

–

1.00

–

0.030

–

0.020

21.0

23.0

2.5

3.5

4.5

6.5

0.08

0.20

Duplex F60 Stainless Steel Plates Price In USA, 2205 Supplier In USA, Duplex Steel F60 Sheets and Plates Manufacturer In Texas, USA.

Duplex Steel 2205 Sheets and Plates Mechanical Properties

Grade	Tensile Str (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell C (HR C)	Brinell (HB)
2205	621	448	25	31 max	293 max

Top Duplex Steel 2205 Sheets and Plates Manufacturing Company in California

At Sumakhsteel, we’re proud to be the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically positioned across the USA, we maintain an extensive stock of more than 25,000 tons of top-grade materials ready and available in inventory.

Reach out to us for a fast quote tailored to your needs.

Estas láminas/placas de Acero Dúplex 2205 las ofrecemos según norma DIN, ISO, JIS o ANSI.

Duplex Steel F60 Perforated Sheets Price In USA, UNS S32205 Duplex Stainless Steel Sheets Stockist In California, largest range of Duplex Stainless Steel Plates Supplier In Texas, USA.

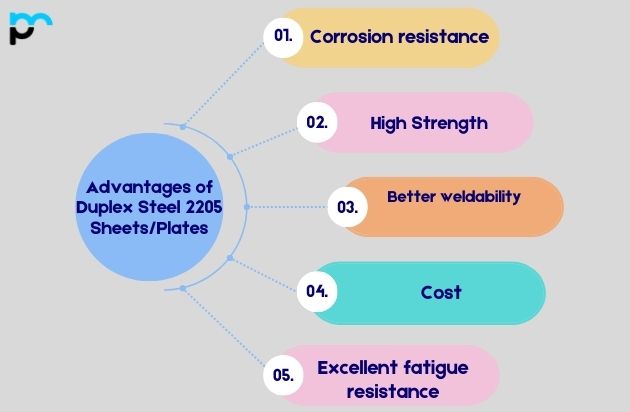

Advantages of Duplex Steel 2205 Sheets and Plates

Corrosion resistance: Duplex 2205 Sheets/Plates delivers outstanding resistance to corrosion, particularly in settings that contain chlorides and sulfides. This quality makes it well-suited for a range of industries including chemical processing, marine environments, and oil and gas.
High Strength: Compared to standard austenitic stainless steel, Duplex 2205 Sheets/Plates provides greater tensile and yield strength. As a result, it is a good fit for construction uses that demand strength.
Better weldability: Even though duplex steel is prone to forming harmful precipitated phases while being welded, Duplex 2205 Sheets/Plates delivers good weldability when handled with proper care, which simplifies the fabrication and assembly of components.
Cost: In spite of its outstanding quality, Duplex 2205 Sheets/Plates can frequently prove more economical than other corrosion-resistant alloys thanks to its low nickel content
Excellent fatigue resistance: Duplex 2205 Sheets/Plates demonstrates strong fatigue resistance, making it a good choice for uses where cyclic loading is anticipated, such as in building materials and machinery

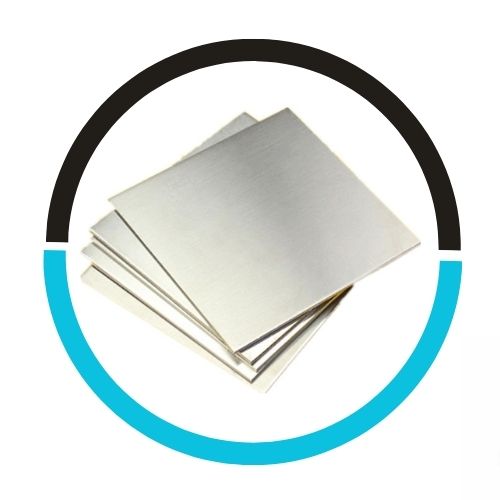

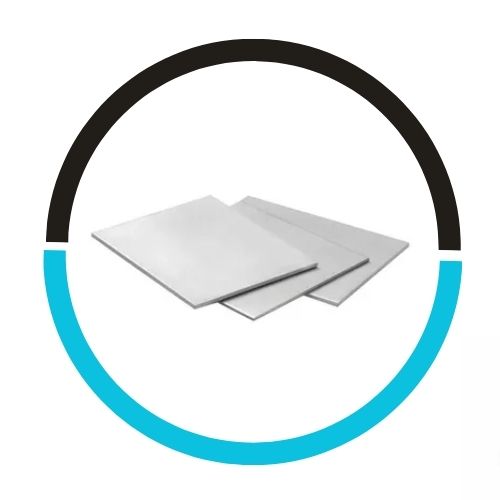

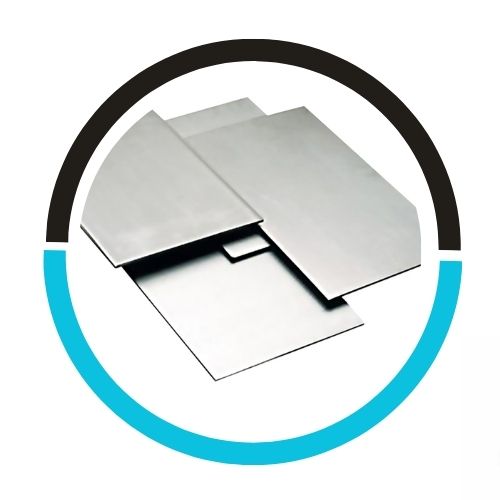

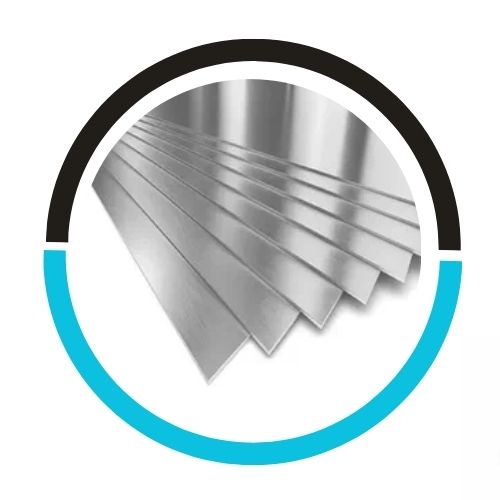

Types of Duplex Steel 2205 Sheets and Plates

F60 Duplex Stainless Steel Plates Suppliers in USA, Duplex Steel UNS S32205 Hot Rolled Sheets and Plates Manufacturer & Exporter in California, USA.

Duplex Steel 2205 Sheets and Plates Uses

Application Industry

Duplex Steel 2205 Sheets/Plates are widely employed throughout industry across numerous sectors owing to their distinctive blend of outstanding corrosion resistance, high strength, and adaptability. Typical industrial applications include use within the oil and gas industry for offshore platforms, pipelines, and subsea equipment, where corrosion resistance and strength are vital for enduring harsh environments.

Oil & Gas Industry

Aviation Industry

Marine Engineering

Power Generation Industry

Chemical Processing: Thanks to its outstanding resistance to corrosion, duplex steel 2205 is widely applied in chemical settings like tanks, tanks and pipelines where corrosive chemicals exist. Interference is a concern.
Oil and Gas Industry: Duplex Steel 2205 sees broad use across the oil and gas sector, spanning offshore platforms, pipelines, and equipment. It is especially well-suited to this purpose because it resists corrosion under harsh environmental conditions like seawater and high chloride settings.
Heat Exchangers: The considerable strength and corrosion resistance of duplex 2205 steel render it appropriate for use in heat exchangers, where it can endure elevated temperatures and corrosion
Desalination Plants: Duplex steel 2205, through which seawater is turned into fresh water, is frequently employed in a variety of applications like evaporators, pumps and piping systems owing to its resistance to corrosion in aqueous environments.
Structural Applications: Duplex steel 2205 may likewise serve in structural applications where its blend of high strength and corrosion resistance delivers durability and long life, such as in bridges and architectural structures.

How to Choose the Right Duplex Steel 2205 Sheets and Plates

Features: Duplex Steel 2205 is a stainless steel recognized for its outstanding corrosion resistance, high strength and weldability. Be sure these materials align with the requirements of your application.
Application Requirements: Take into account the environment and conditions the leaves/plates will face. For instance, extra attention may be needed if highly contaminated substances such as seawater or chemicals will be handled.
Size and Dimensions: Establish the necessary dimensions of the sheets/plates according to your application and design needs.
Certifications and Standards: Confirm that the Duplex Steel 2205 sheet/plate satisfies the industry standards and certifications relevant to your application, such as ASTM specifications.
Supplier Reputation: Select a reputable supplier recognized for delivering high-quality products. Seek out suppliers with a proven history of reliability, quality control, and customer satisfaction.
Price Considerations: Weigh prices from various suppliers while factoring in quality, certifications, and other services. Balance your budget limitations against the need for high-quality products.

How do I maintain Duplex Steel 2205 Sheets and Plates?

To preserve Duplex Steel 2205 Sheets/Plates, routinely wash surfaces using a gentle detergent and water, steering clear of harsh scouring cleaners. Occasional checks for corrosion or pitting are crucial. Shield it from severe conditions, chemicals, and elevated temperatures. Keep stored indoors, away from dampness, to stop rust from forming. Refer to the manufacturer’s guidelines for detailed care directions.

2205 Sheets and Plate Exporter In USA, Duplex Steel F60 Colled Rolled Plate Manufacturer & Supplier In Texas, USA.

Duplex Steel 2205 Sheets and Plates Size Chart

Thickness	Width	Length	Surface Finish
15~85 mm	914, 1219, 1524 mm	3048, 6069 mm 10 M	Black
3~8 mm	20~1524 mm	Container Loading: Max. 10M Bulk: as request	No.1
8 up ~ 60 mm	30~1524 mm	Max. 6096 mm	No.1

FAQ (Frequently Asked Questions)

Are Duplex Steel 2205 Sheets/Plates susceptible to galvanic corrosion?

Duplex Steel 2205 Sheets/Plates are prone to galvanic corrosion when they come into contact with dissimilar metals in electrolyte environments. This risk can be reduced through thoughtful selection of compatible materials, insulation, or applying protective coatings. Routine inspections and maintenance assist in preventing galvanic corrosion in duplex steel applications.

How are Duplex steel 2205 Sheets/Plates fabricated and machined?

Duplex Steel 2205 Sheets/Plates are produced and machined through standard techniques like cutting, bending, and welding. Dedicated tools, such as plasma or laser cutting machines, are frequently used. Because of the steel’s work-hardening characteristics, machining generally relies on carbide tools and elevated cutting speeds.

Can Duplex Steel 2205 Sheets/Plates be used for underground applications?

Yes, Duplex Steel 2205 Sheets/Plates work well for below-ground uses thanks to their resistance to corrosion and considerable strength. They endure demanding underground conditions, such as dampness, soil acidity, and chloride contact, which makes them perfect for pipelines, tanks, and structural parts in underground infrastructure.
