Duplex Steel 2205 Forged Fittings Duplex Steel 2205 Fittings distinguish themselves in uses demanding superior corrosion resistance and toughness. Defined by a two-phase microstructure that combines austenitic and ferritic characteristics, these fittings perform exceptionally against stress corrosion cracking, pitting, and crevice corrosion. Extensively used in challenging industries like chemical processing, offshore oil and gas extraction, and marine settings, Duplex Steel 2205 Fittings deliver enhanced durability and reliability. Furthermore, their notable weldability and formability make them suitable for a range of fabrication techniques. Achieving their optimal performance and service life requires routine maintenance and firm compliance with industry standards.
| 2205 Duplex Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
|---|---|
| Duplex 2205 Pipe Fittings size | Seamless 2205 Duplex Stainless Butt Weld Fittings: 1/2″ – 10″ Welded 2205 Stainless Steel Butt Weld Fittings: 1/2″ – 48″ |
| Specifications | ASTM A815 / ASME SA815 |
| Duplex 2205 Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Duplex 2205 Forged Fittings Thread | NPT, BSPT, BSPP |
| ASTM A815 Fittings Type | DN15-DN1200 |
| 2205 Duplex Pipe Fittings Types | Seamless / ERW / Welded / Fabricated Duplex 2205 Werkstoff 1.4462 Pipe Fittings |
| Fitting Duplex 2205 Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Avesta 2205 Pipe Fittings |
| Duplex 2205 Forged Fittings Pressure Rating | Threaded end-2000lb/ 3000lb/ 6000lbs 2205 Duplex 1.4462 Pipe Fittings Socket-weld end-3000/ 6000/ 9000lbs 2205 Duplex Stainless Steel Pipe Fittings |
| Fitting Duplex 2205 Size Range | 1/2″ NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Duplex 2205 F51 Pipe Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| Key markets and industries for 22cr Fitting Duplex 2205 |
|

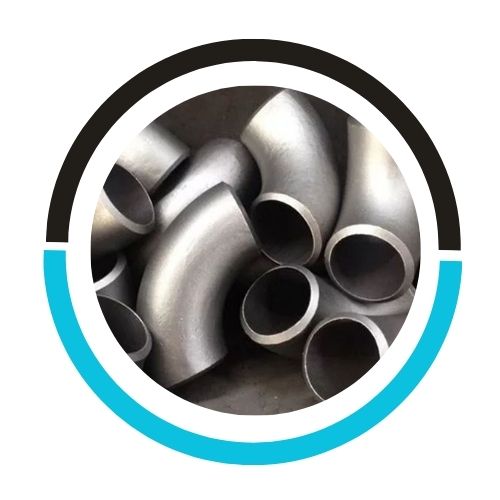

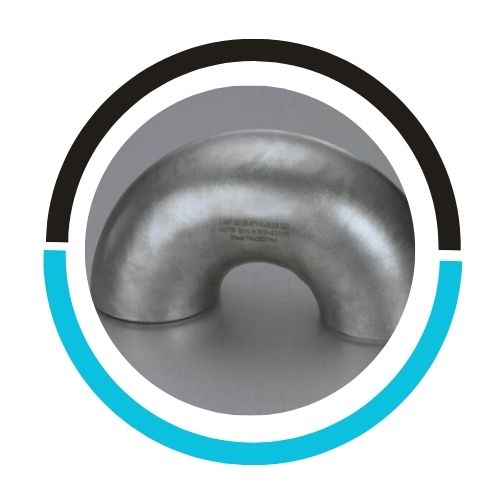

| Duplex 2205 Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |

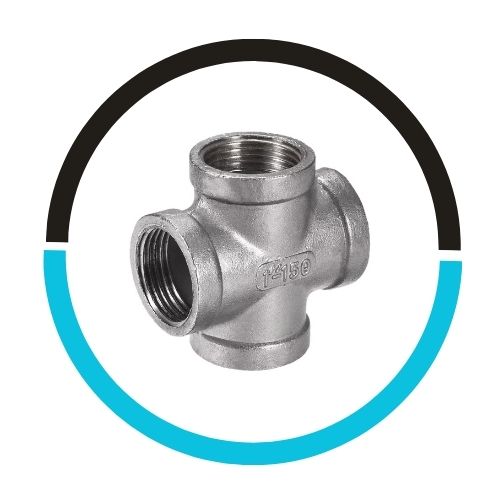

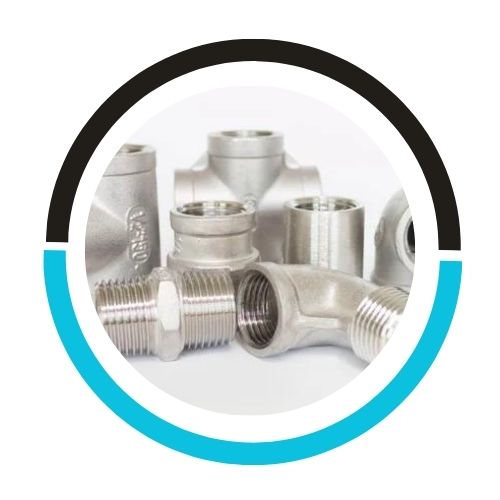

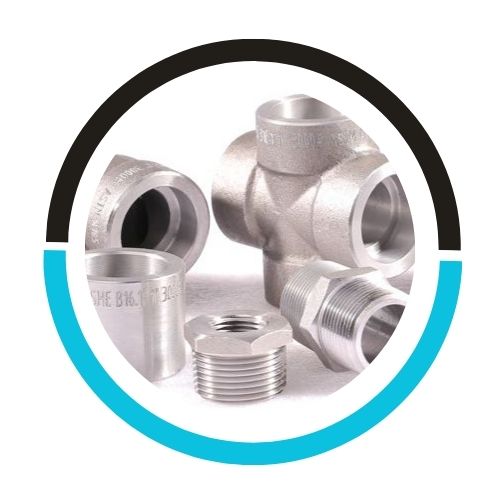

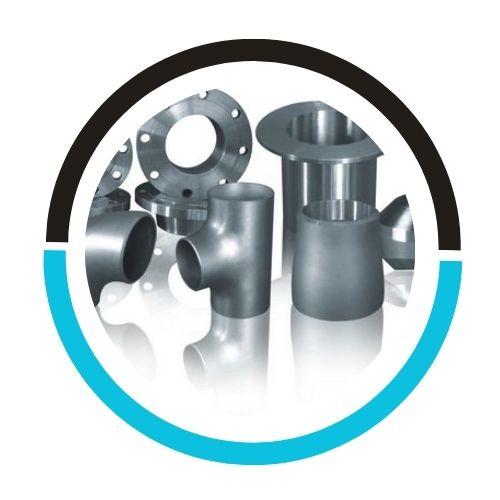

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees,Couplings, Reducers, Inserts, Unions, Caps, Nipples, Forged Pipe Fittings, Socket Weld & Threaded, 90° & 45° Elbows – Female-Female, Male-Male, Male-Female, Union, Nipples, Couplings, Plugs Fittings |
| 2205 Duplex Pipe Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| SA815 Material End |
|
| F51 2205 Duplex Pipe Fittings uses & application |
|
| 2205 Duplex Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian (NO CHINA) |
| Material Test Certificates (MTC) for Duplex 2205 Fittings as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
|---|---|---|---|---|
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
| C | N | P | Si | Mn | Mo | Fe | Cr | S | Ni |
|---|---|---|---|---|---|---|---|---|---|
| 1.0 | 0.03 | 0.02 | 2.0 | 3.0 – 3.5 | 22.0 – 23.0 | 0.03 | 4.5 – 6.5 | 0.14 – 0.2 | Bal |
At Sumakhsteel, we’re proud to be the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. Backed by cutting-edge manufacturing facilities strategically positioned across the USA, we maintain an extensive inventory of more than 25,000 tons of top-grade materials kept ready in stock.
Reach out to us for a fast quote tailored to your requirement.
We provide these Duplex Steel 2205 Forged Fittings in accordance with DIN, ISO, JIS or ANSI Standard.

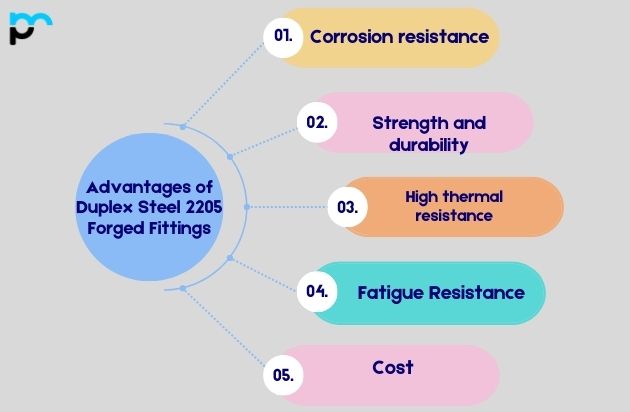

Corrosion resistance: Duplex Steel 2205 offers outstanding resistance to corrosion, particularly in aggressive conditions like the presence of chloride ions. Because of this resistance, it is well suited for the marine, chemical industry, oil and gas and other sectors.
Strength and durability: These inserts show exceptional strength and toughness, which makes them perfect for uses involving heavy loads or high pressures They are able to endure significant mechanical stress without breaking or failing.
High thermal resistance: Duplex steel 2205 keeps its mechanical properties even at elevated temperatures, which makes it appropriate for applications that call for thermal resistance
Fatigue Resistance: Duplex Steel 2205 provides greater fatigue strength compared to austenitic stainless steel, which makes it attractive for uses involving cyclic loading
Cost: Even with its high quality, duplex steel 2205 is generally more economical than other corrosion-resistant alloys like austenitic stainless steel or nickel-plated alloys, achieving a balance between performance and cost between
Duplex Steel 2205 Forged Fittings serve applications as varied as the industries that rely on them, led mainly by the aerospace, railway, construction and automotive sectors along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Oil and Gas Industry: Duplex steel 2205 forged fittings serve upstream, midstream and downstream operations within the oil and gas industry, and because of their corrosion resistance and strength they work well for uses like offshore drilling platforms, subsea equipment, pipelines and refineries
Chemical applications: Within chemical plants, where corrosive chemicals and weathering occur frequently, duplex steel 2205 mesh fittings serve piping systems, valves, pumps and tanks Their resistance to corrosion and high temperature makes them well suited for dealing with a range of chemicals and materials.
Marine Technology: The marine setting suffers heavy degradation because of the salt water present. Owing to their outstanding corrosion resistance and durability in salt water, duplex steel 2205 forged fittings are favored for marine uses including shipbuilding, offshore structures and port facilities
Desalination plants: Desalination plants turn seawater into fresh water and run under extremely hot conditions. Because they resist chloride-induced corrosion, duplex steel 2205 mesh fittings are employed in producing desalination equipment such as pumps, valves and heat exchangers
Pulp and Paper Chemicals: Chemical solids and temperature rise throughout the pulp and paper industry. Thanks to their corrosion resistance and their capacity to endure harsh operating conditions, duplex steel 2205 forged fittings are applied in piping systems, digester vessels and bleach towers
Corrosion resistance: Duplex Steel 2205 is recognized for its outstanding resistance to corrosion, particularly in settings that contain chlorides and sulfides. Be certain that the mesh fittings you select have undergone rigorous testing and confirmation for their corrosion resistance.
Pressure and Temperature Requirements: Take into account the pressure and temperature circumstances of the mesh fittings within your application. Confirm that the fitting is configured to a defined pressure and temperature to avoid any breakdown or leakage.
Size and thickness: Select fittings that align with the thickness and thickness demanded by your piping system. Verify compatibility with pipes and additional fittings.
Material certification: Make certain that the duplex steel 2205 utilized in mesh fittings adheres to industry standards and specifications. Review content certification for both quality and accuracy.
Construction Standards: Opt for mesh fittings engineered to established standards like ASTM, ASME, or EN standards. This guarantees uniformity in both quality and performance.
