Home > Carbon Steel > Carbon Steel en-10297-1 Pipes
| Standard | AISI, DIN, EN, GB, IS, JIS, ASTM, ASME Pipe |
|---|---|
| Gr E355 Seamless Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |
| Carbon Steel EN 10297-1 Grade C60E Welded Pipe Size | 5.0 mm – 1219.2 mm |
| Grade E355K2 Carbon Steel EFW Pipe size | 5.0 mm – 1219.2 mm |
| Grade E275K2 Tube Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Bs En 10297-1 E355 Pipe Schedule | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Carbon Steel Grade C10E Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| Grade E275K2 Welded Tube Size | 6.35 mm OD To 152 mm OD |
| EN 10297-1 Gr E355K2 Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Product | Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
|---|---|---|---|---|---|---|---|---|---|---|
| C22 | 0.17-0.24 | max 0.40 | 0.40-0.70 | 0.045 | 0.045 | – | – | – | – | – |
| C35 | 0.32-0.39 | max 0.40 | 0.50-0.80 | 0.045 | 0.045 | – | – | – | – | – |
| C45 | 0.42-0.50 | max 0.40 | 0.50-0.80 | 0.045 | 0.045 | – | – | – | – | – |
| C60 | 0.57-0.65 | max 0.40 | 0.60-0.90 | 0.045 | 0.045 | – | – | – | – | – |
| 20MnV6 | 0.16-0.22 | 0.10-0.50 | 1.30-1.70 | 0.035 | 0.04 | – | – | – | – | V max 0.15 |
| 25CrMo4 | 0.22-0.29 | max 0.40 | 0.60-0.90 | 0.035 | 0.035 | 0.15-0.30 | – | 0.90-1.20 | – | – |
| 34CrMo4 | 0.30-0.37 | max 0.40 | 0.60-0.90 | 0.035 | 0.035 | 0.15-0.30 | – | 0.90-1.20 | – | – |
| 42CrMo4 | 0.38-0.45 | max 0.40 | 0.60-0.90 | 0.035 | 0.035 | 0.15-0.30 | – | 0.90-1.20 | – | – |
| Product | Yield Strength | Tensile Strength | Elongation A5 min | |||
|---|---|---|---|---|---|---|
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage | |
| C22 | 420 | – | – | 21 | ||
| C35 | 520 | – | – | 17 | ||
| C45 | 610 | – | – | 16 | ||
| C60 | 720 | – | – | 13 | ||
| 20MnV6 | 600 | – | – | 19 | ||
| 25CrMo4 | – | – | – | – | ||
| 34CrMo4 | – | – | – | – | ||
| 42CrMo4 | – | – | – | – | ||
| 20NiCrMo2-2 | – | – | – | – | ||
| E235 | 360 | – | – | 25 | ||
| E275 | 410 | – | – | 22 | ||
| E315 | 450 | – | – | 21 | ||
| E355 | 490 | – | – | 20 | ||
| E275K2 | 410 | – | – | 22 | ||
| E355K2 | 490 | – | – | 20 | ||
| C60E | 710 | – | – | 10 | ||
| 38Mn6 | 670 | – | – | 14 | ||
| C22E | 430 | – | – | 24 | ||
| C35E | 550 | – | – | 18 | ||
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every piping requirement you have. Backed by state-of-the-art manufacturing facilities strategically situated across the USA, we hold an extensive stock of more than 25,000 tons of top-grade materials kept ready and available.
Reach out to us for a fast quote tailored to your requirement.
We supply These Carbon Steel en-10297-1 in accordance with DIN, ISO, JIS or ANSI Standard.

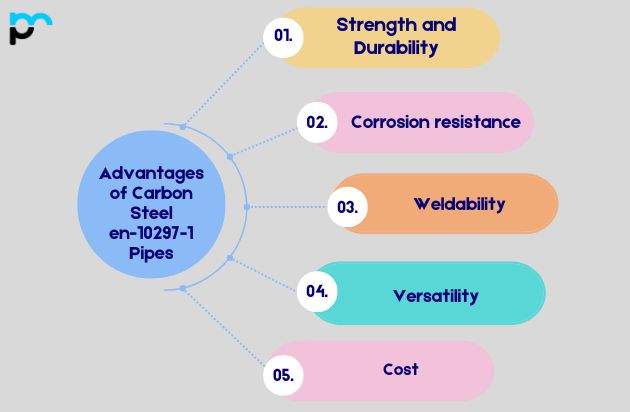

Strength and Durability: Carbon steel pipe is recognized for its toughness and long-lasting nature, making it well-suited for numerous industrial applications where high strength and resistance to corrosion are demanded
Corrosion resistance: While carbon steel offers less corrosion resistance than stainless steel or other corrosion-resistant alloys, the EN-10297-1 standard defines the requirements for the chemical and mechanical properties of the pipe, guaranteeing sufficient corrosion resistance for many uses.
Weldability: Carbon steel pipes can be readily joined using conventional welding methods, producing robust and leak-free connections. This makes them appropriate for uses that call for welded joints, such as pipelines and structural supports.
Versatility: Carbon steel EN-10297-1 pipe can be readily adapted and tailored to meet particular needs. It is available in every shape and size, making it fit for a broad range of applications across various industries.
Cost: Carbon steel pipes are typically more economical than pipes produced from other materials, such as stainless steel or steel alloys, which makes them budget-friendly in many applications, particularly when numerous pipes are needed.
Carbon Steel en-10297-1 Pipes have uses as varied as the sectors they support, led chiefly by the aerospace, railway, construction and automotive sectors along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
