| Dimensions | ASTM, ASME and API |
| Thickness | 50mm to 7.00mm, custom OD and thickness available on request |
| End | Plain End, Beveled End, Treaded |
| Length | Single Random, Double Random & Required Length, Custom Size – according to customer’s requirement |
| Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Types | Seamless / ERW / Welded / Fabricated / CDW |
| Outer Diameter | 19.05mm to 127mm |
| Wall Thickness | 0.8mm to 6.0mm |
| Length | 6mtr/ 12mtr or Cut to Length |
| Capacity | 7000 Mt/Month |
Grade | Mfg. Process | Chemical Composition(%) | ||||||||
C | Si | Mn | P | S | Ni | Cr | Mo | Others | ||
BW320 | B | 0.16Max | – | 0.30~0.70 | 0.040Max | 0.040Max | – | – | – | – |
ERW320 | E | 0.16Max | – | 0.30~0.70 | 0.040Max | 0.040Max | – | – | – | – |
ERW360 | E | 0.17Max | 0.35Max | 0.40~0.80 | 0.040Max | 0.050Max | – | – | – | – |
ERW430 | E | 0.21Max | 0.35Max | 0.40~1.20 | 0.040Max | 0.040Max | – | – | – | – |
S360 | S | 0.17Max | 0.35Max | 0.40~0.80 | 0.040Max | 0.040Max | – | – | – | t 16mmMax 16mm<t 40mmMAX 40mm<t 65mmMax |
S430 | S | 0.21Max | 0.35Max | 0.40~1.20 | 0.040Max | 0.040Max | – | – | – | t 16mmMax 16mm<t 40mmMAX 40mm<t 65mmMax |
Grade
| Tensile Test MPa or N/mm2 | Remaks (Similar to JIS) | Possibility Temperature | |
Min Yield point | Tensile Strength | |||
BW320 | 195 | 320~460 | – | |
ERW320 | 195 | 320~460 | – | |
ERW360 | 235 | 360~500 | (STPG370) | |
ERW430 | 195 | 430~570 | (STPG410) | |
S360 | 235 225 215 | 360~550 | (STPG310) | |
S430 | 275 265 255 | 430~570 | (STPG410) | |
SAW430 | 275 265 255 | 430~570 | (STPY400) | |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated across the USA, we maintain an extensive inventory of more than 25,000 tons of top-grade materials kept ready in stock.
Reach out to us for a fast quote tailored to your requirement.
We supply these Carbon Steel bs-3601 in accordance with DIN, ISO, JIS or ANSI Standard.

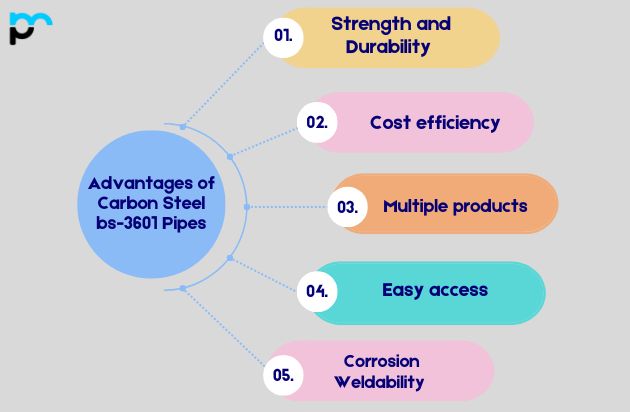

1. High strength and durability
Carbon steel pipe is recognized for its high tensile strength, which makes it well-suited for high-pressure applications. It is also exceptionally durable and holds up against severe environmental conditions as well as mechanical stresses and impacts.
2. Cost efficiency
Compared with other materials like stainless steel or alloys, carbon steel is fairly affordable. Such savings make BS-3601 pipe a sensible option for large projects that have to account for budget limitations.
3. Multiple products
Meeting the BS-3601 standard, carbon steel pipe is adaptable and can serve a range of uses, such as transporting water, oil, gas and other fluids. It is likewise applied to construction within the construction industry.
4. Easy access
Carbon steel ranks among the most extensively produced and readily available materials, which ensures that BS-3601 pipes can be sourced easily and on schedule, something that is vital to the project timeline.
5. Weldability
This kind of pipe is noted for its excellent weldability. The chemical makeup of carbon steel makes it simpler to weld and fabricate, and also to repair and modify as required.
Carbon Steel bs-3601 Pipes serve applications as varied as the industries that use them, led chiefly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
