| Dimensions : | ANSI/ASME B16.11 & BS3799 |
| Specifications : | ASTM A105 / A694 / A350 LF3 / A350 LF2. |
| Size : | 1/8″ to 4″ |
| Pressure Rating: | 2000#, 3000#, 6000#, 9000# |
| Grade : | F42 / F46 / F52 / F56 / F60 / F65 / F70 |
| Type : | Socket Weld (SW) & SCREWED (SCRD) – NPT, BSP, BSPP, BSPT Threaded Fittings |
| Coating: | Hot Dip Galvanizing, Cold Galvanizing, Sand Blasting, Anti-rust Oil. |
| Element | Composition %, Note C |
|---|---|
| Carbon | .35 max. (maximum) |
| Manganese | .60-1.05 |
| Phosphorus | .035 max. (maximum) |
| Sulfur | .040 max. (maximum) |
| Silicon | .10-35 |
| Copper | .40 max. (maximum), note A |
| Nickel | .40 max. (maximum), note A |
| Chromium | .30 max. (maximum), note A,B |
| Molybdenum | .12 max. (maximum), note A,B |
| Vanadium | .08 max. (maximum), note A |
| &ASTM A105 Carbon Steel Forged Fittings Property | |
|---|---|
| Tensile Strength, min. (minumum): | 70,000 psi [485 MPa] |
| Min. (minumum). Yield Point: | 36,000 psi [250 MPa] |
| Reduction of area, min. (minumum): | 30% min. (minumum) |
| Hardness, HB, max. (maximum) | 187 |
At Sumakhsteel, we’re proud to be the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated in the USA, we hold an extensive stock of more than 25,000 tons of top-grade materials ready and available in inventory.
Reach out to us for a fast quote tailored to your requirement.
We supply these Carbon Steel Forged Fittings conforming to DIN, ISO, JIS or ANSI Standard.

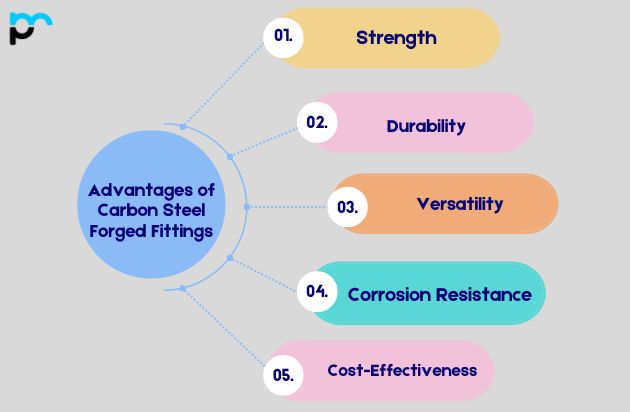

Strength: Carbon steel is recognized for its excellent strength-to-weight ratio, which makes it a favored material for forged fittings in applications where strength is essential.
Durability: Forged fittings made of carbon steel are extremely durable and withstand wear and tear well, guaranteeing long life and dependability across a variety of industrial applications.
Versatility: Carbon steel forged fittings are suitable for a broad spectrum of applications throughout industries like oil and gas, chemical processing, power generation, and beyond.
Corrosion Resistance: Although carbon steel can be prone to corrosion, applying suitable coatings and treatments can improve its corrosion resistance, making it appropriate for use in mildly corrosive settings.
Cost-Effectiveness: Carbon steel is typically more affordable than stainless steel and other alloys, making it an economical option for numerous applications without sacrificing quality and performance.
Carbon Steel Forged Fittings serve applications as varied as the industries that depend on them, led chiefly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Oil and Gas Industry: Carbon steel meshed fittings see broad use in piping systems throughout the oil and gas sector, covering refineries, petrochemical plants and pipelines. They work well for high-pressure and high-temperature uses, including the transport of crude oil and natural gas.
Shipbuilding: Carbon steel mesh fittings produce various pipelines for ships and vessels within the shipbuilding industry. They deliver strength and reliability in marine settings that demand corrosion resistance.
Power Generation: Within power plants, carbon-steel forged fittings offer benefits in steam, water and gas piping systems. They are employed in boilers, turbines, and other equipment operating under high-pressure and high-temperature conditions.
Chemical Industry: Carbon steel mesh fittings are the preferred choice in chemical plants that call for corrosion resistance. A range of chemicals and acids are conveyed safely through the pipes.
