The pipes provided by Sumakhsteel are meticulously engineered to satisfy demanding industry standards, guaranteeing outstanding durability and dependability. Carbon Steel API 5L X56 pipe are built for numerous industrial uses, delivering superb performance in tough conditions. Clients gain from hassle-free processes, competitive pricing and quick delivery, which boosts efficiency and satisfaction. Head to our website for comprehensive details and to discover the penetration of carbon steel pipe.
| Grade | GR X56 |
|---|---|
| Sizes | Nominal Size 1/2 inxh to 48 inch O.D. Pipe Wall Thickness – Schedule 10 through 160, STD, XS, XXS. |
| Product Specification Level (PSL) |
|
| Origin | Indian, Japanese, Korean, European, US, Ukraine, Russian |
| Thickness | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XS, SCH XXS, All API 5L ERW Pipe Wall Thickness available in stock |
| End | Plain, Bevel, Screwed, Threaded |
| Type | Seamless, Welded, ERW, Fabricated, CDW |
| Length | Single Random, Double Random & Required Length, Custom Size – 12 Meter lengths |
| Testing and Inspection Reports | EN 10204 3.1, Mill TC EN 10204 3.1, Third Party Inspection Reports, Visual Inspection Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Chemical and Mechanical Reports, NABL Approved Lab |
| Packing | ERW Pipe Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
| uses & Application | ERW Pipe used for Conveying gas, water, oil, and other liquefied media in Oil Refineries, Petrochemicals, Steel, Sugar, Boiler Equipments, Pressure Vessels, Power Generation (Nuclear/Thermal) and General Engineering Purposes |
| Other manufacturers | MSL, ISMT, JSL, USL, Lontrin, BAO, TNRS, SMTM, V&M and Wuxi |
| BS EN 10208-2:2009 | ERW pipelines for combustible fluids. Suitable to use in maximum operating pressure over 16 bar. |
| API 5L-PSL 1 Chemical Requirements | ||||||||
|---|---|---|---|---|---|---|---|---|
| Grade | Composition, % | |||||||
| C max | Mn max | P | S max | V max | Nb max | Ti max | ||
| min | max | |||||||
| B | 0.28 | 1.2 | – | 0.03 | 0.03 | c.d | c,d | d |
| X56 | 0.28 | 1.4 | – | 0.03 | 0.03 | d | d | d |
| API 5L-PSL 1 Mechanical Properties | |||
|---|---|---|---|
| Grade | Yield Strength Mpa | Tensile Strength Mpa | Elongation |
| B | 245 | 415 | c |
| X56 | 390 | 490 | c |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for all your piping requirements. Backed by cutting-edge manufacturing facilities strategically situated in the USA, we maintain an extensive inventory of more than 25,000 tons of top-grade materials kept readily in stock.
Reach out to us for a fast quote on your requirement.
We supply These Carbon Steel API 5L X56 Pipes conforming to DIN, ISO, JIS or ANSI Standard.

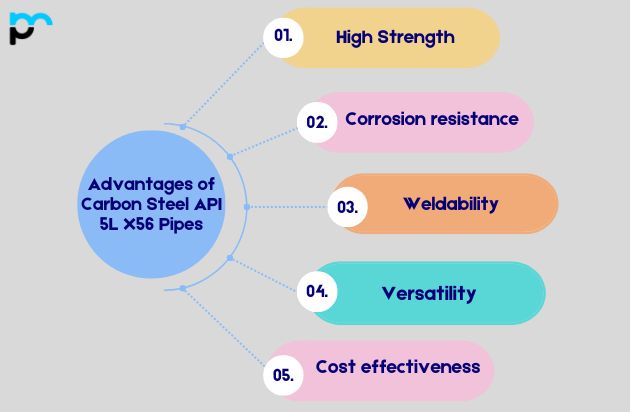

High Strength: API 5L X56 pipes offer outstanding tensile strength, which makes them well-suited for high-pressure and high-stress applications.
Carbon Steel API 5L X56 Pipes serve applications as varied as the industries they support, led chiefly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Yes, Carbon steel API 5L X56 pipe are suitable for use in construction. Their strong tensile capacity, long-lasting nature, and ease of welding make them a good fit for frames, supports, and other structural elements. These pipes can endure significant stresses and strains, delivering dependable performance in demanding conditions. Their adaptability means they can serve a wide range of construction and industrial uses, promoting both safety and efficiency. Proper design and engineering methods should be applied to guarantee efficiency in construction management.
