Home > Carbon Steel > Carbon Steel DIN-1629 Pipe
Discover top-quality carbon steel pipes on our product pages, where we present a wide selection of premium solutions suited to varied engineering and mechanical requirements. Built with precision for lasting durability, our Carbon Steel DIN-1629 pipes satisfy rigorous industry benchmarks, guaranteeing dependability across every use. Through customizable choices, competitive rates, and fast shipping, we place customer satisfaction first. Enhance your projects with our reliable carbon steel pipes, backed by our unwavering dedication to excellence.
| Standard | DIN 1629 |
| Grade | ST52 |
| Size in MM | 4 To 190 x Wall Thickness 0.5 To 15 |
| Outer Dimensions in MM | 4 To 60 |
| Wall Thickness in MM | 0.5 To 8 |
| Schedule | Schedule XS, Schedule 160, Schedule 40, Schedule XXS, Schedule 80 Supplier and Manufacturer |
|---|---|
| Length in MM | 6000 |
| Pipe Marking | All Pipe are marked as follows: Supplier or Manufacturer’s Name, Standard, Grade, OD, Thickness, Length, Heat Number |
| St37.0 | 1.0254 | 0.17 | 0.040 | 0.040 | 0.009²) |
| St44.0 | 1.0255 | 0.21 | 0.040 | 0.040 | 0.009²) |
| St52.0³) | 1.0421 | 0.22 | 0.040 | 0.035 | – |
| Steel Grade | Upper Yield Stress ReH for wall thickness, in mm, | Tensile strength Rm N/mm² | Elongation(%) A5 | ||||
|---|---|---|---|---|---|---|---|
| Symbol | Material Number | up to 16 | over 16 up to 40 | over 40 up to 65 | Longitudinal | Transverse | |
| St 37.0 | 1.0254 | 235 | 225 | 216 | 350²) to 480 | 25 | 23 |
| St 44.0 | 1.0256 | 275¹) | 265¹) | 255¹) | 420²) to 550 | 21 | 19 |
| St 52.0 | 1.0421 | 355 | 345 | 335 | 500²) to 650 | 21 | 19 |
At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for all your piping requirements. With cutting-edge manufacturing facilities strategically situated across the USA, we maintain an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.
Reach out to us for a fast quote tailored to your requirement.
We provide these Carbon Steel DIN-1629 Pipe conforming to DIN, ISO, JIS or ANSI Standard.

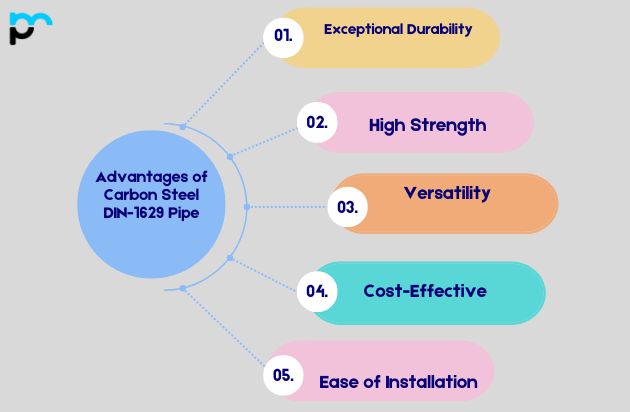

1. Exceptional Durability: Carbon steel DIN-1629 pipes deliver strength and durability, which makes them well-suited for tough industrial uses.
2. High Strength: These pipes demonstrate outstanding tensile strength, ensuring dependability and structural soundness across a range of working conditions.
3. Versatility: Carbon steel DIN-1629 pipes are adaptable and can serve a wide variety of purposes, including construction, machinery, and transportation.
4. Cost-Effective: They provide an economical option thanks to their durability and minimal upkeep needs, making them cost-efficient throughout their lifespan.
5. Ease of Installation: Carbon steel DIN-1629 pipes are fairly simple to install, cutting down on time and labor expenses during construction or maintenance work.
Carbon Steel DIN-1629 Pipe uses are as varied as the sectors they support, propelled chiefly by the aerospace, railway, construction and automotive sectors along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Yes, Carbon Steel DIN-1629 pipes are suitable for structural uses. They are made for non-pressure applications and are widely used in structural engineering thanks to their strength and adaptability. That said, they must be applied in line with the project’s particular needs and the applicable standards.
