| Specifications | : | ASTM B381 / ASME SB381 |
| Size | : | 1/2″NB TO 60″NB |
| Standards | : | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | : | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | : | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated across the USA, we maintain an extensive inventory of more than 25,000 tons of top-quality materials kept in stock and ready to ship.
Reach out to us for a fast quote tailored to your needs.
Titanium Gr 5 Flanges are supplied by us in accordance with DIN, ISO, JIS or ANSI Standard.

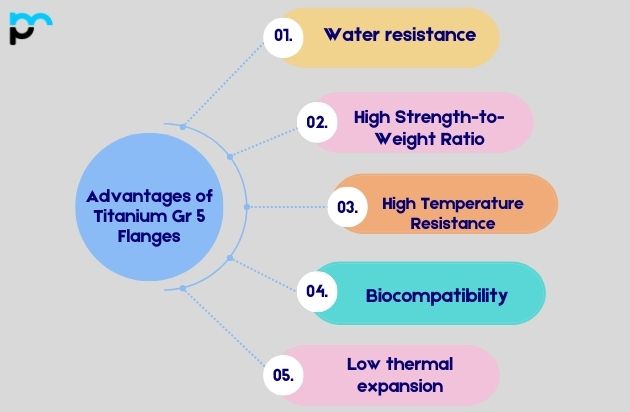

Water resistance: Titanium Grade 5 offers outstanding resistance to corrosion, particularly in settings involving salt water, acidic solutions, and chlorine. Because of this trait, it is well suited for uses where corrosion poses a risk, like marine environments or the pharmaceutical industry.
High Strength-to-Weight Ratio: Titanium Grade 5 features a high strength-to-weight ratio, which makes it remarkably strong yet considerably lighter than standard steel alloys. This quality proves especially valuable in space and within the automotive industry for fuel efficiency and performance. Reducing the alloy’s weight during manufacturing is important.
High Temperature Resistance: Titanium Grade 5 keeps its mechanical properties at elevated temperatures, which makes it appropriate for uses involving high temperatures or thermal cycles This quality is beneficial in fields such as aerospace, where the components it is applied to face extreme temperatures during operation.
Biocompatibility: Titanium grade 5 is biocompatible, meaning it is non-toxic and non-allergenic to the human body. This quality makes it perfect for medical implants, like orthopaedic and dental devices, where long-term tissue compatibility is needed.
Low thermal expansion: Titanium Grade 5 has a low coefficient of thermal expansion, meaning it undergoes less expansion and contraction as temperature changes. This quality is beneficial where it counts as a design factor, such as in precision machinery and equipment.
Titanium Gr 5 flanges play a vital role across numerous industries, spanning aerospace, chemical processing, marine, and oil and gas. Celebrated for their resistance to corrosion, low weight, and impressive strength, they deliver dependability in critical applications. Moreover, their biocompatibility renders them valuable resources in the medical and food processing sectors. Throughout these fields, titanium flanges are crucial for preserving system integrity and performance.
Aerospace Applications: Titanium Grade 5 flanges see extensive use in aerospace thanks to their high strength-to-weight ratio and outstanding resistance to corrosion. They serve in aircraft systems, engine parts, landing gear, and other critical applications.
Medical Applications: Titanium grade 5 is biocompatible, meaning it poses no harm to living tissue, which makes it well suited for medical implants and devices. Flanges produced from this compound can serve in orthopaedic implants, dental implants, surgical instruments and medical devices.
Chemical applications: The corrosion resistance of Titanium Grade 5 makes it ideal for chemical applications, including reactors, valves and piping systems. Flanges serve an important function across the various components of this system when combined together.
Marine Applications: Titanium Grade 5 shows outstanding resistance to corrosion from seawater, which makes it valuable in marine settings. Flanges built from this alloy are employed in marine equipment, including offshore platforms, moorings and propellers.
Power Generation: Titanium Grade 5 is applied in electrical generators because of its high strength and corrosion resistance in high-temperature conditions. Flanges can serve in turbines, heat exchangers, and other applications, such as power plants.
Quality: Titanium Grade 5 (Ti-6Al-4V) is the most widely used titanium alloy for flanges thanks to its outstanding blend of strength, corrosion resistance, and weldability. Make certain you use high-quality Grade 5 titanium; it is the flange material you select for improved performance.
Flange Type: Identify which type of flange your application calls for based on its requirements. Common uses include weld necks, slip-ons, socket welds, threaded, and blind flanges. Every method offers its own benefits and fits different applications.
Size and Dimensions: Define the flange size and dimensions according to what your piping system demands. Take into account factors like pipe size, pressure rating, and flange face type (raised face, flat face, or ring-shaped).
Pressure and Temperature Checks: Confirm that the flanges are configured to handle your application’s pressure and temperature conditions. Consult pressure and temperature charts and standards like ASME B16.5 or ASME B16.47 for direction.
Corrosion resistance: Titanium Grade 5 is recognized for its outstanding corrosion resistance, particularly in demanding environments such as seawater or chemical applications. When needed, verify that flange surfaces are suitably treated or coated to better withstand corrosion.
Titanium Grade 5 flanges are suitable for underground use when the right precautions are taken. Although they offer strong corrosion resistance, aggressive environments may call for surface treatment. Thoughtful design and installation are essential to endure soil conditions and mechanical damage.
Choosing suitable titanium Grade 5 flanges for your application means weighing operating conditions (temperature, pressure, corrosion), size and dimensions, compliance with industry standards, material quality, surface finish, ease of installation and maintenance, and the supplier’s reputation. By evaluating these factors and seeking advice from experts or trusted suppliers, you can be confident the flanges satisfy your performance, reliability, and longevity needs.
Yes Titanium Grade 5 flanges are suitable for structural applications thanks to their high strength, resistance to corrosion, and low weight. That said, thoughtful design and engineering must be taken into account to guarantee structural integrity, particularly with respect to load-bearing demands and how well they work alongside other materials within the structure.
