| Dimensions | ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS10, BS4504, BS1560, |
|---|---|
| Thickness | SCH10, SCH 80, SCH 100, SCH20, SCH30, STD SCH40, SCH 160, XXS, SCH60, XS, SCH 120, SCH 140, available with NACE MR 01-75 |
| Type | DN15-DN1200 |
| Connection | Welding |
| Bending Radius | R=2D, 3D, 5D, 6D, 8D, 1D, 10D or Custom |
| Manufacturing process | Press, Forge, Push, Cast, etc. |
| Specialized manufacturer of | Tees, Crosses, Reducers, 90º Elbows, Stub End, Pipe Bend, 45º Elbows, Pipe Cap |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
At Sumakhsteel, we’re proud to stand as the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. Backed by modern production facilities strategically situated in the USA, we maintain an extensive inventory of more than 25,000 tons of top-grade materials kept ready in stock.
Reach out to us for a fast quote on your requirement.
These Titanium Gr 2 Pipe Fittings are supplied by us in accordance with DIN, ISO, JIS or ANSI Standard.

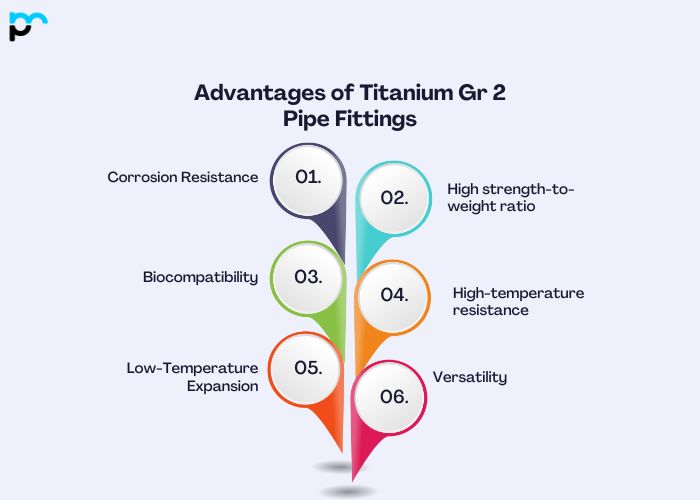

Corrosion Resistance: Titanium Grade 2 offers excellent resistance to corrosion, particularly in chloride, seawater, acidic and alkaline conditions. This protection guarantees longevity and dependability, making it well-suited for environmental corrosion in the chemical sector as well as marine and offshore uses.
High strength-to-weight ratio: Titanium Grade II boasts a remarkable strength-to-weight ratio, rendering it stronger than polymetals while remaining considerably lighter. This characteristic is advantageous in applications that call for weight reduction, such as space, automobiles and sports equipment.
Biocompatibility: Titanium Grade 2 is biocompatible and non-toxic, making it perfect for medical implants, including orthopaedic implants and surgical instruments, and its compatibility with the human body lowers the risk as materials evil will be underneath and promotes connective tissue.
High-temperature resistance: Titanium Grade 2 retains its strength and integrity under high temperatures, making it appropriate for high-temperature uses across the aerospace, medical and electrical industries
Low-Temperature Expansion: Titanium Grade 2 shows low thermal expansion, which enhances the stability of the effect and lowers the risk of distortion or failure in applications involving temperature fluctuations. This characteristic is valuable in space, automotive, and industrial equipment.
Titanium Gr 2 Pipe Fittings have applications as varied as the sectors they support, led mainly by the aerospace, railway, construction and automotive sectors along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Chemical applications: Titanium Grade 2 pipe fittings resist corrosion, which makes them well suited for chemical applications involving corrosive chemicals
Marine Applications: Titanium Series 2 offers outstanding resistance to seawater, making it a good fit for marine uses like seawater desalination, shipbuilding and marine, so oil is used
Aerospace Applications: Because titanium is a lightweight but strong alloy, it holds great value in the aerospace sector. Class II titanium pipe fittings serve in aircraft hydraulic systems, parts, and exhaust pipes.
Medical Devices: Class II titanium is biocompatible and resistant to body fluids, which makes it appropriate for medical implants, surgical instruments and other medical devices
Power Generation: Titanium Grade 2 pipe fittings serve the electrical industry in heat exchangers, condensers, and other components that call for corrosion resistance and high strength
Yes, Titanium Grade 2 (Ti Gr 2) pipe fittings can in fact be recycled once they have been used. Titanium is an extremely recyclable material, and Grade 2 titanium ranks among the most widely used titanium alloys thanks to its outstanding corrosion resistance, solid weldability, and moderate strength.
Yes, Titanium Grade 2 pipe fittings work well for hygienic and sanitary uses because of their corrosion resistance, inertness, and biocompatibility. They see frequent use in sectors like pharmaceuticals, food processing, and medical devices, where cleanliness and purity are critical needs.
Titanium Grade 2 pipe fittings typically withstand galvanic corrosion when placed in contact with most other metals, thanks to their nobility and passivity. Nevertheless, under particular conditions involving specific metal pairings and electrolytes, galvanic corrosion can still take place, though at a slower pace than with other materials.
