Monel 400 Pipes

Home > Monel > Monel 400 Pipes

Monel 400 Pipes & Welded Pipe Suppliers and Manufacturer In USA.

Monel Alloy 400 Pipes, Monel N04400 Pipes Manufacturer in California, USA, Monel 400 EFW Pipe in New York, ASME SB 165 Alloy 400 Seamless Pipes Suppliers and Manufacturer in Texas, USA.

Uncover exceptional quality and performance with our Monel 400 Pipes, painstakingly built to shine across a wide variety of industrial uses. Designed with accuracy and know-how, our full lineup of Monel 400 Pipes meets the strictest industry benchmarks, guaranteeing outstanding longevity and protection against corrosion. As a trustworthy supplier, we put customer satisfaction first by providing tailored solutions, competitive rates, and swift shipping. Whether for construction, infrastructure, or industrial ventures, our Monel 400 Pipes reliably surpass expectations, establishing fresh benchmarks for dependability and innovation. Come along with us on a path toward excellence in material solutions, driven by our steadfast dedication to quality and performance.

Monel 400 Pipes Specifications

Standard	ASTM B165, B725 / ASME SB165, SB725
Standard	ASTM, ASME and API
Size	15 NB UP TO 400 NB IN SCH 5S, 10S,10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS
Length	Single Random, Double Random & Required Length, Cut Length
End	Plain End, Beveled End, Treaded

Monel 400 Pipes Chemical Composition

Element	Max	Min
Ni	–	63.0
Fe	1.0 – 2.5	–
C	0.3	–
Mn	2.0	–
Si	0.5	–
Cu	28.0 – 34.0	–
Al	0.50	–
S	0.02	–

Monel 400 Seamless Pipe Manufacturer in Texas , Alloy 400 Pipes Exporter in California, Monel 400 Pipes Manufacturer and Supplier in California, USA.

Monel 400 Pipes Mechanical Properties

Element	Monel 400
Density	8.8 g/cm3
Melting Point	1350 °C (2460 °F)
Tensile Strength	Psi – 80,000 , MPa – 550
Yield Strength (0.2%Offset)	Psi – 35,000 , MPa – 240
Elongation	40 %

Top Monel 400 Pipes Manufacturing Company in California

At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated in the USA, we hold an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.

Reach out to us for a fast quote tailored to your requirement.

Estos tubos Monel 400 los suministramos conforme a la norma DIN, ISO, JIS o ANSI.

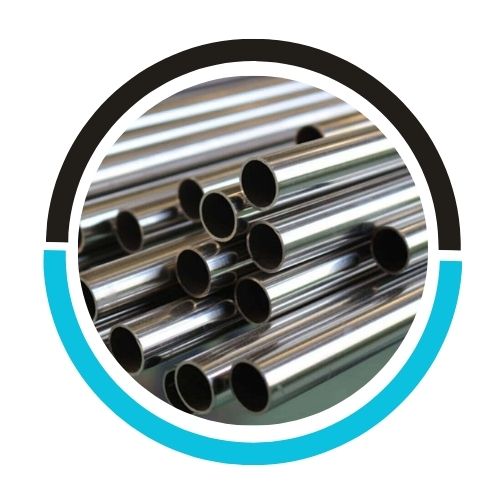

Monel N04400 Seamless Pipe in Texas, ASME B36.10 Monel 400 Pipe, ASTM B165 Monel 400 Seamless Pipe Supplier and Manufacturer in California.

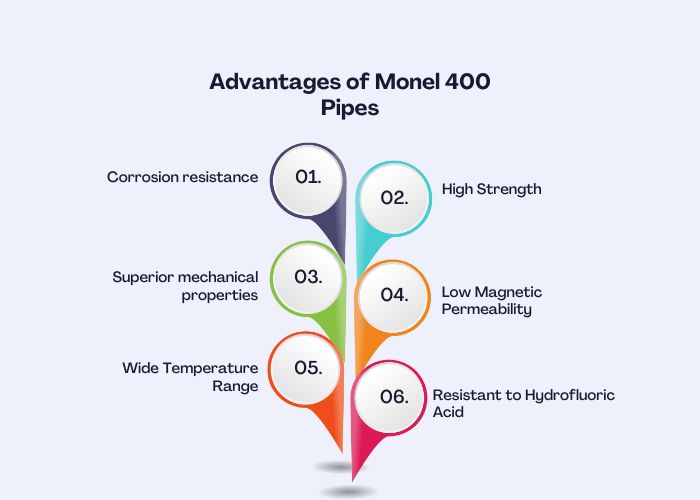

Advantages of Monel 400 Pipes

Corrosion resistance: Monel 400 pipes deliver outstanding resistance to corrosion, particularly within acidic and alkaline settings. As a result, they work well across a range of marine, chemical, and oil and gas uses.
High Strength: Even though it is a nickel-copper alloy, Monel 400 keeps its strength at elevated temperatures. Because of this trait, it is well suited to uses where structural integrity matters.
Superior mechanical properties: The Monel 400 pipe offers outstanding mechanical qualities, such as great flexibility along with rigidity. This enables them to endure high-stress conditions without failing or breaking down.
Low Magnetic Permeability: Monel 400 shows low magnetic permeability, which makes it appropriate for uses where reducing magnetic interference is essential, such as in electronics and aerospace applications
Easy to manufacture: Monel 400 can be machined and welded with ease, which makes it simple to produce pipe in a wide range of sizes and shapes to satisfy particular project needs.
Wide Temperature Range: Monel 400 pipes hold onto their mechanical qualities across a broad span of temperatures, from zero up to high levels, letting them serve in a variety of application conditions
Resistant to Hydrofluoric Acid: Monel 400 is remarkably resistant to hydrofluoric acid, a key characteristic in sectors that come into contact with this corrosive substance, such as chemical processing and finishing applications.

Types of Monel 400 Pipes

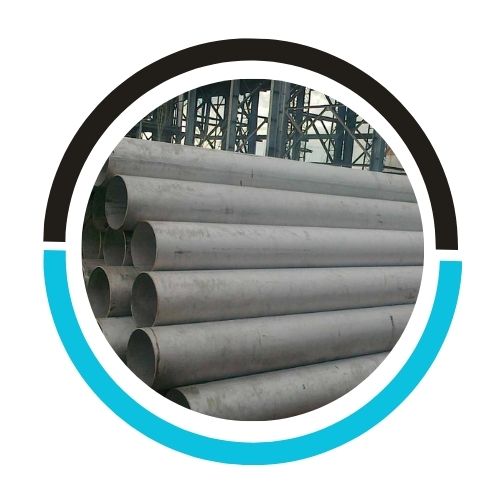

Monel JIS NW 4400 Pipes, Monel 400 Welded Pipe Supplier in Texas, Monel Alloy 400 ERW Pipes Manufacturer In Texas USA.

Monel 400 Pipes Uses

Application Industry

Monel 400 Pipes serve applications as varied as the industries they support, led chiefly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Marine Engineering

Aviation Industry

Chemical Processing

Oil and Gas Industry

Marine applications: Monel 400 pipelines offer excellent resistance to seawater and moisture under high temperatures, which makes them perfect for marine uses like shipbuilding, offshore oil production and desalination facilities
Chemical applications: Because Monel 400 pipe resists corrosion so well, it is well suited for chemical plants that handle acids, alkalis and other corrosive substances
Oil and Gas Industry: Monel 400 pipe serves many sectors of the oil and gas industry, such as pipelines carrying crude oil, natural gas, and other hydrocarbons, along with equipment in locations where it degrades, like oil refineries and fuel refineries
Heat Exchanger: Owing to its resistance to high temperatures and corrosion, the Monel 400 pipe moves heat between two media without contaminating heat exchangers.
Power generation: Monel 400 pipes are applied in power generation equipment, particularly in hot air and hot climate situations such as boilers and condensers
Aerospace: Within the aerospace industry, Monel 400 pipe is employed in critical applications that demand high strength and corrosion resistance, such as aircraft engines and hydraulic systems
Desalination Machinery: Monel 400 pipes are appropriate for desalination facilities where seawater enters seawater, salt, and other corrosives during the process of conversion to fresh water in
Food processing: The resistance of Monel 400 to corrosion and acidic food makes it a good choice for food processing equipment where cleanliness and durability matter
Medical Equipment: Monel 400 pipe is used in various medical devices and instruments, especially those that call for corrosion resistance and bio-odor

How to Choose the Right Monel 400 Pipes

Understand your requirements: Identify the purpose and application of the pipe. Take into account factors like temperature, pressure, corrosion resistance, and compatibility with the liquid or air being transported.
Materials: Monel 400 is a nickel-copper alloy recognized for its outstanding corrosion resistance across a range of environments, including seawater and chemical processes. Confirm that Monel 400 fits your application based on its physical characteristics.
Size and Dimensions: Establish the necessary pipe size and dimensions according to your system’s flow rate, pressure, and space limitations. Verify that the pipe satisfies the standards and specifications needed for the dimensions.
Characteristics and Standards: Pick a pipe that meets industry standards, such as ASTM B165 for seamless pipe or ASTM B725 for welded pipe. Make sure the pipe is produced by reputable manufacturers with a proven track record.
Corrosion resistance: Monel 400 delivers outstanding corrosion resistance, particularly in acidic and alkaline environments. Assess the corrosion resistance needed for your application and confirm the pipes are adequately protected.
Mechanical properties: Take into account the mechanical properties of the pipe, including tensile strength, yield strength, and length. Confirm the piping possesses the strength and flexibility to endure the operating conditions and installation requirements.
Things to Consider: Compare the pricing of Monel 400 pipes across different suppliers. However, place the quality and suitability of your application above cost to prevent potential problems and downtime down the road.
Supplier Reputation: Select a dependable supplier known for delivering high-quality Monel 400 pipe. Seek out suppliers with experience providing pipe for comparable applications and review customer feedback and testimonials for insights on product quality and performance.

Can Monel 400 Pipes be Used for Structural Applications?

Monel 400 Pipes are chiefly intended for high-corrosion settings owing to their outstanding resistance to a range of corrosive agents. Although they have good mechanical properties, they are not usually employed in structural applications because their strength is limited relative to other structural materials such as steel or aluminum.

ASME SB 165 UNS N04400 Pipes, Alloy 400 Seamless Pipe Supplier in California, Monel 400 Pipes Supplier and Manufacturer in Texas, USA.

FAQ (Frequently Asked Questions)

Can Monel 400 Pipes be Used for Underground Applications?

Monel 400 pipes work well for underground uses where resisting corrosion matters most, such as in pipelines carrying corrosive fluids or in marine settings. That said, elements like the makeup of the soil and possible abrasion can influence how long they last, calling for correct installation methods and attention to enduring durability over time.

Can Monel 400 Pipes be Recycled after use?

Yes, Monel 400 pipes can be recycled once they have been used. The alloy is highly recyclable, as it consists mainly of nickel and copper, both of which are valuable and readily recovered through recycling processes. Recycling Monel 400 pipes helps preserve resources and lessen environmental impact by reusing valuable materials.

What are the Considerations for Installing Monel 400 Pipes?

When installing Monel 400 pipes, considerations must include careful handling to avoid contamination, compatibility with joining techniques such as welding or brazing, and choosing appropriate fittings and fasteners that resist corrosion. Furthermore, providing sufficient support and safeguarding against mechanical damage is essential for lasting performance.
