Monel 400 Flanges

Home > Monel > Monel 400 Flanges

Monel 400 Flanges Manufacturer, Exporter and Supplier in California, USA.

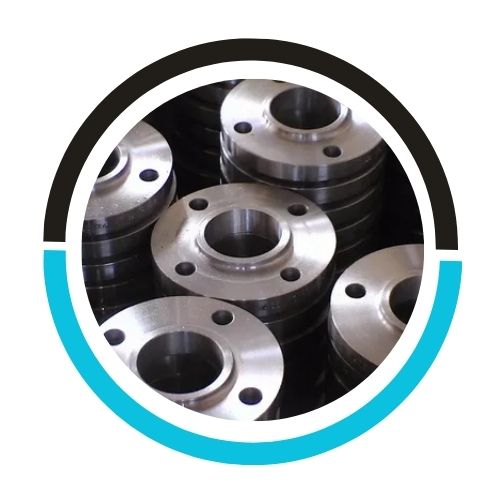

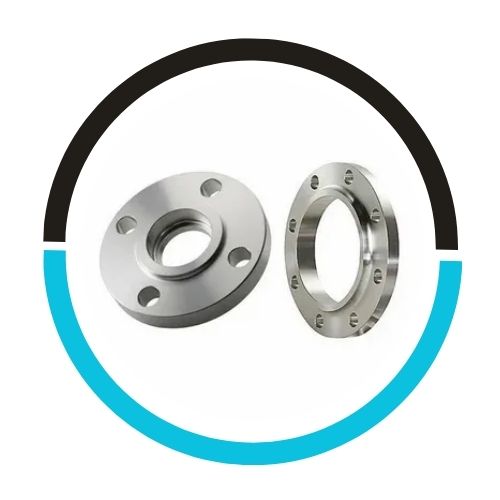

ASTM B564 Monel Slip On Flanges Exporter in Texas, Monel Werkstoff NR. 2.4360 RTJ Flanges Price in New York Manufacturer and Supplier in California, USA.

Monel 400 flanges are indispensable fittings used in piping systems where Monel 400, a nickel-copper alloy, is preferred for its outstanding properties. Monel 400 demonstrates notable corrosion resistance across a range of environments, making it well-suited for use in demanding conditions such as marine and chemical processing industries. The alloy’s natural resistance to acids and alkalis, combined with its high strength and durability, renders Monel 400 flanges appropriate for critical operations where reliability is essential. Furthermore, Monel 400 is composed primarily of copper and nickel, along with minor quantities of iron, manganese, and silicon, which contribute to its exceptional mechanical properties and long service life.

Monel 400 Flanges Specifications

Standard	ASTM B564 / ASME SB564
Dimensions	ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN
Standard	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges
Size	1/2″ (15 NB) to 48″ (1200NB)
Class/Pressure	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
Flange Face Type	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Monel 400 Flanges Chemical Composition

Monel 400	Ni	C	Al	Mn	Si	Fe	Cu	S
Monel 400	63.0 min	0.3 max		2.0 max	0.5 max	1.0 – 2.5	28.0 – 34.0	0.02 max

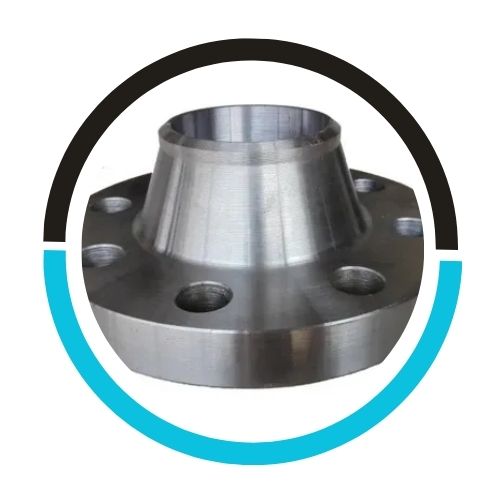

Monel DIN 2.4360 Spectacle Blind Flanges Price in Texas, Monel 400 Weld Neck Flanges Exporter In California, USA.

Monel 400 Flanges Mechanical Properties

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.8 g/cm3	1350 °C (2460 °F)	Psi – 35,000 , MPa – 240	Psi – 80,000 , MPa – 550	40 %

Top Monel 400 Flanges Manufacturing Company in California

At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge production facilities strategically situated across the USA, we maintain an extensive inventory of more than 25,000 tons of top-quality materials ready and waiting in stock.

Reach out to us for a fast quote tailored to your requirement.

We supply These Monel 400 Flanges in accordance with DIN, ISO, JIS or ANSI Standard.

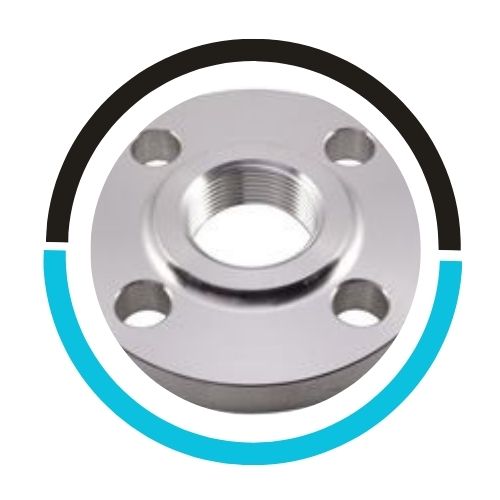

ASME SB564 Monel 400 Flanges Exporter in New York, Monel 400 Screwed Flange Price in Texas USA, Monel 400 Threaded Flanges Dealer in California, JIS NW 4400 Flanges Manufacturer and Supplier in Texas USA

Advantages of Monel 400 Flanges

Corrosion Resistance: Monel 400 offers resistance against corrosion caused by seawater, acids, alkalis, and other aggressive chemicals. As a result, Monel 400 flanges are well-suited for marine settings, chemical processing facilities, and other corrosive surroundings.
High strength: Even with its corrosion resistance, Monel 400 maintains outstanding mechanical characteristics, such as high tensile strength and stiffness. This guarantees that Monel 400 flanges are long-lasting and capable of enduring heavy loads.
Excellent weldability: Monel 400 is readily weldable using standard welding methods, including gas metal arc welding, gas tungsten arc welding, and shielded metal arc welding. This eases the production of Monel 400 flanges and supports robust structural assembly.
Wide Temperature Range: Monel 400 preserves its mechanical characteristics across a broad temperature span, from zero up to high temperatures. This adaptability lets Monel 400 flanges serve in diverse temperature conditions without sacrificing performance.
Low Magnetic Permeability: The Monel 400 displays low magnetic permeability, which makes it appropriate for uses where magnetic interference matters, such as electronics or magnetic resonance imaging (MRI) equipment
Simple machining: The Monel 400 can be produced with conventional machining, including turning, grinding, drilling and tapping. This streamlines the manufacture of Monel 400 flanges and permits them to be tailored to particular needs.

Types of Monel 400 Flanges

Monel Alloy 400 Pipe Flanges Dealer in Texas, Monel 400 Flate Face Flange Exporter in California, Monel 400 Raised Face Flanges Manufacturer and Supplier in Texas.

Monel 400 Flanges Uses

Application Industry

Because Monel 400 Flanges offer outstanding mechanical properties and stand up to wear corrosion and high temperatures, they see broad use across many industries. These flanges are commonly employed in the oil and gas, petrochemical, power generation, and aerospace industries. They serve a key role in connecting equipment, valves, and pipe systems. Their remarkable strength, toughness, and wear resistance make them ideal for applications subjected to harsh operating conditions, including high temperatures, high pressures, and corrosive environments.

Oil & Gas Industry

Aerospace Industry

Petro Chemical Industry

Power Generation Industry

Marine Applications: Monel 400 flanges are extensively utilized in marine settings because of their resistance to seawater. They serve in marine pipeline systems, offshore oil pipelines, and shipbuilding.
Chemical applications: Monel 400 flanges are favored in corrosive chemical industries thanks to their resistance to a range of chemicals, including sulfuric acid, hydrofluoric acid, and alkali. They are additionally employed in chemical plants, refineries, and for the transportation of chemicals.
Oil and Gas Industry: Monel 400 flanges are applied in the oil and gas sector, particularly in equipment exposed to corroded zones such as pipelines, valves and fittings
Aerospace: In aerospace applications where parts endure high stresses and corrosive environments, Monel 400 flanges can serve in engine components, fuel systems and hydraulic systems
Power generation: Flanges made from Monel 400 are used in electrical equipment, especially in zones requiring corrosion resistance, such as steam turbine systems and heat exchangers
Water Processing: Monel 400 flanges are also employed in washrooms, particularly in areas where corrosive or salty waters occur

How to Choose the Right Monel 400 Flanges

Understand the requirements of your application: Identify the operating conditions to which the flanges will be subjected, such as temperature, pressure, corrosive environments, and additional factors.
Compatibility: Monel 400 is recognized for its outstanding resistance to corrosion across a range of environments, particularly in marine and chemical uses. Verify whether Monel 400 fits the intended application and won’t underperform on other surfaces. It will be included.
Size and thickness: Establish the necessary size, pressure rating, and flange thickness for the piping system in which it will be used. Confirm compatibility with the existing equipment and piping that will be used.
Flange Type: Determine which type of flanges your application requires. Common applications involve weld neck, slip-on, threaded, socket weld, blind, and lap joint flanges. The selection hinges on the assembly method, pressure needs, and shallow space.
Pressure Pressure: Take into account the level of pressure your application demands. Generally, Monel 400 flanges offer solid pressure holding capacity, but ensure they satisfy or surpass your system’s pressure requirements.

Are Monel 400 Flanges Weldable?

Yes, Monel 400 flanges can be welded through several methods, including TIG (GTAW), MIG (GMAW), and SMAW (stick welding). That said, preheating and post-weld heat treatment are frequently advised to reduce the chance of weld cracking and to achieve the best mechanical properties.

ASTM B564 Monel Alloy 400 Flange Supplier in California USA, Monel 400 Flanges Manufacturer in Texas, Alloy 400 Flanges, Nickel Alloy 400 Flanges Dealer in California USA, Monel N04400 Flanges Exporter in Texas, USA.

FAQ (Frequently Asked Questions)

What maintenance is required for Monel 400 Flanges?

Maintaining Monel 400 flanges generally requires regular inspection to detect corrosion or wear, cleaning to eliminate contaminants, and verifying that sealing remains intact. Routine examinations for leaks and the tightening of connections may be required. In corrosive settings, the use of protective coatings or inhibitors can help prolong the flanges’ service life.

Are Monel 400 Flanges environmentally friendly?

Monel 400 flanges are regarded as eco-friendly because they can be recycled and have a long service life, cutting down on the need for regular replacements. Furthermore, Monel 400’s ability to withstand corrosion across different environments lowers the chance of material leaching or contamination, making it a sustainable option for numerous applications.

What is the maximum temperature at which Monel 400 Flanges can operate?

Monel 400 flanges are generally suitable for service at temperatures reaching roughly 800°F (427°C) in non-oxidizing conditions. That said, under elevated temperatures or in oxidizing atmospheres, the material can suffer diminished mechanical properties and greater vulnerability to corrosion, making it necessary to carefully evaluate operating conditions to achieve optimal performance.
