Inconel 825 Tube Fittings Manufacturer & Supplier In California, USA.

Inconel 825 Tube Fittings Price in USA, Inconel 625 UNS N08825 Imperial Fittings, ASME SB 564 Fittings in New York

Enhance your mechanical system with our top-tier Inconel 825 Tube Fittings. Built for exceptional durability and resistance to wear-and-tear, these fittings thrive in demanding environments, delivering superior performance. Count on us for dependable, competitively priced products, along with quick delivery to help drive your business toward success.

Inconel 825 Tube Fittings Specifications

ASME B1.1 Materials Standard & Specification

ALLOY 825 INSTRUMENTATION FITTINGS
Straight fittings and tube adapters	Elbows, crosses, and tees
ASTM B446	ASTM B564, ASME SB564

PSI Pressure Ratings

High Pressure Tube Fittings
Low Pressure Tube Fittings
3000 PSI
6000 PSI
10000 PSI
15000 PSI
20000 PSI
400 Bar

Incoloy 825 Tube Fittings and Adapter Fittings Maximum Allowable Working Product Pressure

Upto 100°F : 11600 – 9000 psig
At maximum temperature: 9396 – 4779 psig @ 450°F (232°C) Max with sealant

Pipe Threads

NPT (ASME B1.20.1, MILL-P-71058)
ISO Parallel – BSPP (BS 2779, ISO 228, JIS B 0202)
ISO Tapered – BSPT (BS 21, ISO 7, JIS B 0203)
ISO / BSP (Gauge) (ISO 228, BS 2779)
Unified (SAE) (ASME B 1.1)

Incoloy 825 Tube Fittings Other Trade name

Incoloy 825 Instrumentation Fittings
ASME SB 564 UNS N08825 Incoloy Pneumatic Fittings
Incoloy Alloy 825 Compression Fittings
ASTM B564 UNS N08825 Incoloy Push-To-Connect Fittings
Incoloy 825 Alloy Hydraulic Fittings
Nickel Alloy 825 Hydraulic Hose Fittings
Incoloy 825 UNS N08825 Compression Tube Fittings
Werkstoff 2.4858 Incoloy Instrumentation Tube Fittings
Incoloy 825 Din 2.4858 Double Ferrule Fittings
UNS N08825 Incoloy 825 Double Ferrule Tube Fittings
Incoloy 8825 Ferrule Fittings
2.4858 Incoloy Twin Ferrule Fittings
Incoloy UNS No 8825 JIC Fittings
2.4858 Incoloy 825 Flare Fittings

Features

Easy to disconnect and retighten.
Available in wide configurations
Various Sizes
Best choice for instrumentations, process & control systems
Zero leakage even under tough working conditions
Gaugeable Bodies
Excellent gas-tight seal
Incoloy 825 Tube Fittings are fully interchangeable with Swagelok
Leak-proof joints capable of satisfying high pressure vacuum and vibration application

Test & Certification

ECE R110, EC-79, NACE MR0175/ISO 15156 and MR0103.

We also stock & supply

Swagelok Tube Fittings
Parker Fittings
DK LOK Fittings
Hamlet Letlok Fittings
DUOLOK Fittings
GYROLOK Fittings
TYLOK Fittings
BILOK Tube Fittings

Port

Mumbai, India

Inconel 825 Tube Fittings Mechanical Properties

Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
825	8.14 g/cm3	1400 °C (2550 °F)	Psi – 80,000 , MPa – 550	Psi – 32,000 , MPa – 220	30 %

Inconel 825 Tube Fittings Chemical Composition

Alloy	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
825	0.05 max	1.00 max	0.5 max	0.03 max	1.50 – 3.00	22.00 min	38.00 – 46.00	19.50 – 23.50	0.02 max	0.06 – 1.20

Top Inconel 825 Tube Fittings Manufacturing Company in California

At Sumakhsteel, we’re proud to be the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated in the USA, we maintain an extensive stock of more than 25,000 tons of top-grade materials available on hand.

Reach out to us for a fast quote tailored to your needs.

We supply these Inconel 825 Tube Fittings in compliance with DIN, ISO, JIS or ANSI Standard.

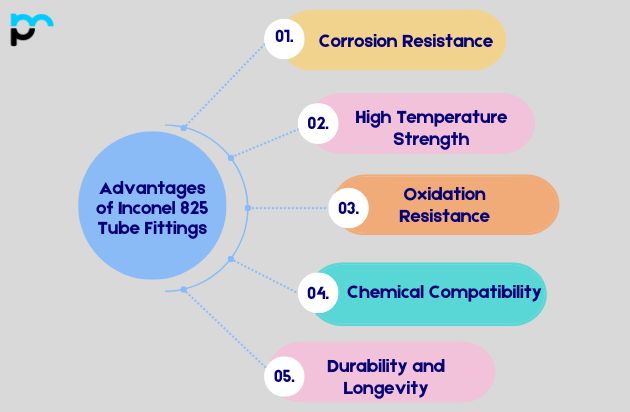

Advantages of Inconel 825 Tube Fittings

Corrosion Resistance: Inconel 825 tube fittings deliver outstanding protection against corrosion, especially in acidic and corrosive settings, which makes them appropriate for a broad spectrum of industrial uses.
High Temperature Strength: These fittings retain their mechanical properties even at high temperatures, guaranteeing dependable performance in applications where resistance to heat is essential.
Oxidation Resistance: Inconel 825 tube fittings demonstrate superb resistance to oxidation, which makes them appropriate for use in settings containing high concentrations of oxygen or oxidizing agents.
Chemical Compatibility: They show strong resistance to a broad array of chemicals, such as acids, alkalis, and organic compounds, making them well-suited for use in chemical processing industries.
Durability and Longevity: Inconel 825 tube fittings are recognized for their durability and long service life, delivering dependable performance and cutting down the need for regular maintenance or replacement.

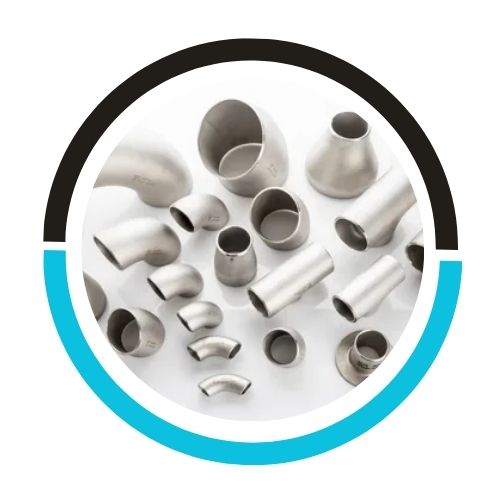

Types of Inconel 825 Tube Fittings

Application Industry

Oil & Gas Industry

Automotive Industry

Petro Chemical Industry

Power Generation Industry

Are Inconel 825 Tube Fittings Recyclable?

Yes, Inconel 825 tube fittings can be recycled. Valued for its corrosion resistance, this nickel-iron-chromium alloy can be reprocessed and put back into use, making it an eco-conscious choice across a range of industrial applications. Recycling Inconel 825 aids in conserving resources and cutting down on waste.
