Home > Duplex Steel > Duplex Steel Tubes S32205
| Specifications | : | ASTM A789 ASME SA789 |
| Dimensions | : | ASTM, ASME and API |
| Tube Size | : | 1/2″NB TO 12 “NB IN |
| Specialized in | : | Large Diameter Size |
| Schedule | : | SCH20, SCH30, SCH40, STD, SCH80 |
| Type | : | Seamless / ERW / Welded / Fabricated |
| Form | : | Round, Hydraulic Etc |
| Length | : | Single Random, Double Random & Cut Length. |
| End | : | Plain End, Beveled End, Treaded |
S32205 | C | N | P | Si | Mn | Mo | Fe | Cr | S | Ni |
| 1.0 | 0.03 | 0.02 | 2.0 | 3.0 – 3.5 | 22.0 – 23.0 | 0.03 | 4.5 – 6.5 | 0.14 – 0.2 | Bal |
S32205 | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge production facilities strategically situated in the USA, we hold an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.
Reach out to us for a fast quote tailored to your requirement.
These Duplex Steel Tubes S32205 are supplied by us in compliance with DIN, ISO, JIS or ANSI Standard.

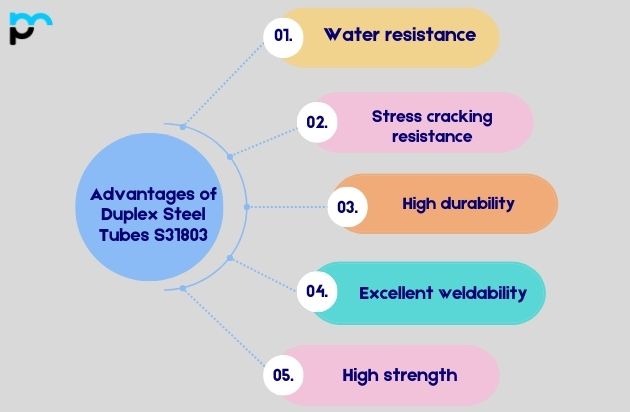

Water resistance: Duplex stainless steel tubes offer strong corrosion resistance, particularly in harsh conditions involving chlorides, acids and other corrosive substances. This capability comes from their elevated levels of chromium and molybdenum, which create protective oxides on the surface.
Resistance to Stress Corrosion Cracking: Duplex stainless steels, such as S32205, show excellent resistance to stress corrosion cracking, which makes them well suited for marine settings, chemical plants and the oil and gas sector.
Good weldability: These two-phase metal tubes can be readily joined using standard welding methods, like TIG (tungsten inert gas) and MIG (metal inert gas) welding. This eases production and assembly, cutting down on both time and expense.
Tough and extremely durable: Duplex stainless steel keeps outstanding hardness and flexibility even in cold temperatures, which makes it appropriate for uses that demand corrosion resistance.
High Strength: S32205 duplex steel has high strength when measured against austenitic and ferritic stainless steel. This elevated strength permits thinner tube walls, lowering weight and cost while enhancing structural integrity.
Duplex Steel Tubes S32205 find use across a wide range of applications, matching the variety of industries they support led chiefly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Chemical and petrol industries: Double-sided steel containers resist corrosion and corrosion, which makes them appropriate for use with corrosive chemicals and high temperatures
Pulp and Paper Industry: Duplex steel tanks serve the pulp and paper industry to handle the corrosion of chemicals employed in pulping processes and to withstand the high temperatures found in boilers and evaporators
Heat exchangers: Dual metal tubes are employed in heat exchangers for their outstanding heating and corrosion resistance, which makes them well suited for uses in chemical processing, power generation, and other industries
Desalination Mechanisms: Double-sided steel pipes are applied in desalination mechanisms for seawater transport and desalination because of the high chloride content of seawater in the indestructible
Oil and Gas Industry: Applied for pipelines, flows and risers in offshore and onshore oil and gas exploration and production, where resistance to corrosion, compression and fracturing is needed
Environmental and Service Conditions: Identify the operating conditions and operating conditions of your application, taking into account elements like temperature, pressure, corrosion, and so on. Kindly choose the suitable S32205 pipeline for those conditions and remove it to guarantee durability.
Certifications and Standards: Verify that S32205 duplex steel pipes comply with pertinent industry standards and certifications, including ASTM, ASME, or ISO standards. Testimonials confirm the quality and dependability of the content.
Fabrication Requirements: Take into account how easily the S32205 duplex steel tube can be fabricated, welded, and machined. This becomes particularly important if your project calls for intricate customization.
Mechanical properties: Assess the mechanical characteristics of the S32205, such as strength, stiffness, and toughness. Please ensure these attributes align with the demands of your application, whether they concern pressure gradients, temperature variations, or other stresses.
