Home > Duplex Steel > Duplex Steel Pipe 2205 Fittings
| Standard Specification : | Duplex Steel Fittings |
| Coating Fitting Faces : | Cold and Hot Dip Galvanized, Yellow Transparent, Oil Black Paint, Zinc Plated, Anti-rust Paint |
| Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
| Application: | Nuclear Power Plant Water Pipeline Industry Chemical Industry Oil And Gas Industry Fabrication Industry Natural Gas Industry |
| Rating Pressure: | Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS |
| Check Sizes: | (SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” ) |
| Fitting Machining Equipment: | Press machine, electric bevelling machine, Bending machine, Pushing Machine, Sand-blasting machine etc |
| Thickness: | View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160. |
| Standard: | MSS-SP-43 Type B Fittings, ANSI B16.28 Fittings, JIS B2312 Fittings, JIS B2313 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type A Fittings, MSS-SP-43 Type b Fittings |
| Gr. | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| 2205 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
| Grade | S31803 |
|---|---|
| C | 0.030 maximum |
| Mn | 2.00 maximum |
| Si | 1.00 maximum |
| P | 0.030 maximum |
| S | 0.020 maximum |
| Cr | 22.0 – 23.0 |
| Mo | 3.0 – 3.5 |
| Ni | 4.50 – 6.50 |
| N | 0.14 – 0.20 |
| Fe | 63.72 min |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every piping requirement you have. With cutting-edge manufacturing facilities strategically situated in the USA, we maintain an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.
Reach out to us for a fast quote tailored to your requirement.
We supply these Duplex Steel 2205 Pipe Fittings in accordance with DIN, ISO, JIS or ANSI Standard.

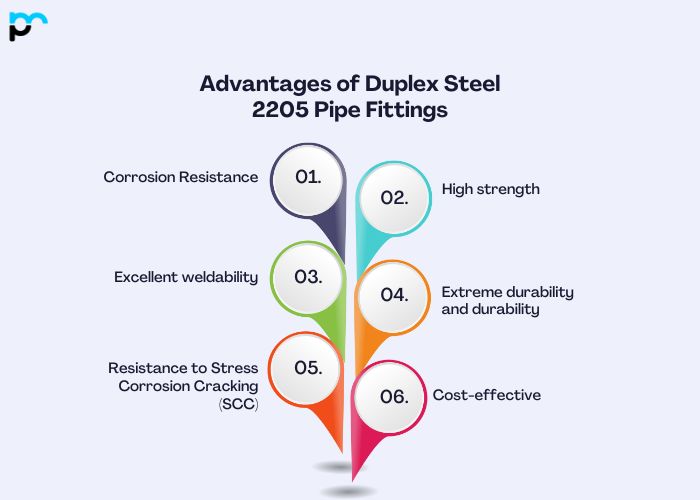

Corrosion Resistance: Duplex steel 2205 shows outstanding resistance to corrosion, particularly in harsh conditions like seawater, acidic and chloride-bearing solutions. Because of this corrosion resistance, it is well suited for marine uses, the oil and gas sector and pharmaceuticals.
High strength: Duplex steel 2205 has greater strength than austenitic or ferritic stainless steel. This allows for thinner walls, cutting weight and cost while keeping the structure level. It proves especially valuable in applications where weight matters.
Excellent weldability: In contrast to other high-strength alloys, duplex steel 2205 provides outstanding weldability. This eases design and construction and permits a broader variety of layouts and configurations in pipeline design.
Extreme durability and durability: Duplex steel 2205 retains its mechanical properties across a broad temperature span, yielding excellent durability even in low temperatures. This characteristic matters in applications set in harsh environments in the den.
Resistance to Stress Corrosion Cracking (SCC): Duplex steel 2205 shows resistance to stress corrosion cracking, a significant concern in high chloride settings. This resistance safeguards the integrity and long-term reliability of the piping system, lowering maintenance and downtime costs.
Duplex Steel 2205 Pipe Fittings serve a wide range of uses that are as varied as the industries relying on them, led mainly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Oil and Gas Industry: Duplex steel pipe fittings see extensive use across oil and gas exploration, production and refining operations. They are favored for their corrosion and erosion resistance in demanding areas like offshore drilling platforms and pipelines.
Chemical applications: The chemical resistance of 2205 duplex steel makes it well suited for chemical applications where corrosive substances are frequently encountered. It serves in reactors, molds, piping systems, and additional equipment.
Marine applications: Duplex steel 2205 pipe fittings serve marine applications thanks to their resistance to chloride-induced stress corrosion cracking, a frequent problem in seawater environments. They are employed in shipbuilding, offshore residential, and desalination plants.
Petrochemical Industry: Duplex steel 2205 fittings are applied in petrochemical plants for piping systems that handle a range of fluids, corrosives among them. They deliver high strength while resisting both general and local corrosion.
Water treatment: Duplex steel pipe is used in laundry facilities that demand corrosion resistance and strength, and in pipelines that convey purified water, salt, and other liquids.
Power generation: Duplex steel 2205 fittings are used in power plants, including nuclear, thermal, and renewable energy facilities. They also serve in pipeline systems that transport steam, water, and chemicals.
Check application: Grasp the operating parameters, including pressure, temperature, and the demands for corrosion resistance. Duplex steel 2205 is recognized for its outstanding strength and resistance to corrosion, which makes it appropriate for numerous uses across industries like oil and gas, chemical processing and marine environments.
Compatibility: Confirm that the duplex metal works well with liquid or airflow moving through the 2205 piping system. Take into account elements like chemical makeup, pH values, and the likelihood of degradation or damage.

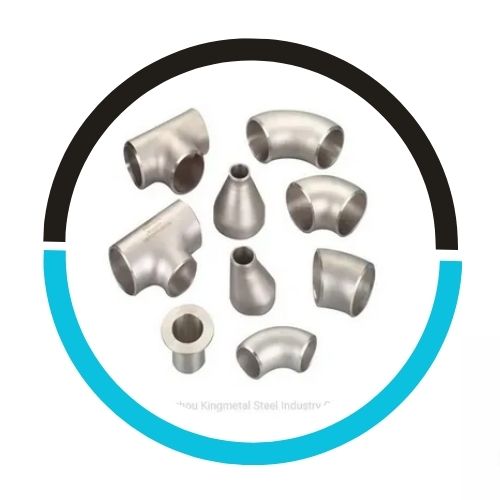

Size and Dimensions: This defines the necessary size and dimensions for the pipe fittings. Duplex steel 2205 pipe fittings come in various sizes and types, such as elbows, tees, reducers, couplings, and flanges.
Stress rating: Examine the stresses on duplex steel 2205 pipe fittings to confirm they can handle the system’s operating stresses without failing. Take into account elements like maximum operating pressure, temperature, and pressure fluctuations.
