Home > Copper Nickel > Copper Nickel 90/10 Pipe Fittings
Specifications : ASTM B122, B171, B466, B467
Standard : ANSI/ASME B16.9, B16.28, MSS-SP-43.
Size : 1/2″ to 24″ NB to 24″NB in Sch 10S, 40S, 80S, 160s, XXS
SCH : SCH 10, SCH20, SCH30, SCH40
Type : Seamless / Welded / Fabricated
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Cu-Ni 90/10 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
| Grade | Cu | Mn | Pb | Fe | Zn | Ni |
| Cupro Nickel 90/10 | 88.6 min | 1.0 max | .05 max | 1.8 max | 1 max | 9-11 max |
At Sumakhsteel, we’re proud to be the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge production facilities positioned strategically across the USA, we maintain an extensive inventory of more than 25,000 tons of top-grade materials kept ready in stock.
Reach out to us for a fast quote tailored to your requirement.
We supply These Copper Nickel 90/10 Pipe Fittings in accordance with DIN, ISO, JIS or ANSI Standard.

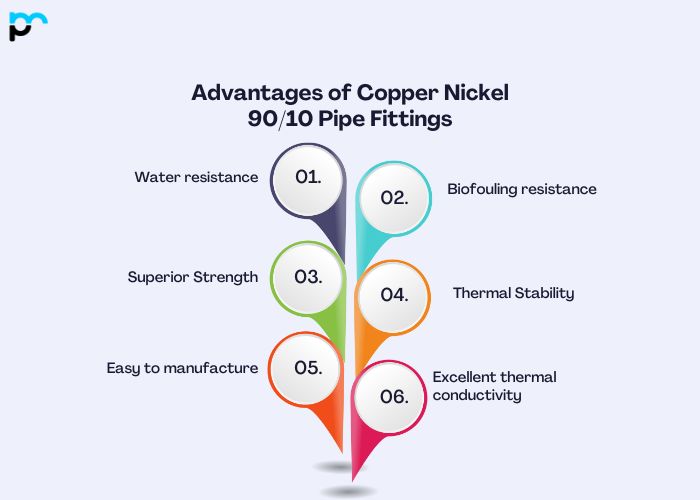

Water resistance: Copper Nickel 90/10 contains a considerable proportion of copper, giving it outstanding corrosion resistance across a range of environments, seawater included. This makes it well suited to marine applications where corrosion poses a concern. . .
Biofouling resistance: A composite’s resistance to biofouling (the buildup of microorganisms, algae, and other aquatic life on surfaces) is especially valuable in marine settings, lowers maintenance needs, and prolongs the lifespan of inserts.
Superior Strength: Copper Nickel keeps excellent mechanical properties even at temperatures of 90/10, guaranteeing structural integrity and reliability in extreme conditions.
Thermal Stability: The alloy displays outstanding thermal stability, making it appropriate for both high and low-temperature uses without sacrificing performance or durability
Easy to manufacture: Copper Nickel 90/10 is remarkably simple to manufacture, weld and fabricate, allowing cost-effective production and custom designs tailored to specific project needs.
Copper Nickel 90/10 Pipe Fittings uses are as varied as the sectors they serve, driven mainly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Marine applications: Copper-nickel 90/10 inserts offer strong resistance to corrosion from seawater, which makes them well suited for marine settings. They see frequent use in shipbuilding, offshore platforms, and desalination plants.
Heat exchanger: Because 90/10 copper nickel conducts heat so well, it works effectively in heat exchangers. Such materials are applied in HVAC systems, refrigeration units and industrial heat exchangers.
Oil and Gas Industry: Within the oil and gas sector, copper-nickel 90/10 fittings serve in pipelines, offshore rigs and processing facilities where resistance to corrosion and wear is critical
Desalination Mechanisms: Owing to their resistance to seawater, Copper Nickel 90/10 products are broadly applied in desalination mechanisms for tank systems, heat exchangers, and other vital applications
Power Generation: It also finds application in power plants for condenser and heat exchanger tubes, as well as in pipelines for conventional nuclear power plants
Chemical performance: Copper Nickel 90/10 fittings withstand many kinds of chemical corrosion, which makes them appropriate for use in the chemical industry across piping systems, valves and fittings
Compatibility: Copper Nickel 90/10 is a flexible alloy recognized for its outstanding resistance to marine corrosion and bio-odor. Make sure the fittings you select are constructed from 90/10 copper-nickel to align with your piping system.
Operating conditions: Take into account the temperature, pressure, and environmental conditions that the fitting will encounter. Copper nickel 90/10 offers excellent mechanical properties and can handle a range of temperatures and pressures. Even so, it remains essential to select materials suited to your particular operating conditions.
Size and thickness: Select fittings that correspond to the thickness and thickness of your piping system. Copper nickel 90/10 pipe fittings come in a variety of sizes and configurations, including elbows, tees, reducers, couplings, and flanges. Be certain that the fittings you pick align with your system’s pipe size and configuration.
Corrosion Resistance: A key benefit of Copper Nickel 90/10 is its remarkable corrosion resistance, particularly in marine settings. Confirm that fittings are made from high-quality copper nickel 90/10 alloy to achieve lasting corrosion resistance and minimal upkeep.
Pressure: Examine the pressure rating of the fittings to confirm they can endure the maximum pressure anticipated in your system without failing or leaking. Copper nickel 90/10 inserts typically provide good pressure retention, but confirming that they satisfy your specific requirements is important.
