Thickness : 5MM & Above
Width : 1500 – 3500mm
Length : 3000 – 18000mm
Grade : S690QL EN10137-2 EN10025-6:2004, A709-100, DILLIMAX 690, NAXTRA 70, WELDOX 700, E690, JFE HITEN 780LE, ALFORM 700
Percentage % | Element | Percentage % | Element |
0.050 | Cu | 0.020 | C |
0.070 | Mo | 0.080 | Si |
0.006 | Nb* | 1.070 | Mn |
2.00 | Ni | 0.0025 | P |
0.005 | Ti* | 0.0015 | S |
0.012 | V* | 0.0015 | N |
0.015 | Zr* | 0.00050 | B |
1.050 | Cr |
| Plate Thickness | Yield Strength | Tensile Strength | Elongation | Impact Strength |
| MM | ReH (MPa) | Rm (MPa) | A5 % Minimum | J, Minimum |
| 3 to 50 | 690 | 770 – 940 | 14 | 30 @ -40º C |
| > 50 to 100 | 650 | 760 – 930 | 14 | 30 @ -40º C |
| > 100 to 150 | 630 | 710 – 900 | 14 | 30 @ -40º C |
At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically positioned across the USA, we maintain an extensive stock of more than 25,000 tons of top-grade materials kept ready in inventory.
Reach out to us for a fast quote tailored to your requirement.
These Carbon Steel S690ql Steel Sheet and Plates are supplied by us in accordance with DIN, ISO, JIS or ANSI Standard.

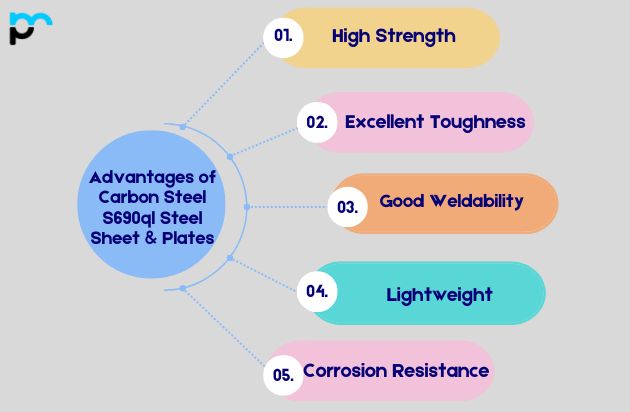

High Strength: S690QL carbon steel sheets and plates possess a high tensile strength, which makes them well-suited for applications that demand outstanding load-bearing capacity.
Excellent Toughness: These sheets and plates demonstrate remarkable toughness, guaranteeing that they can endure impact and dynamic loading conditions without failing.
Good Weldability: In spite of their high strength, S690QL carbon steel sheets and plates retain good weldability, allowing for straightforward fabrication and construction processes.
Lightweight: When compared to certain other high-strength steels, S690QL carbon steel sheets and plates provide a high strength-to-weight ratio, which makes them appropriate for weight-sensitive applications without sacrificing structural integrity.
Corrosion Resistance: Although not as corrosion-resistant as stainless steel, S690QL carbon steel nonetheless provides good resistance to atmospheric corrosion, especially when properly maintained and coated.
Carbon Steel S690ql Steel Sheet and Plates uses are as varied as the sectors they support, led mainly by the aerospace, railway, construction and automotive fields along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
