| Specifications | ASTM B348 / ASME SB348, ASTM B863 / SB863 |
| Dimensions | ASTM, ASME and API |
| Round Bar Size | 3mm~ 800mm. |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm. |
| Flat Bar Size | 2mm ~ 100mm. |
| Hex Bar Size | 2mm ~ 100mm. |
| Thickness | 50 mm to 6000 mm Long. |
| Length | 1 To 6 Meters, Custom Cut Length. |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging etc. |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| ELEMENT | Al | Fe | O | Ti | V |
| Titanium Gr 5 | 6 | 0.25 | 0.2 | 90 | 4 |
At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With modern manufacturing facilities strategically situated across the USA, we maintain an extensive inventory of more than 25,000 tons of top-grade materials kept ready in stock.
Reach out to us for a fast quote tailored to your requirement.
We supply these Titanium Gr 5 Bars in accordance with DIN, ISO, JIS or ANSI Standard.

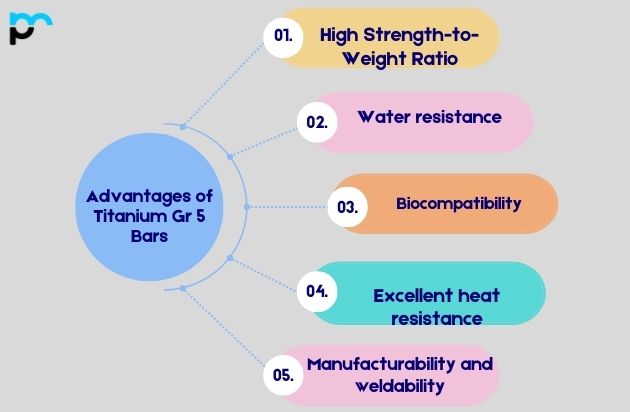

High Strength-to-Weight Ratio: Titanium Grade 5 offers a high strength-to-weight ratio, making it perfect for uses where strength matters but weight must be reduced. This characteristic allows inner components to remain lightweight while still being durable, which applies to aerospace, automotive, medical Implants, and many other applications aimed at cutting overall weight
Water resistance: Titanium Grade 5 delivers outstanding corrosion resistance, particularly in demanding environments like seawater or chemical processing. This resistance to corrosion guarantees product longevity and reliability even under tough conditions, lowering maintenance costs and boosting durability.
Biocompatibility: Titanium grade 5 is biocompatible, meaning it is non-toxic and well accepted by the human body. This quality makes it fitting for medical implants like orthopaedic implants, dental implants, and surgical devices, where biocompatibility is essential to guarantee compatibility with biological tissue and lower the occurrence risk.
Excellent heat resistance: Titanium Grade 5 keeps its strength and integrity even under high temperatures, roughly 400-500°C (752-932°F). This heat resistance makes it fitting for applications where high input temperatures are a concern, such as aerospace components, high-efficiency exhaust systems and gas turbine engines
Manufacturability and weldability: Titanium Grade 5 can be readily fabricated using conventional metalworking methods like machining, forming and welding. This permits complex architectural design, streamlines the design process and allows products to be tailored to specific requirements.
Titanium Gr 5 Bars applications are as varied as the industries they serve, driven mainly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Aerospace: Titanium Grade 5 poles see extensive use in aerospace applications thanks to their strength-to-weight ratio. They are employed in aircraft systems, engine components, landing gear, and other critical applications that demand weight savings and efficiency.
Medical implants: The biocompatibility of titanium makes it well suited for medical implants such as orthopaedic implants (e.g., hip stem, bone plate, screws), dental implants, and prosthetic devices. Class 5 titanium plates are frequently used to manufacture these implants because of their strength and corrosion resistance.
Marine Equipment: Titanium Grade 5 blades withstand seawater corrosion, which makes them perfect for marine use. They are applied in marine processors, submersibles, propeller shafts and other installations within harsh marine environments.
Automotive Industry: Titanium Grade 5 bands are applied in high-performance automotive parts where strength, light weight and corrosion resistance matter. They serve in exhaust systems, suspension components, valve springs, and other critical components.
Sports Equipment: The strength and light weight of titanium make it fitting for a range of sporting equipment, including bike frames, golf club heads, tennis rackets and high-performance race car parts
Chemical applications: Titanium grade 5 bars serve in chemical applications such as reactors, heat exchangers and piping systems owing to their outstanding corrosion resistance, particularly in acidic corrosive environments
Application Requirements: Learn about the applications in which the titanium wires will serve. Various applications might call for varying levels of strength, corrosion resistance, and other characteristics.
Titanium No. 5 (Ti-6Al-4V): Grade 5 titanium is the titanium alloy used most frequently. It delivers outstanding strength, corrosion resistance, and weldability. Verify that grade 5 titanium suits your particular application.
Size and Quantity: According to your project’s specifications, work out the size, thickness, and length of cable needed. Titanium rods are available in numerous shapes and sizes, such as round, square, and rectangular rods.
Quality and certification: Select titanium pads from trustworthy suppliers who provide quality certifications, like ASTM (American Society for Testing and Materials) standards. Confirm that the tapes satisfy the necessary industry standards for composition, mechanical properties, and quality.
Testing and inspection: Look into suppliers that thoroughly test and inspect titanium pads to guarantee compliance. Common tests involve ultrasonic testing, visual inspection, and chemical analysis.
Yes, Titanium Grade 5 (Ti-6Al-4V) bars work well for structural applications thanks to their high strength-to-weight ratio, outstanding corrosion resistance, and weldability. They see frequent use across the aerospace, marine, and automotive industries where structural components call for materials that are both lightweight and strong.
