Super Duplex Steel Sheet and Plates, specifically of grade S32760, are flat, slim materials made to order from Super Duplex stainless steel. Super Duplex stainless steel, a category within Duplex stainless steel, features an enhanced dual-phase microstructure defined by notably greater amounts of chromium, molybdenum, and nitrogen. This makeup improves its resistance to corrosion, strength, and longevity, rendering S32760 sheets/plates well-suited for challenging uses throughout a wide range of industries. Be it in aggressive chemical settings, marine conditions, or oil and gas activities, Super Duplex Steel S32760 distinguishes itself through its remarkable performance and dependability, delivering a sturdy answer to vital engineering demands.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
| Grades | Density (g/cm 3) | Density (l b/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32760 | 7.8 | 0.281 | 1350 | 2460 |
At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated across the USA, we maintain an extensive stock of more than 25,000 tons of top-quality materials kept ready in inventory.
Reach out to us for a fast quote on your requirement.
We supply these Super Duplex Steel Sheet and Plates S32760 conforming to DIN, ISO, JIS or ANSI Standard.

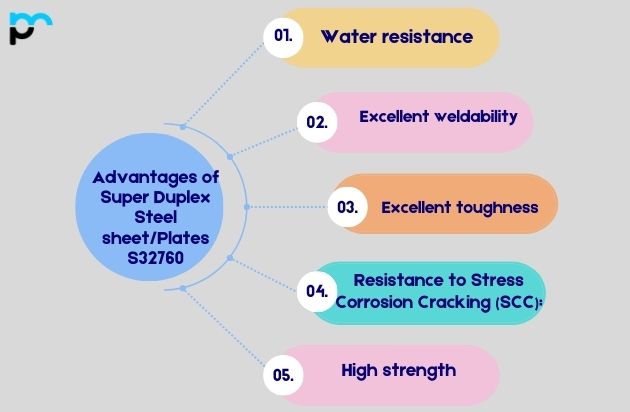

Water Resistance: Super Duplex Stainless Steel S32760 offers outstanding corrosion resistance across a wide range of environments, including those with chloride ions like seawater, which makes it well suited for marine and offshore uses
Excellent weldability: Even with its high alloy content, super duplex steel S32760 can be readily welded using conventional welding techniques, such as gas tungsten arc welding (GTAW) and shielded steel arc welding (SMAW), with high risk no welding-induced defects or corrosion or corrosion resistance.
Excellent toughness: Super Duplex Steel S32760 retains its mechanical properties at both high and low temperatures, delivering superior toughness and impact strength across a broad temperature range.
Resistance to Stress Corrosion Cracking (SCC): The blend of chromium, molybdenum and nitrogen in Super Duplex Steel S32760 delivers exceptional resistance to stress corrosion cracking, a frequent concern in high chloride environments
High strength: Super Duplex Steel S32760 possesses high tensile and yield strength when compared to conventional austenitic and duplex stainless steels. This strong stability enables the production of thinner and lighter components without compromising system integrity.
Super Duplex Steel Sheet and Plates S32760 are widely adopted throughout numerous industrial sectors thanks to their distinctive blend of outstanding corrosion resistance, high strength, and adaptability. Typical industrial applications include use in the oil and gas sector for offshore platforms, pipelines, and subsea equipment, where both corrosion resistance and strength are critical for enduring severe environments.
Oil and Gas Industry: Super-duplex steel finds broad use in the oil and gas sector for pipelines, subsea equipment, valves and specialized pumps. It offers strong corrosion resistance in harsh chloride and acidic air conditions, making it an ideal pick for these purposes.
Pulp and Paper Industry: Within the pulp and paper industry, super-duplex steel serves in equipment like digesters, bleachers, washers and piping systems, where it can resist chemical and high-temperature corrosion
Marine Applications: Super Duplex steel is applied in areas such as shipbuilding, offshore platforms and marine uses in ocean settings that call for resistance to corrosion and sediment
Desalination equipment: Because it resists chloride-induced stresses, cracks and pits, super-duplex steel is employed in desalination equipment, particularly in high-salinity regions
Chemical properties: The chemical characteristics of super duplex steel make it well suited for chemical applications such as tanks, reactors, heat exchangers and piping systems handling corrosive chemicals
Understand your application requirements: Determine the exact use case that requires super duplex steel. Take into account temperature, pressure, resistance to corrosion, and mechanical characteristics.
Mechanical properties: Examine devices in S32760, including power absorption, yield power, and pulse power. These characteristics need to align with what your application demands, such as structural integrity and load-carrying capacity.
Corrosion Resistance: Super Duplex steel is recognized for its outstanding resistance to corrosion, particularly in demanding environments that contain chloride ions. Make certain that S32760 provides the corrosion resistance your application calls for.
Check Materials: Confirm that S32760 Super Duplex Steel satisfies the material specifications your application requires. Such specifications might be ASTM standards or industry-specific requirements.
