| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
| Grades | Density (g/cm 3) | Density (l b/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32750 | 7.8 | 0.281 | 1350 | 2460 |
At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated in the USA, we maintain an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.
Reach out to us for a fast quote tailored to your requirement.
We supply these Super Duplex Steel Sheet and Plates S32760 conforming to DIN, ISO, JIS or ANSI Standard.

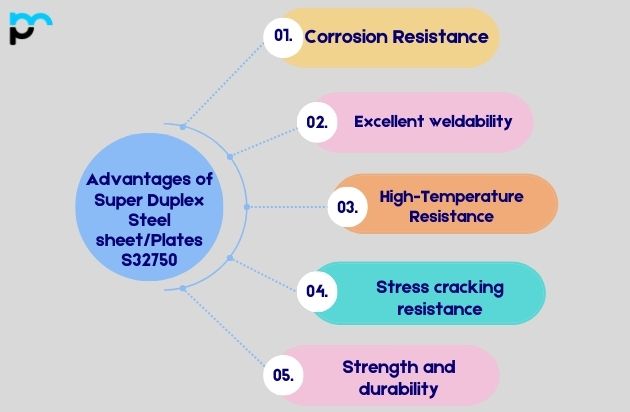

Corrosion Resistance: Super Duplex steel provides outstanding resistance to corrosion, particularly in demanding environments that contain chloride, acids and alkalis. This makes it well suited for offshore oil and gas installations, chemical plants and marine processes.
Excellent weldability: Even with its high alloy content, Super Duplex steel shows excellent weldability, which makes it easy to fabricate and install. This makes it a cost-effective approach to building complex structures and equipment.
High-Temperature Resistance: Super Duplex steel has high mechanical thermal conductivity, which makes it suitable for applications expected to encounter high temperatures
Stress cracking resistance: The mix of high chromium, molybdenum and nitrogen content in Super Duplex Steel delivers high resistance to stress cracking, making it suitable for use in areas where this type of corrosion is a troubling factor
Strength and durability: When compared to standard austenitic stainless steel, super-duplex steel offers greater strength and superior mechanical properties. This higher strength allows thinner materials to be used, cutting weight and costs while preserving system integrity.
Super Duplex Steel Sheet and Plates S32750 are widely used throughout industry in numerous sectors thanks to their distinctive blend of outstanding corrosion resistance, superior strength, and adaptability. Typical industrial applications encompass uses within the oil and gas sector for offshore rigs, pipelines, and subsea machinery, where strength and resistance to corrosion are vital for enduring severe conditions.
Oil and Gas Industry: Super duplex steel sheets and plates find extensive use in offshore oil and gas exploration and production. Owing to their corrosion resistance and strong mechanical properties in high chloride settings, they are employed in pipelines, offshore platforms, and available subsea equipment and functional units.
Marine Applications: Because they resist corrosion in the marine environment, super duplex steel sheets and plates serve shipbuilding, offshore structures, propeller shafts, valves and other marine equipment.
Pulp and Paper Industry: Within the pulp and paper industry, super-duplex steel is applied in washing and pulping–paper processing machines, where chemical resistance and elevated temperatures matter
Desalination equipment: Super duplex steel is the material of choice for desalination equipment that must withstand sea water corrosion. It appears in numerous applications, including evaporators, heat exchangers, and pumps.
Chemical agents: These materials serve chemical industries where resistance to chemical corrosion and high temperatures is needed. Uses can be found in reactors, heat exchangers, pressure vessels, and other corrosive handling devices.
Identify Application Requirements: Assess the working environment, covering factors like temperature, pressure, corrosion, and mechanical stress levels, in order to choose duplex steel sheets/plates capable of enduring these conditions.
Grade Selection: Pick the right duplex stainless steel grade according to the particular needs of your application. Widely used grades include duplex stainless steel UNS S31803, UNS S32205, and UNS S32750, with each providing varying degrees of corrosion resistance, strength, and additional properties.
Corrosion Resistance: Assess how well the duplex steel sheets/plates resist corrosion when exposed to the specific corrosive substances found in your application, such as acids, alkalis, chlorides, and seawater, so as to guarantee lasting performance and durability.
Mechanical Properties: Take into account the mechanical characteristics of the duplex steel sheets/plates, such as tensile strength, yield strength, elongation, and hardness, to confirm they satisfy the mechanical demands of your application.
Size and Thickness: Pick duplex steel Sheet and Plates with the right size and thickness to suit your application needs, taking into account aspects like load-bearing capacity, dimensional tolerances, and available space.
