Home > Super Duplex Steel > Super Duplex Steel Forged Fittings S32760
| Specifications | ASTM A182 & ASME SA182 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Standards | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socketweld Fittings |
| Grades | S32750 / S32760/ S32950 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Cu |
| S32760 | 0.030max | 1.20 max | 0.80 max | 0.035max | 0.020 max | 24.0-26.0 | 3.0-5.0 | 6.0-8.0 | 0.24/0.32 | 0.50 |
| Grades | Density (g/cm 3) | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| S32760 | 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15% |
At Sumakhsteel, we are proud to be the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. Backed by cutting-edge manufacturing facilities strategically situated in the USA, we hold an extensive stock of more than 25,000 tons of top-grade materials ready and available on hand.
Reach out to us for a fast quote tailored to your requirement.
We provide these Super Duplex Steel Forged Fittings S32760 conforming to DIN, ISO, JIS or ANSI Standard.

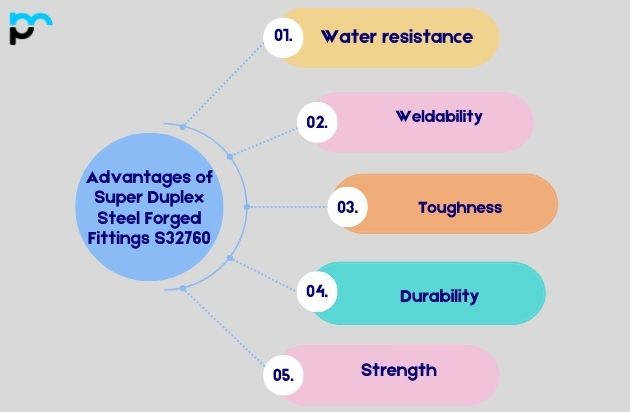

Water resistance: The super duplex steel S32760 offers outstanding corrosion resistance in aggressive conditions, particularly where chlorides, acids and sea water are present. This makes it well suited for use in marine settings, chemical plants and offshore oil and gas platforms.
Weldability: Even with its high toughness and corrosion resistance, super duplex steel can generally be welded using standard welding methods. This eases construction and maintenance work, giving flexibility in both design and fabrication.
Toughness: Super Duplex steel holds onto its mechanical properties even at low temperatures, which matters for use in cryogenic settings or wherever abrupt temperature shifts occur
Durability: Pairing high corrosion resistance with solid strength enables long service life, cutting down the need for maintenance and replacement. This can lead to substantial cost savings across the lifespan of the equipment or building . . . .
Strength: Super duplex steel is stronger than ordinary austenite or stainless steel. This added robustness makes it possible to adopt smaller, more economical designs without compromising structural integrity, rendering them suitable for higher pressures and temperatures.
Super Duplex Steel Forged Fittings S32760 have uses as varied as the sectors they cater to, led mainly by the aerospace, railway, construction and automotive sectors along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Oil and Gas Industry: Super-duplex steel meshed fittings see broad use across offshore and onshore applications within the oil and gas sector. They withstand corrosion, erosion, and hydrogen sulfide (H2S) cracking, which makes them valuable for pipelines, PO under equipment, and processing. And suitable for units
Pulp & Paper Industry: In applications that involve handling bleaching chemicals, acids, and other corrosive substances, super duplex steel lattice fittings deliver corrosion resistance and stress cracking resistance. They are frequently used in pulp, paper, and chemical recovery plants.
Desalination equipment: Super duplex steel fittings serve in desalination equipment that consumes and treats seawater. Their outstanding corrosion resistance keeps them durable and reliable in marine environments.
Chemical Applications: Within the chemical industry, where aggressive chemicals and corrosive environments are common, S32760 mesh fittings are favored for their high corrosion and pitting resistance. They appear in reactors, vessels, and pipeline systems for handling acids, bases, and other chemical complexes.
Material Properties: Super Duplex Steel S32760 provides outstanding resistance to corrosion, strong mechanical characteristics, and exceptional strength and hardness. Be sure these attributes align with what your application demands.
Size and Dimensions: Select fittings that correspond to the size and thickness needs of your piping system. Verify their compatibility with other parts to avoid leaks or failures.
Pressure and Temperature Check: Review the pressure and temperature ratings of the fittings to confirm they can handle your system’s operating conditions without failing.
Corrosion Resistance: Assess the corrosion resistance of the S32760 fittings, particularly under the specific conditions in which they will operate. Consider factors such as temperature, pH, and the presence of degradation products.
Standards Compliance: Verify that the fitting complies with relevant industry standards, such as ASTM, ASME, or EN standards, to guarantee quality and compatibility with other materials.
