Home > Stainless Steel > Stainless Steel 309 Bars
Specifications : ASTM A276, ASME SA276 / ASTM A479 ASME SA479

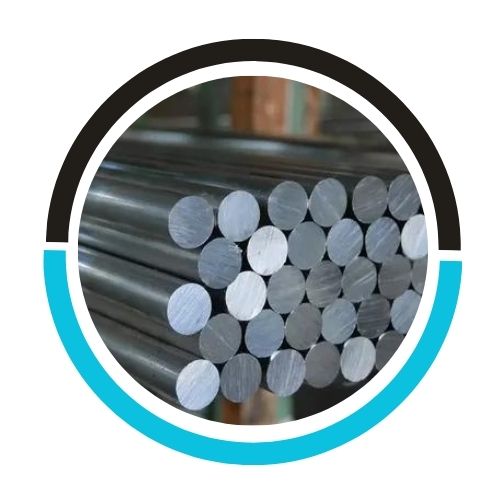

Round Bars : Outside Diameter ranging from 4mm to 500mm

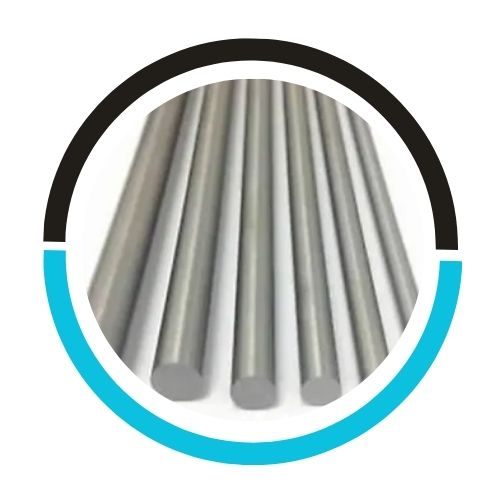

Bright Bars : Outside Diameter ranging from 4mm to 100mm
Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle, and more

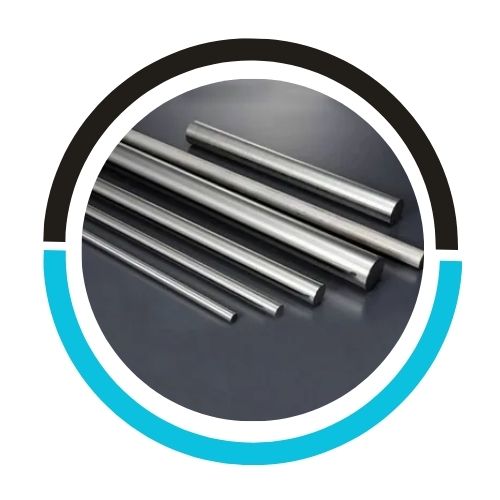

Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 309/309s | 515 | 205 | 40% | 85 | 147 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 309 | 0.10 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 10.5 | – |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated across the USA, we maintain an extensive stock of more than 25,000 tons of top-grade materials kept ready in inventory.
Reach out to us for a fast quote tailored to your requirement.
We supply these Stainless Steel 309 Bars conforming to DIN, ISO, JIS or ANSI Standard.

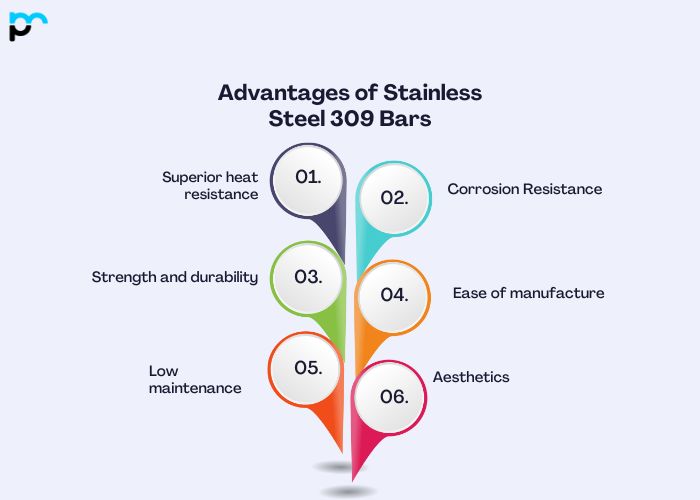

Superior heat resistance: Stainless steel 309 strips are able to endure elevated temperatures, which makes them appropriate for applications in high-heat settings like furnaces, heating equipment and air filters
Corrosion Resistance: These rods hold up against corrosion, particularly in oxidizing conditions. This qualifies them for use in the chemical and petrochemical sectors, where chemical acids and salts are frequently found in the chemical and petrochemical sectors.
Strength and durability: Stainless steel 309 frames demonstrate outstanding strength and longevity, enabling them to bear heavy loads and harsh conditions without harm or structural damage
Ease of manufacture: It is fairly straightforward, permitting a range of processes such as cutting, welding and fabrication. This enables broad adoption across industries.
Low maintenance: The stainless steel 309 bar calls for little maintenance thanks to its resistance to corrosion and staining. These qualities help lower downtime and maintenance expenses, leading to reduced costs over the long term.
Aesthetics: They feature a shiny finish, making them well suited for architectural decoration alongside industrial uses
Stainless Steel 309 Bars serve applications as varied as the industries that use them, led chiefly by the aerospace, railway, construction and automotive sectors along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
High-temperature application: Stainless steel 309 bar performs exceptionally well in high-heat conditions. It finds frequent use in furnace components, heat exchangers, annealing covers and radiation tubes owing to its ability to withstand temperatures reaching 2000°F (1093°C).
Chemical applications: The resistance of 309 stainless steel makes it well-suited for chemical uses like reactors, piping and tanks where chemical corrosion frequently occurs
Heating Equipment: Thanks to its outstanding resistance to oxidation and scaling at high temperatures, 309 stainless steel plates serve in heating ovens, trays and fixtures
Welding applications: These tapes are frequently employed as filler materials in welding because they work well with numerous welding methods including arc welding, resistance welding and brazing
