Monel 400 Forgings Manufacturer and Supplier in California, USA

Monel 400 Forgings Supplier in Texas, Monel 400 Forgings Manufacturer in California, Monel 400 Forgings Exporter in New York, Monel 400 Forgings Manufacturer and Supplier in California, USA

Our firm supplies an extensive selection of Monel 400 Forgings procured from reliable vendors well known for their proficiency in high-performance alloys. These forgings are customized to satisfy varied industry needs, delivering flexibility across size, grades, and standards. Commonly employed in fields such as oil and gas, marine, and chemical processing, Monel 400 Forgings are valued for their outstanding resistance to corrosion and erosion. With a sturdy microstructure, these forgings offer superb strength and longevity, guaranteeing uniform mechanical properties across the entire forged structure.

Monel 400 Forging Specifications

Specifications	DIN 17752, AMS 4675
Monel 400 ASTM Standard for Forging	ASTM B564, ASME SB564
Flat bar blocks	up to 27″ width and 15,000 lbs
Cylinders and sleeves	up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs	up to 50″ diameter and 20,000 lbs
Rolled, hand forged or mandrel forged rings	up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts	up to 144″ maximum length and 20,000 lbs
Forging Types	Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging.

Monel 400 Forgings Chemical Composition

Grade	Ni	C	Al	Mn	Si	Fe	Cu	S
Monel 400	63.0 min	0.3 max	0.50 max	2.0 max	0.5 max	1.0 – 2.5	28.0 – 34.0	0.02 max

Monel 400 Forgings Mechanical Properties

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.8 g/cm3	1350 °C (2460 °F)	Psi – 35,000 , MPa – 240	Psi – 80,000 , MPa – 550	40 %

Monel 400 Forgings Supplier in Texas, Monel UNS N04400 Forgings Manufacturer in USA, Monel 400 Forgings USA

Top Monel 400 Forgings Manufacturing Company in California

At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge production facilities strategically situated in the USA, we maintain an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.

Reach out to us for a fast quote tailored to your requirement.

We supply these Monel 400 Forgings in accordance with DIN, ISO, JIS or ANSI Standard.

ASTM B564 Monel 400 Forgings Supplier in Texas, Monel Forgings Exporter in California, Monel 400 Forgings USA

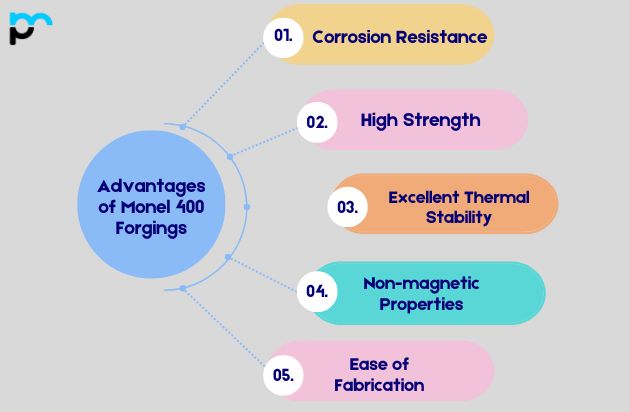

Advantages of Monel 400 Forgings

Corrosion Resistance: Monel 400 forgings provide outstanding corrosion resistance across a range of environments, including seawater and acidic conditions. This quality makes them perfect for marine and chemical processing uses where corrosion poses a challenge.
High Strength: These forgings display high strength and toughness over a broad temperature span, making them well-suited for demanding structural uses in both high and low temperatures.
Excellent Thermal Stability: Monel 400 retains its mechanical properties even at elevated temperatures, ensuring dependability and performance under thermal stress conditions.
Non-magnetic Properties: Monel 400 forgings are non-magnetic, which proves beneficial in applications where magnetic interference is unwanted, such as in electronic and medical equipment.
Ease of Fabrication: They are fairly simple to form, weld, and machine, permitting complex shapes and precise components to be produced efficiently. This ease of fabrication adds to their widespread adoption across numerous industries.

Types of Monel 400 Forgings

Monel 400 Forgings USA, Monel 400 Forgings Supplier in California, Monel 400 Forgings Price List in Texas, USA

Monel 400 Forgings Uses

Application Industry

Monel 400 Forgings serve applications as varied as the industries that rely on them, led chiefly by the aerospace, railway, construction and automotive sectors along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Automotive Industry

Construction Sector

Aerospace Applications

Oil and Gas Industry

Marine Industry: Monel 400 forgings are perfect for marine use thanks to their outstanding resistance to corrosion from seawater and saltwater. They serve in propeller shafts, seawater valves, pump shafts, and underwater fasteners.
Oil and Gas Industry: Within this industry, Monel 400 forgings are put to work in essential parts such as pump shafts, valve stems, and machinery exposed to corrosive settings where withstanding sulfuric and hydrochloric acids is vital.
Chemical Processing: Monel 400 forgings are applied in chemical plants to withstand a broad variety of corrosive chemicals. They serve in pumps, valves, fittings, and heat exchangers.
Aerospace Industry: Owing to their high strength and superb thermal conductivity, Monel 400 forgings are applied in aerospace uses such as aircraft fuel tanks, structural components, and fasteners.
Power Generation: Monel 400 forgings are used in power plants, particularly in parts exposed to seawater and steam conditions. They serve in turbine blades, steam turbine exhaust systems, and heat exchangers.

How to Choose the Right Monel 400 Forgings

Corrosion Resistance: Monel 400 is widely recognized for its outstanding resistance to corrosion across a range of settings, such as seawater and chemical processing. Make sure the forgings you select are appropriate for the corrosive conditions they will encounter.
Mechanical Properties: Assess the mechanical characteristics like tensile strength, yield strength, and elongation. Monel 400 forgings generally provide solid mechanical properties, which makes them well-suited for applications demanding strength and toughness.
Temperature Resistance: Monel 400 retains its characteristics at high temperatures, which makes it appropriate for high-temperature uses. Please confirm that the forgings can endure the temperatures they will face in service.
Compatibility: Verify compatibility with the other materials and environments in which the forgings will be applied. Monel 400 works well with numerous metals and alloys, though certain applications might call for extra considerations.
Size and Dimensions: Take into account the size and dimensions of the forgings needed for your application. Monel 400 forgings come in a variety of shapes and sizes, such as bars, sheets, plates, and custom shapes.

Are Monel 400 Forgings Suitable For High-Temperature Applications?

Monel 400 Forgings are typically not advised for high-temperature use exceeding 600°C (1100°F) because of possible embrittlement and degradation of mechanical properties at raised temperatures. Under these circumstances, alloys such as Inconel or Hastelloy are better choices owing to their outstanding high-temperature capabilities.

FAQ (Frequently Asked Questions)

What Are The Considerations For Selecting Monel 400 Forgings?

Choosing Monel 400 Forgings means benefiting from their outstanding corrosion resistance across a range of environments, such as seawater and acidic settings. Additionally, their notable strength, durability, and ability to resist stress corrosion cracking make them well suited for marine and chemical processing uses.

Do Monel 400 Forgings Require Corrosion Protection Coatings?

Monel 400 Forgings generally don’t need corrosion protection coatings because of their built-in corrosion resistance, particularly in marine and acidic settings. That said, coatings might be worth considering for certain applications that call for extra defense against aggressive chemicals or abrasion.

How Do I Select The Right Monel 400 Forgings For My Application?

Choose Monel 400 Forgings according to the particular needs of your application, paying attention to aspects like corrosion resistance, mechanical strength, temperature stability, and suitability for the working environment (e.g., marine, chemical processing).
