Duplex Steel S32205 Pipes Duplex Steel S32205 Pipes stand for the promise of reliability and performance in tough industrial environments. Made to order from duplex stainless steel, these pipes smoothly combine the sturdy qualities of both austenitic and ferritic structures. This blend gives S32205 pipes remarkable strength and corrosion resistance, rendering them indispensable in fields such as chemical processing, oil and gas exploration, and marine engineering. Renowned for their longevity, outstanding tensile strength, and powerful resistance to pitting and crevice corrosion, Duplex Steel S32205 Pipes deliver a dependable answer for vital applications running in severe and corrosive conditions.
| Standard | ASTM A790 / ASME SA790 UNS S31803, S32205, S32550, S32750, S32760 |
| Materials | ASTM A815 – UNS S32205 |
| Size | 1/2″NB TO 12 “NB IN |
| Seamless Pipes & Tubes Sizes | 1/2” NB – 8” NB |
| Welded Pipes & Tubes Sizes | 6” NB – 24” NB |
| Thickness | 0.5-45mm |
| Outer Diameter | 6.0-630mm |
| Dimensions | OD(6.0-630)*WT(0.5-45)mm |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80 |
| Type | Welded / Fabricated / Seamless |
| Length | Single Random, Double Random & Cut Length. |
| Ni | Cr | Mo | Mn | Si | C | N | S | P | Fe | |
| MIN | 4.5 | 22.0 | 3.0 | – | – | – | 0.14 | – | – | – |
| MAX | 6.5 | 23.0 | 3.5 | 2.0 | 1.0 | 0.03 | 0.2 | 0.02 | 0.03 | Balance |
S32205 | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated in the USA, we hold an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.
Reach out to us to receive a fast quote for your needs.
These Duplex Steel S32205 Pipe are supplied by us in accordance with DIN, ISO, JIS or ANSI Standard.

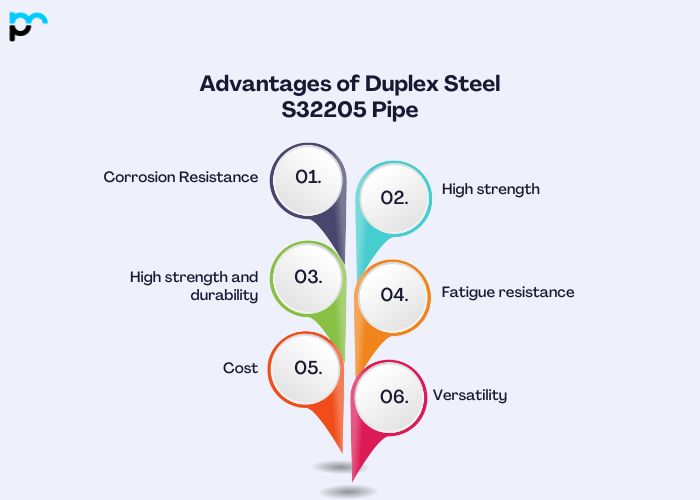

Corrosion Resistance: Duplex steel S32205 pipe offers outstanding resistance to corrosion, particularly in aggressive settings that contain chloride ions. Because of this resistance, it works well in sectors like chemical processing, marine applications and oil and gas production.
High strength: Compared with austenitic and ferritic stainless steel, S32205 duplex steel offers greater strength. This strength permits thinner walls, which lowers weight and cost while enhancing structural integrity.
High strength and durability: Duplex steel S32205 delivers considerable strength and durability, enabling it to bear applied loads and abrupt temperature shifts without failing. This characteristic makes it well suited to high-pressure and high-temperature conditions.
Fatigue resistance: Duplex steel S32205 pipe offers greater fatigue resistance than ordinary austenitic steel, which makes it fitting for uses where cyclic loading matters, such as offshore structures and pipe systems.
Cost: Although bimetallic S32205 may cost more at the outset than austenitic stainless steel, its better mechanical properties and corrosion resistance generally lead to long-term cost savings from maintenance, over time thanks to lower operating costs and replacement costs
Versatility: Duplex steel S32205 pipe is adaptable and can be readily fabricated, welded and machined, permitting customization to satisfy the requirements of particular projects. It is available in various sizes and shapes to fit different applications.
Duplex Steel S32205 Pipes serve applications as varied as the industries they support, driven mainly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Oil and Gas Industry: Duplex steel S32205 pipes see extensive use in the oil and gas sector for carrying hot fluids such as crude oil, natural gas, and acid gas. Thanks to their excellent corrosion resistance and strength, they are perfectly suited for both offshore and onshore uses.
Chemical applications: These pipes are employed in chemical manufacturing facilities that demand corrosion resistance. Because they withstand a range of chemical corrosion and severe environmental conditions, they work well for chemical processing, heat exchangers, and storage purposes.
Desalination Equipment: Duplex steel S32205 pipe is frequently applied in desalination equipment for seawater intake and brine injection systems. Their resistance to chloride-induced stress corrosion cracking (SCC) and pitting corrosion makes them well-suited to these demanding environments.
Pulp and Paper Industry: Duplex steel S32205 pipe serves the pulp and paper industry for conveying volatile chemicals, detergents, and process water. It delivers corrosion resistance and an extended service life for piping systems.
Water treatment: Duplex steel S32205 pipe is used in water treatment to carry corrosive water and the chemicals involved in the water treatment process. They offer outstanding resistance to pitting, crevice corrosion, and chloride stress corrosion cracking in high chloride environments.
Materials: Duplex steel S32205 is a widely used grade recognized for its resistance to corrosion and its high strength. Confirm that it satisfies the temperature, pressure, and environmental corrosion demands of your application.
Size and Dimensions: Defines the necessary pipe size and dimensions according to application and system needs. Take into account factors like inside diameter, outside diameter, and wall thickness.
Performance Conditions: Identify the operating conditions of your application, such as temperature, pressure, and the kind of liquid or air being transported. Duplex steel S32205 delivers outstanding performance across many environments, but make sure it aligns with your particular conditions.
Corrosion resistance: Duplex steel S32205 provides outstanding corrosion resistance, making the oil appropriate for a range of applications including gas, chemical processing, marine applications, etc. Confirm that its corrosion resistance fits the requirements of your application role.
Construction requirements: Take into account pipe fabrication needs such as welding, bending and machining. Duplex steel S32205 offers outstanding weldability and formability, but it is essential to verify that it satisfies your fabrication requirements.
Certifications and Standards: Verify that the duplex steel S32205 pipe complies with the relevant industry standards and certifications, such as ASTM, ASME, and ISO. Compliance with standards guarantees dependable quality and dependable performance.
